Xerox Phaser 6000 Service Manual

2-78 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Theory of Operation

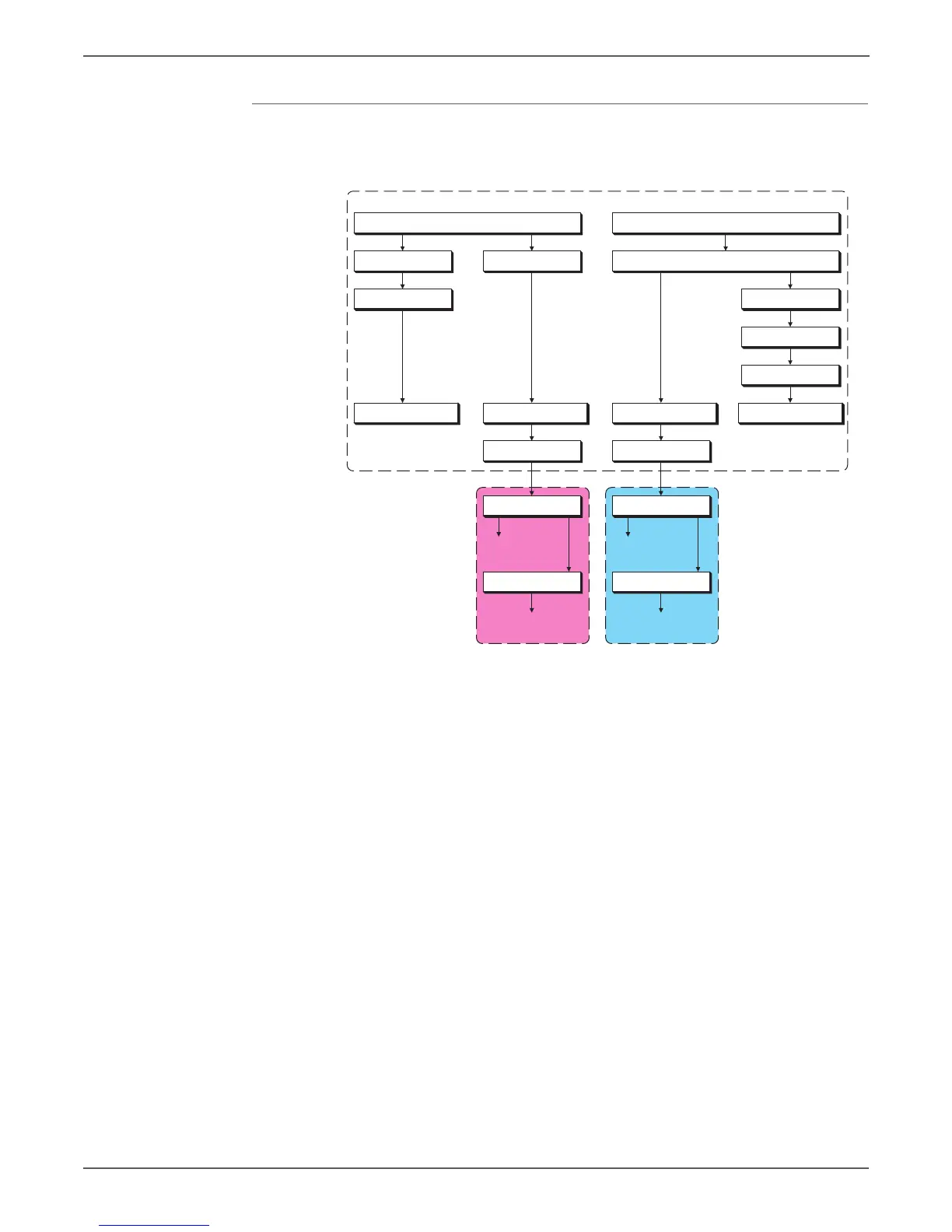

Toner Dispenser M and C Drive Flow
Dispenser
Dispense Motor (Y), (M)
Dispense Motor (C), (K)
Idler Gear 23 (M) Idler Gear 23 (C)
s6000-135
[ Name Of Moving Parts ]
[ Dispense
Auger (M) ]
[ Dispense
Auger (C) ]
[ Cartridge Auger (M) ]
Toner Cartridge (M)
[ Cartridge Auger (C) ]
Toner Cartridge (C)
Idler Gear 34
Idler Gear 34
Idler Gear 34
Idler Gear 34
Idler Gear 34
Idler Gear 34
Idler Gear 34
Oneway Clutch (Y) Oneway Clutch (M) Oneway Clutch (C) Oneway Clutch (K)
Auger Gear (M) Auger Gear (C)
Auger Gear (M) Auger Gear (C)
