Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 2-69
Theory of Operation

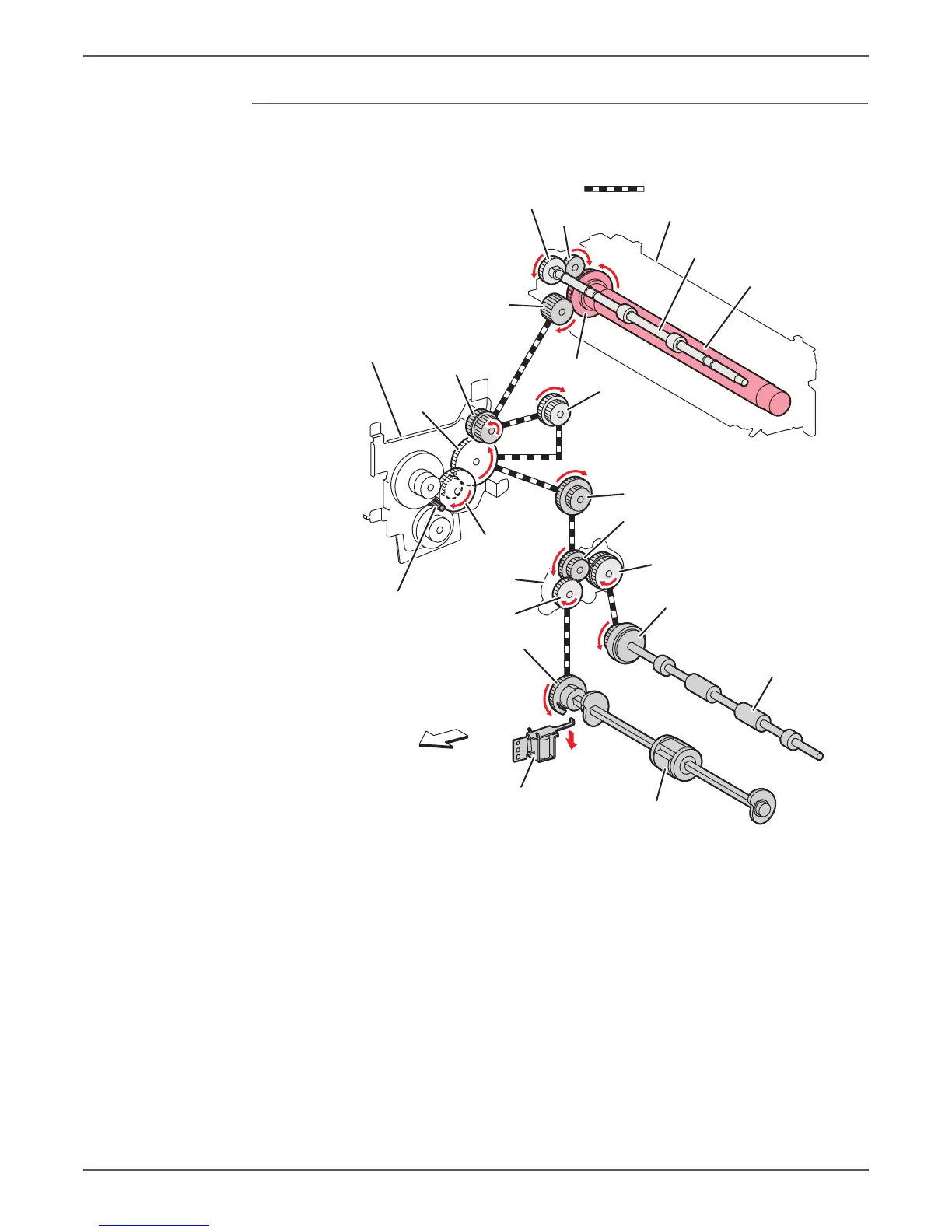

Paper Feed Drive Components
s6000-126
Front
: Indicates The Engagement Of Gears
[ Name Of Moving Parts ]
Motor Drive
Main Motor
Gear PF1
Gear PF2
Heat Roller Gear
Heat Roller Idler Gear
[ Heat Roller ]
Registration Clutch
Gear PH6
MPT Feed Solenoid
Gear PH5
[ Exit Roller ]
Exit Idler Gear
Exit Gear
[ Feed Roller ]
[ Registration Roller ]
Feed Gear
Gear PH3
Gear F4
PH Drive
Gear PH4
Gear F3
Fuser
