Xerox Phaser 6000 Service Manual

Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 2-73
Theory of Operation

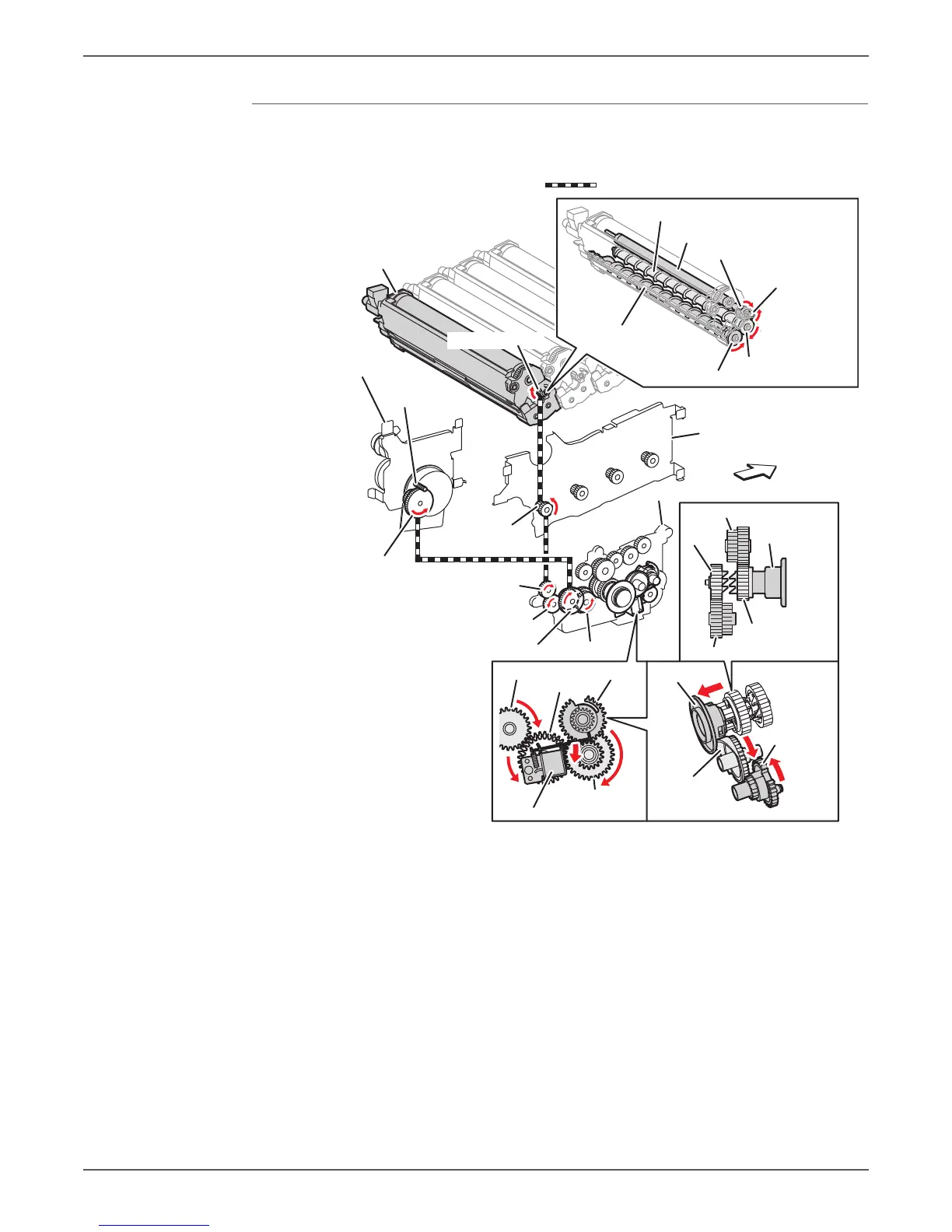

B/W Mode Development Drive Components
s6000-130
Front
: Indicates The Engagement Of Gears.
[ Name Of Moving Parts ]
Motor Drive
Main Motor
Gear D1
Gear D2
Magnet Gear (K)
Xerographic
Developer (K)
Gear D6 (K)
MU Drive
Developer Drive
Idler Gear D2
Idler Gear D1
Gear D3C
Magnet Gear (K)
[ Magnet Roll (K) ]
[ Auger Supply (K) ]
[ Auger Admix (K) ]
Gear D4 In
Gear Dk1
Switching Solenoid
Gear DK2
Gear C
Gear Cam
Flange D4
Gear C
Gear D3C
Gear D5
Flange D4
Gear
D4 In
Gear D4 Out
Magnet Idler
Gear (K)
Gear Auger Admix (K)
Gear Auger (K)
