4-22 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Troubleshooting
Color Mode Sensor
1. Remove the Left Side Cover and main paper tray harness guide.
2. Enter Service Diagnostics (page 4-11).
3. Run the K Mode test: Engine Diag > Sensor Test > K Mode Sensor.
4. Operate the actuator to check sensor function.
5. Confirm the number shown on the display increases every time the actuator is
operated.
6. Press the Cancel button to stop the test.
7. Replace the main paper tray harness guide and Left Side Cover.

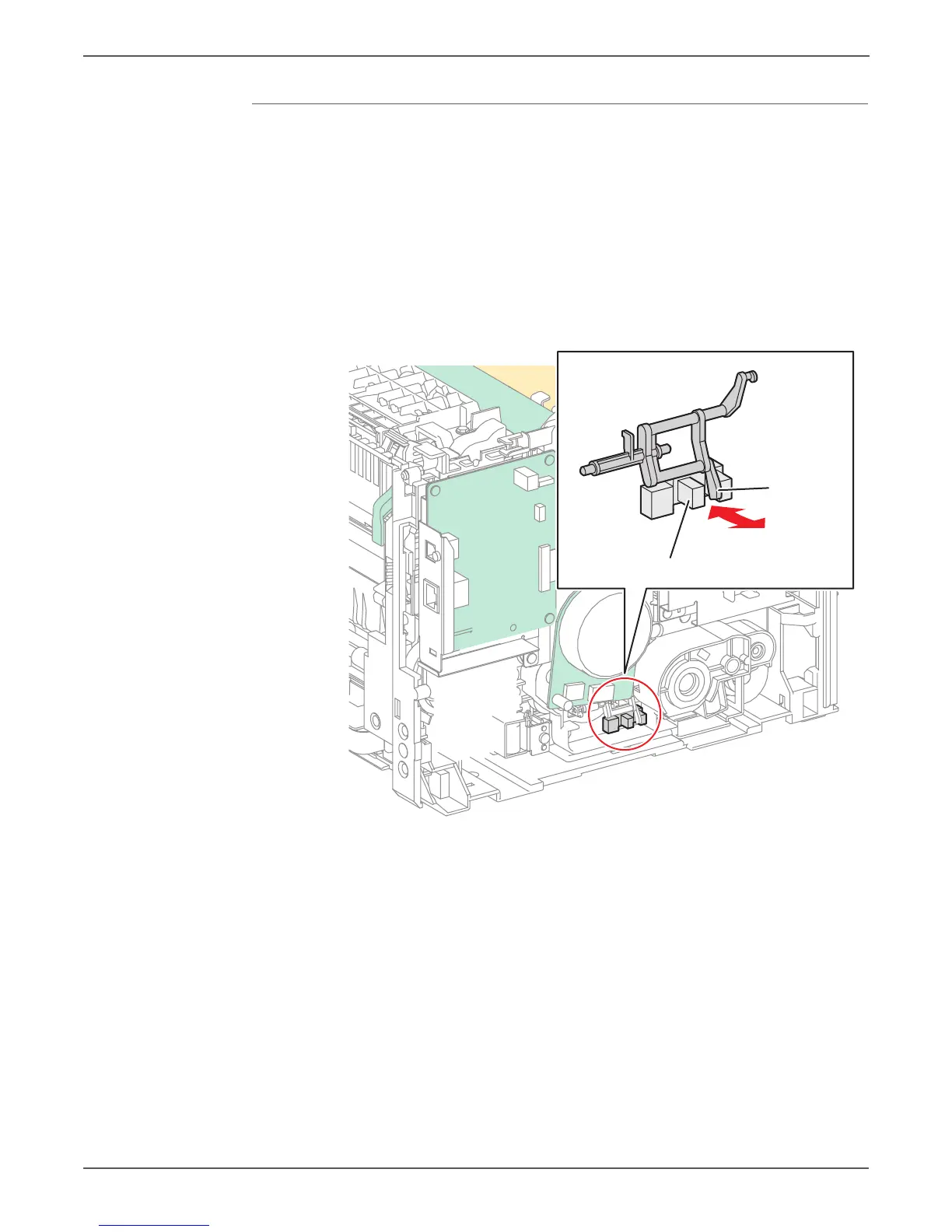

s6000-142
K Mode Switching Sensor
Actuator
To Next Page
