5-44 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Image Quality

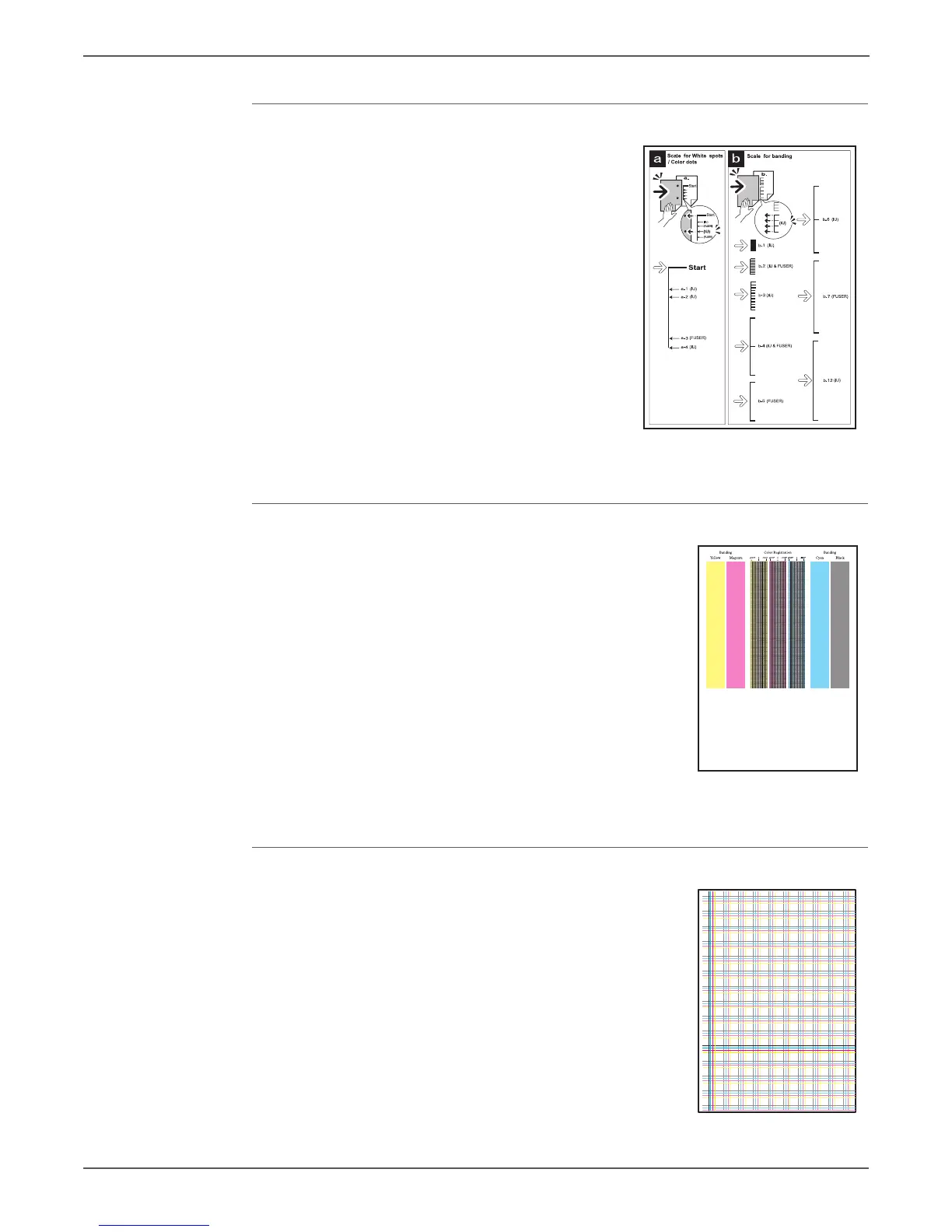

Pitch Configuration Chart
Print these charts to check for any regular
lines or toner spots when encountering PQ
problems.
From the difference in the interval of regular
lines or spots, you can determine the parts
that have caused the trouble.
MQ Chart Test Print
Prints charts to check for binding in A4 or Letter.
When the PQ problem occurred, this test helps to
identify the problem as printer related or otherwise.
TestPatASIC[IOT] Test Print
Prints the LED Driver Board built-in test pattern.
If the pattern does not print correctly, check the LED
Driver board. If the pattern prints OK, check the
Image Processor Board.
Pitch Chart Test Print

s6000-199
s6000-187
