Image Quality

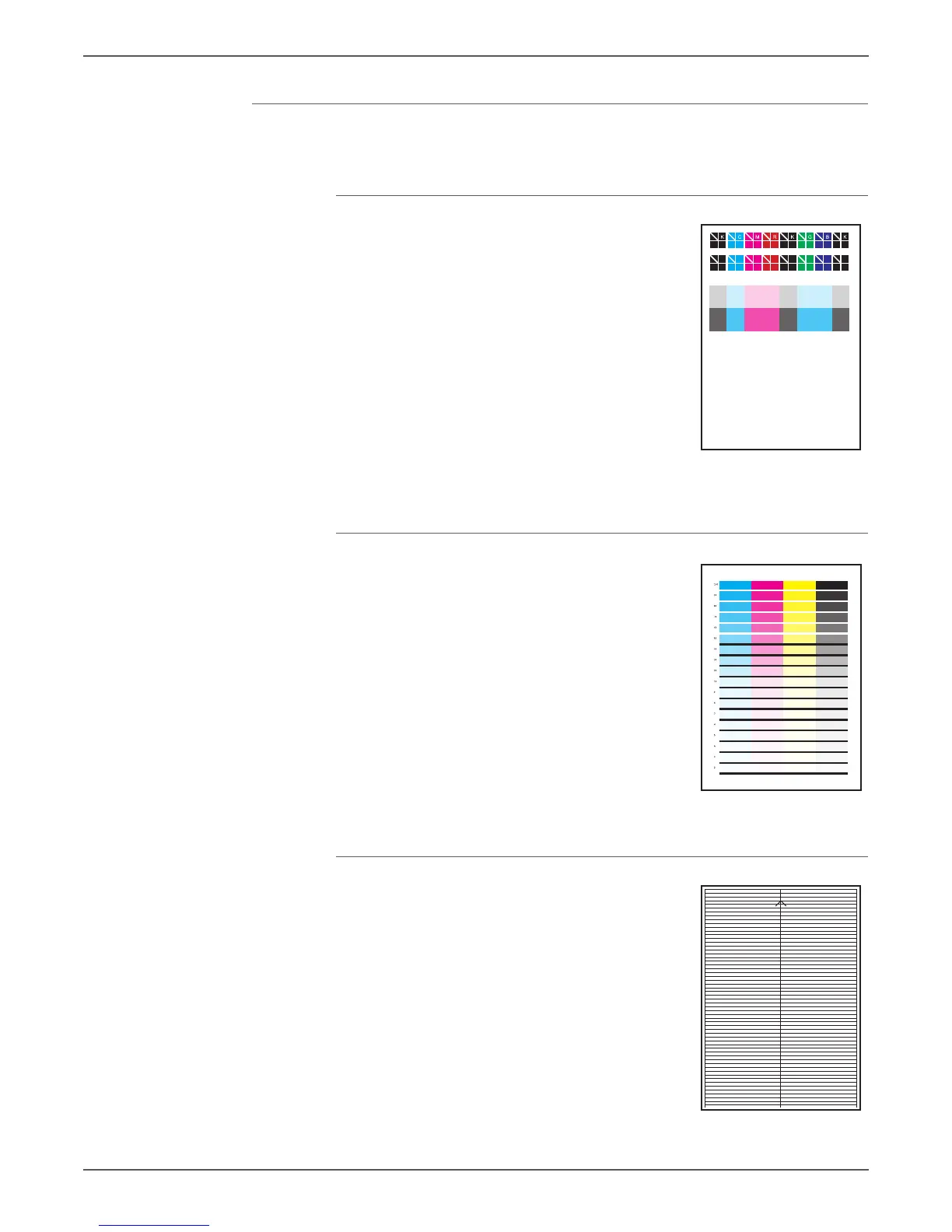

Additional Test Charts
Additional test charts can be found on the Diagnosis tab of the CE Diags tool.
Ghost Configuration Chart
This print allows you to check for image ghosting.
When a ghost occurs, the patches broken into two
triangles and the K/B/G/R/M/C characters appear on
the light-colored patches K/C/M in the lower half of
the chart, and the patches with triangles only
appears on the dark-colored patches K/C/M below
the light-colored patches.
• Fail: Characters repeat in the light area.
• Pass: Characters are not visible in the light area.
4 Colors Configuration Chart
This test print provides 2 - 100% density for Cyan,
Magenta, Yellow, or Black on the whole page. This
test is used to identify problems with the printer
function or the Image Processor Board. Compare the
print with this example to determine the problem.
• Fail: Check the printer function.
• Pass: Check the Image Processor Board.
Alignment Chart
This chart allows you to check for media skew. When
the sheet is fed normally, the vertical and horizontal
lines are aligned parallel to the edges of the sheet.
When there is a problem, alignment is skewed.
• Fail: Perform the Skew troubleshooting procedure
(page 5-32).
• Pass: Lines are parallel to the edges of the sheet.
