8-38 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Service Parts Disassembly

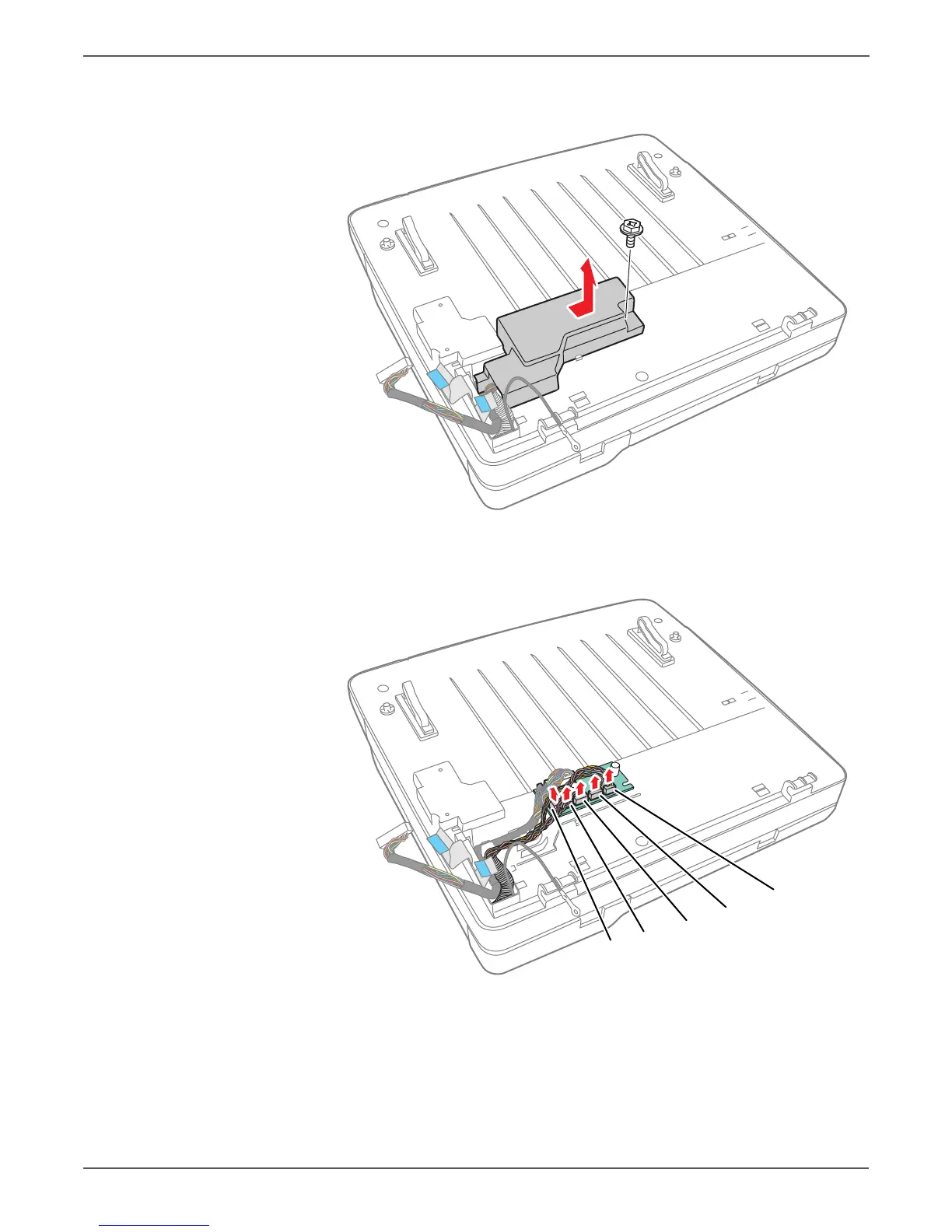

9. Remove 1 screw (silver, with flange, tap, 6 mm) and remove the SSB Cover.
10. Disconnect P/J3, P/J4, P/J5, P/J8, and P/J10 on the IIT Board, and release the
harness from the harness guide.
11. Turn the scanner over, and then open the ADF Assembly.
12. Lift the ADF Assembly, and release the hook of the ADF Hinge Assembly using
a screwdriver. Remove the ADF Assembly from the IIT Assembly, and pull the
harness through the hole in the IIT Assembly.
s6015-098
P/J3
P/J5
P/J4
P/J10
P/J8
To Next Page
