Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 8-51
Service Parts Disassembly

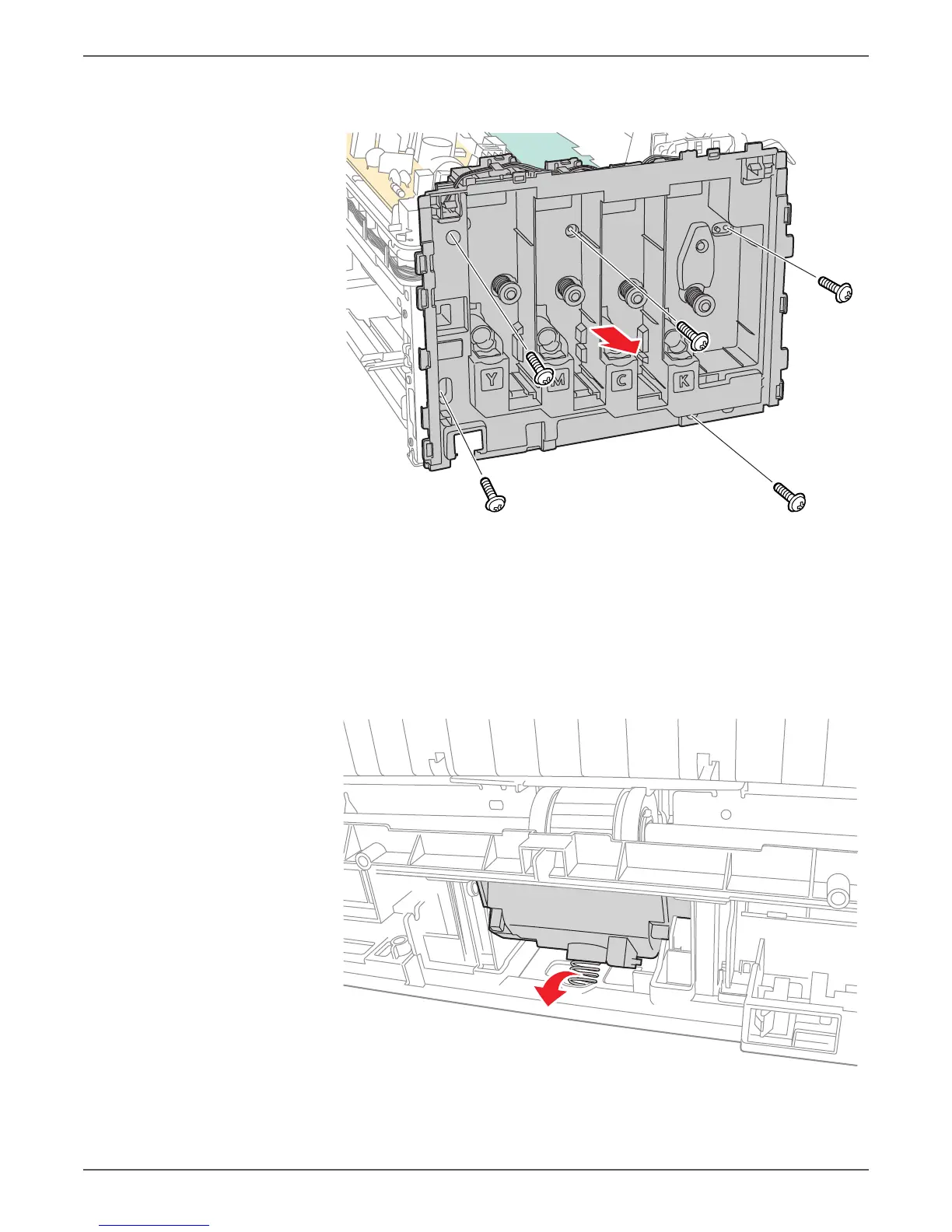

12. Remove the 5 screws (silver, tap, 8 mm), and remove the toner dispense frame
from the printer.
13. Remove the Image Processor Board (page 8-114).
14. Remove the Feed Drive Assembly (page 8-91).
15. Remove the Registration Clutch (page 8-66).
16. Remove the Registration Roller (page 8-61).
17. Remove the Main Paper Tray Chute (page 8-64).
18. Remove the Registration Actuator (page 8-67).
19. Release the Separator Spring.
s6000-039
s6000-067
