Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 8-59
Service Parts Disassembly

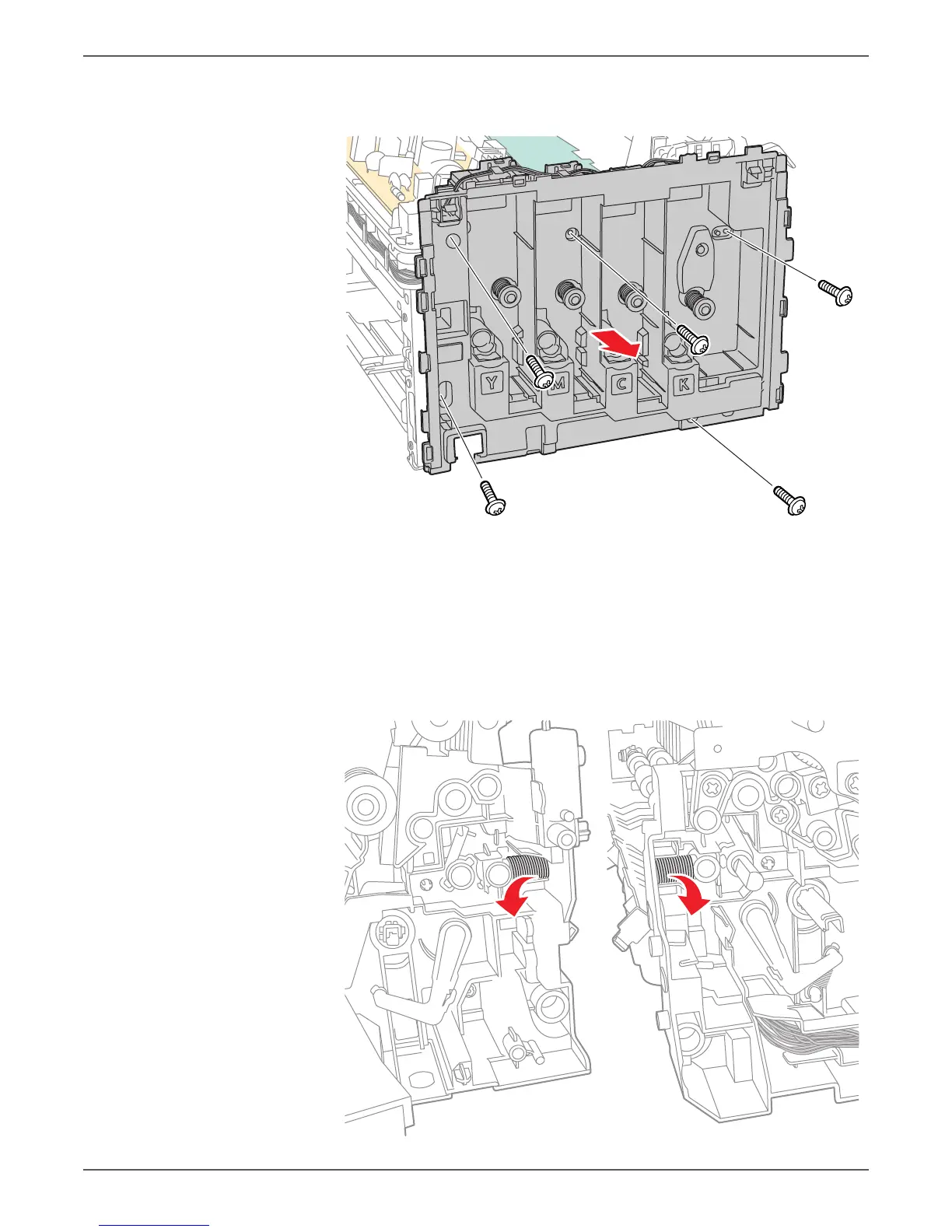

11. Remove the 5 screws (silver, tap, 8 mm), and remove the toner dispense frame
from the printer.
12. Remove the Image Processor Board (page 8-114).
13. Remove the Feed Drive Assembly (page 8-91).
14. Remove the Registration Clutch (page 8-66).
Note
Steps 15 and 16 apply to the bearings on both the left and right side.
15. Remove the Registration Spring.
s6000-039
s6000-092
