Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 8-97
Service Parts Disassembly

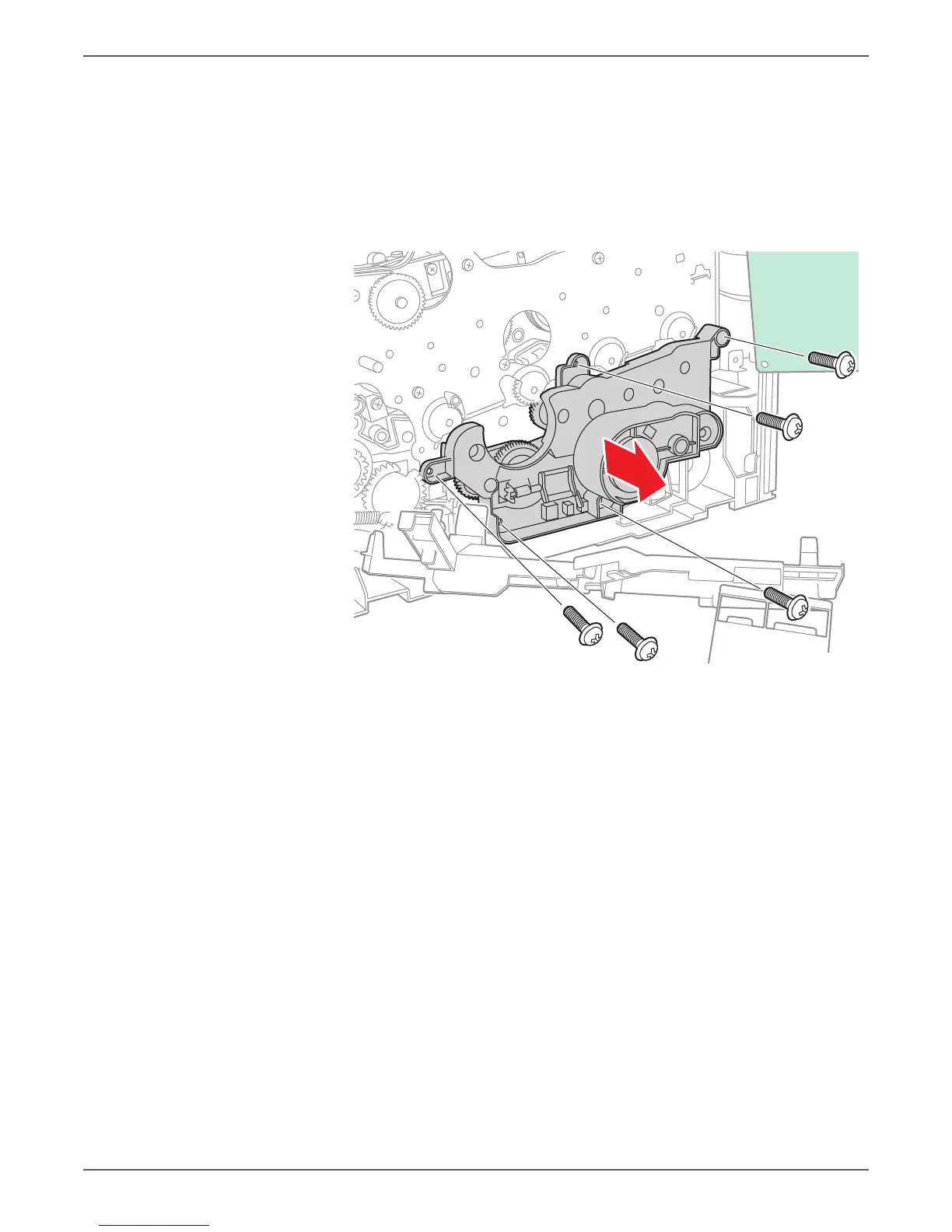

12. Remove 3 screws (silver, M4, 6 mm) and 2 screws (silver, tap, 8 mm) to remove
the Developer Drive Assembly from the printer.
Be careful to not let the gears fall off of the assembly. When removing, start
by tipping the top of the assembly away from the printer so that the gears do
not fall off.
