Xerox Phaser 6000 Service Manual

2-12 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Theory of Operation

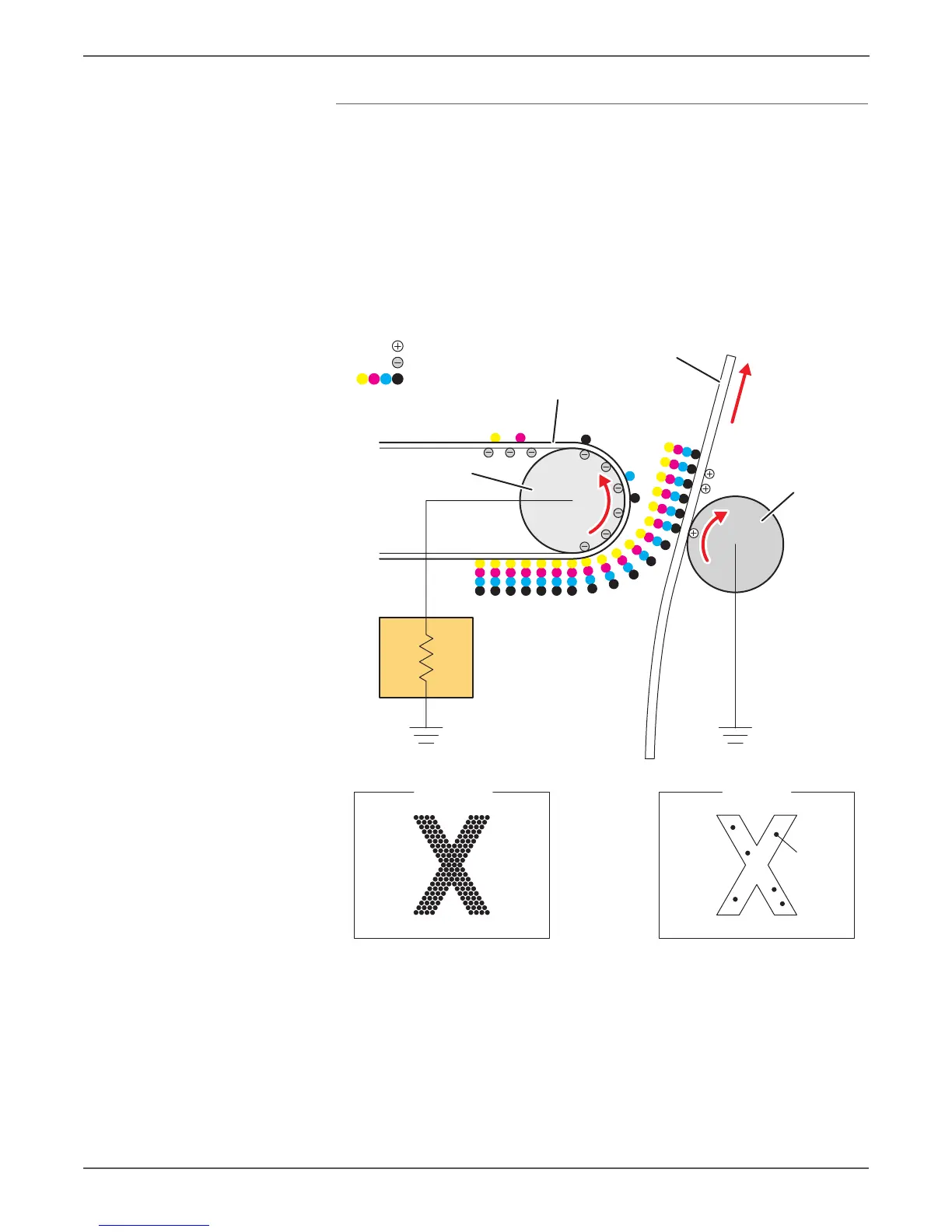

Secondary Transfer
In the secondary transfer process, the toner image completed on the surface of
the transfer belt is transferred onto the print medium using the Transfer Roller. The
print medium passes between the Transfer Roller and the transfer belt that runs in
contact with the conductive roller (back up roller).
The toner image on the transfer belt moves onto the print medium due to the
attracting force generated between the back up roller negatively charged by the
HVPS and the Transfer Roller grounded and positively polarized.
HVPS
s6000-062
Paper
2nd BTR
Belt
Back Up Roller
Belt SurfaceDrum Surface
Excess
Toner
: Negative electric charge
: Positive electric charge
: Toner
