Xerox Phaser 6000 Service Manual

Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 2-29
Theory of Operation

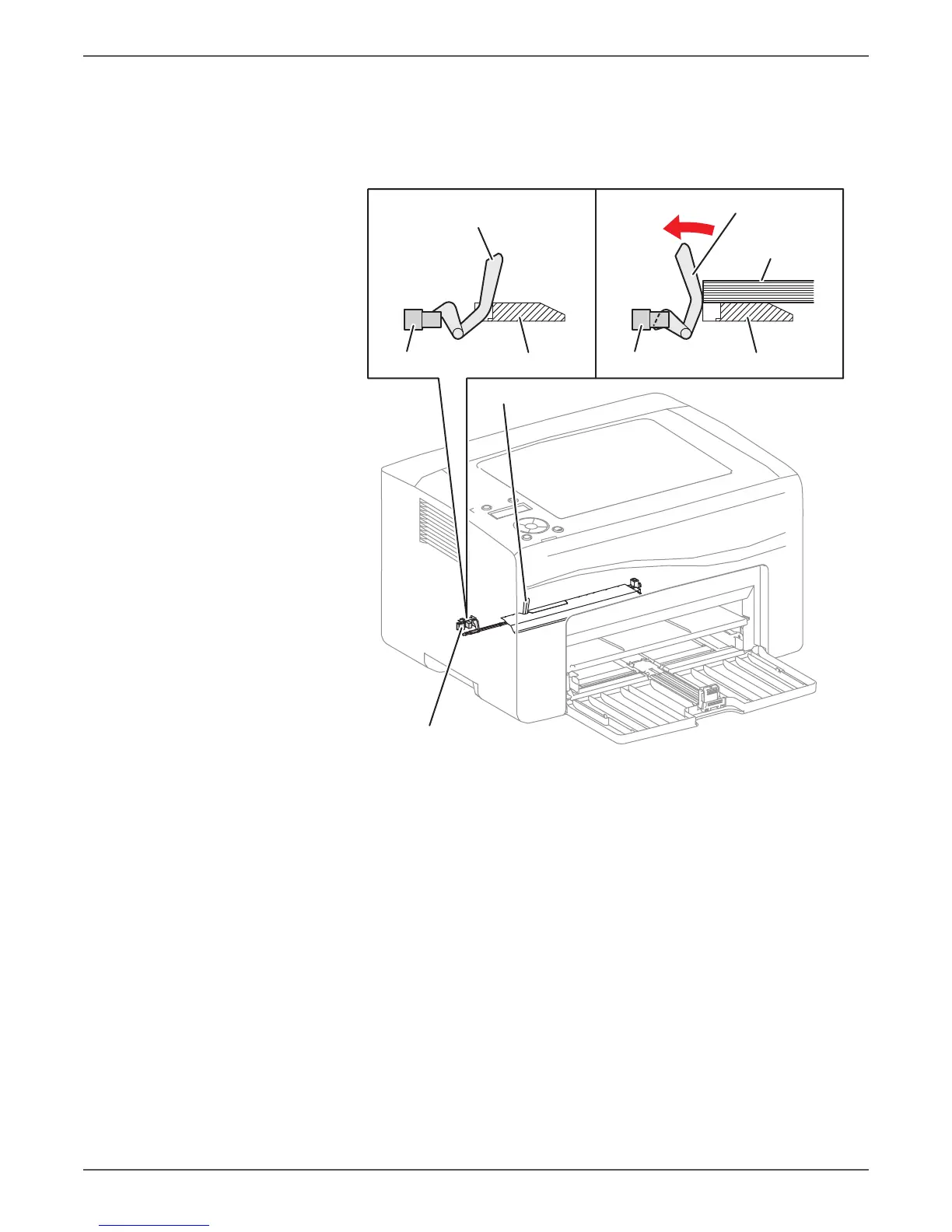

• No Paper Sensor (6010N and WorkCentre 6015 MFP Only)
Detects the presence/absence of sheets in the Main Paper Tray or Bypass Tray
based on the change of the actuator position. (No sheets: Sensor beam is
received.)
No Paper Actuator
(No Paper Position)
Bottom Plate
Bottom Plate
No Paper Sensor
No Paper Sensor
No Paper Actuator
No Paper Actuator
No Paper Sensor
Paper
s6000-173
