YOKOGAWA DL6000 Series User Manual

5-5
IM DLM6054-01EN
Vertical and Horizontal Control
3
2
1
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Index
App
Linear Scaling (Linear Scale)
Using specified scaling coefficient A and offset B, the DL6000/DLM6000 performs the following
computation to scale the cursor measurement values and the automated measurements of waveform
parameters. You can assign units to the scaled values.
Y = AX + B (where X is the measured value and Y is the result of linear scaling)
Scaling Coefficient A and Offset B
Settable range for A and B –10.000E+30 to +10.000E+30
Default settings A: 1.0000E+00
B: 0.0000E+00
Turning Linear Scaling On and Off (Mode)
Select whether or not to use linear scaling.
ON: Linear scaling is used.
OFF: Linear scaling is not used.
Unit (User Unit)
You can specify a unit using up to four alphanumeric characters.
Labels (Label)
Turning Labels On and Off (Display)
Select whether or not to display labels.
Label (Name)
When you turn the label display on, you can set the labels using up to eight characters.

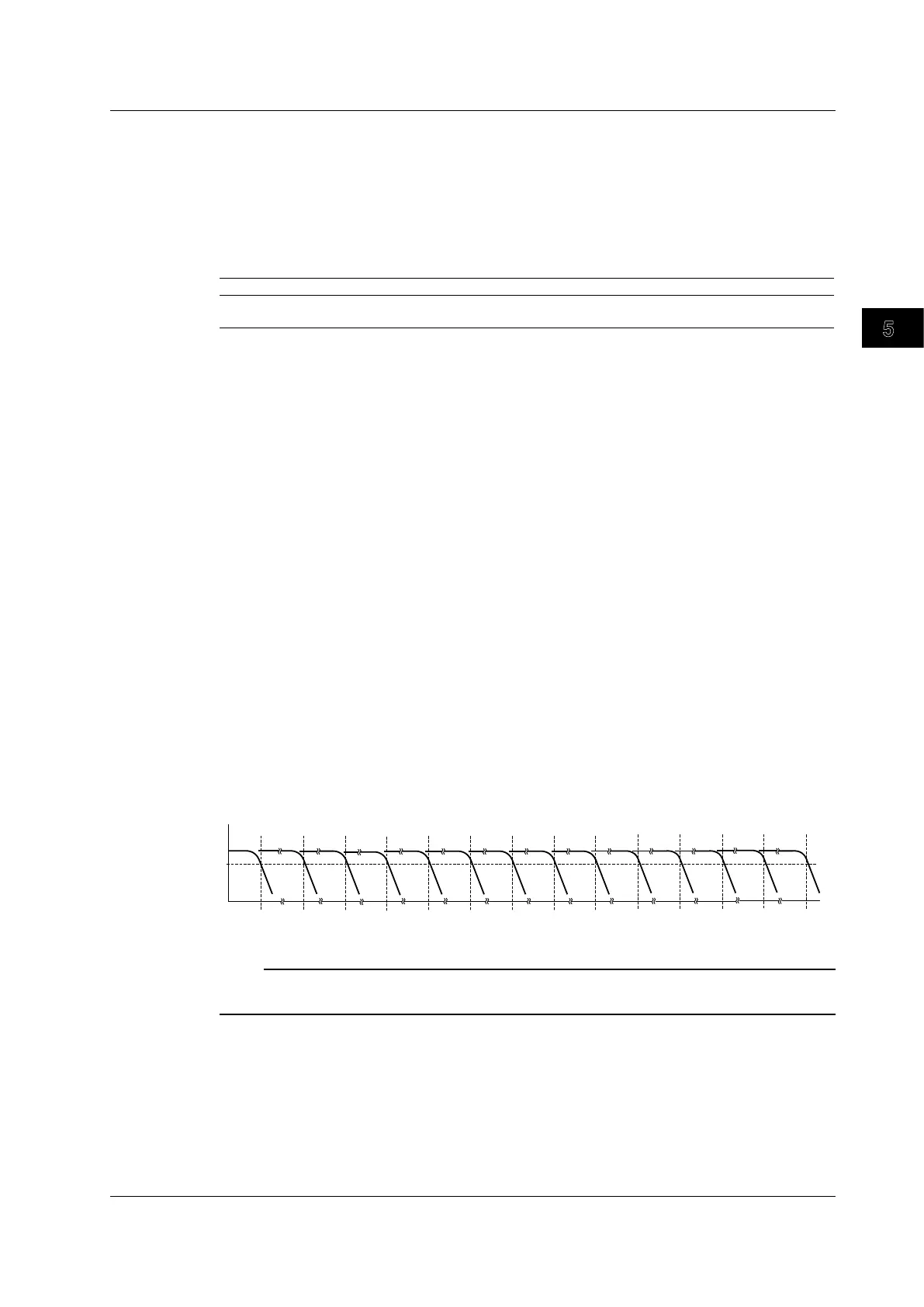

Bandwidth (Bandwidth)
You can set bandwidth limitations for analog signals by specifying cutoff frequencies for each channel.
You can view signals with the frequency components above a specified frequency removed.
Set the cutoff frequency to one of the settings below.
FULL (no bandwidth limit), 200 MHz, 20 MHz, 8 MHz, 4 MHz, 2 MHz, 1 MHz, 500 kHz, 250 kHz, 125
kHz, 62.5 kHz, 32 kHz, 16 kHz, or 8 kHz
-3 dB
Approx. 2 MHz
FULL
Approx. 8 kHz
Approx. 16 kHz
Approx. 32 kHz
Approx. 62.5 kHz
Approx. 125 kHz
Approx. 250 kHz
Approx. 500 kHz
Approx. 1 MHz
Approx. 4 MHz
Approx. 8 MHz
Approx. 20 MHz
Approx. 200 MHz
Note
When high resolution mode is on, even if the bandwidth limit is set to FULL, the actual bandwidth limit is 200
MHz.
5.1 Vertical Axis Settings for Analog Input Signals
