YOKOGAWA DL6000 Series User Manual

Triggering
3
2
1
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Index
App
6-35
IM DLM6054-01EN

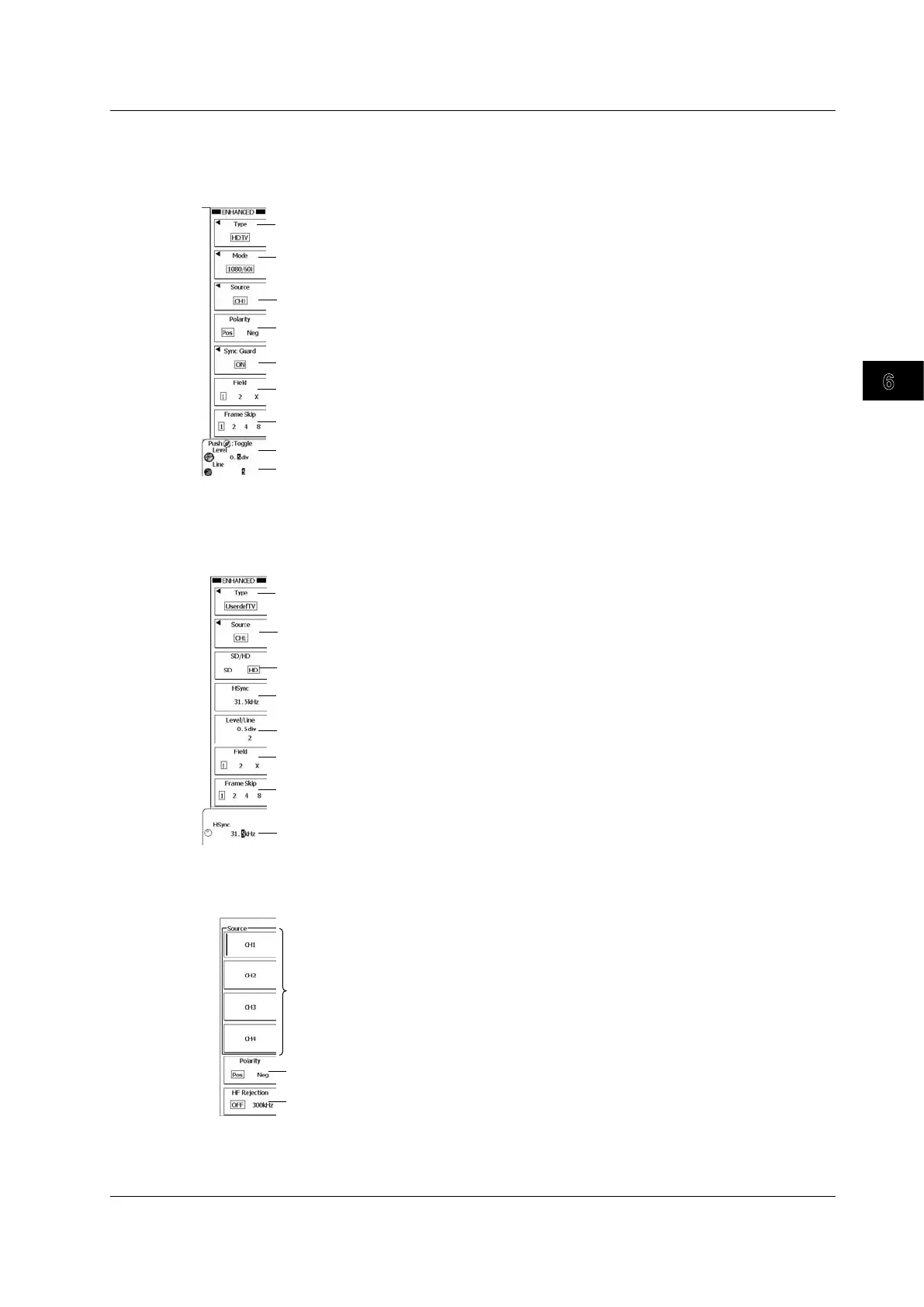

HDTV Menu
Press ENHANCED, the Type soft key, the TV soft key, and then the HDTV soft key to display the
following menu.
Set the trigger type to HDTV.
Select the source (CH1-CH4).
Set the polarity (Pos, Neg).
Press to configure the sync guard (same as NTSC).
Set the field number (1, 2, X).
Set the frame skip (1, 2, 4, 8).
Set the level used to detect source states.
Set the line number.
Set the video format (the effective number of scan
lines/frame rate) to 1080/60i, 1080/50i, 720/60p,
1080/25p, 1080/24p, 1080/24sF, or 1080/60p.
UserdefTV Menu
Press ENHANCED, the Type soft key, the TV soft key, and then the UserdefTV soft key to display the
following menu.
Set the trigger type to UserdefTV.
Set the source.
Set the resolution (SD, HD).
Set the horizontal sync frequency (using the jog shuttle).
Set the field number (1, 2, X).
Set the frame skip (1, 2, 4, 8).
Set the line number and the level for determining the source state (using the jog shuttle).
Set the horizontal sync frequency, the line number, and the level for determining the
source state.
Setting the Source (Source)
Press the Source soft key to display the following menu.
Select the source (CH1-CH4).
Set the polarity (Pos, Neg).
Set the HF rejection (OFF, 300 kHz).
6.10 Triggering on a TV Trigger
