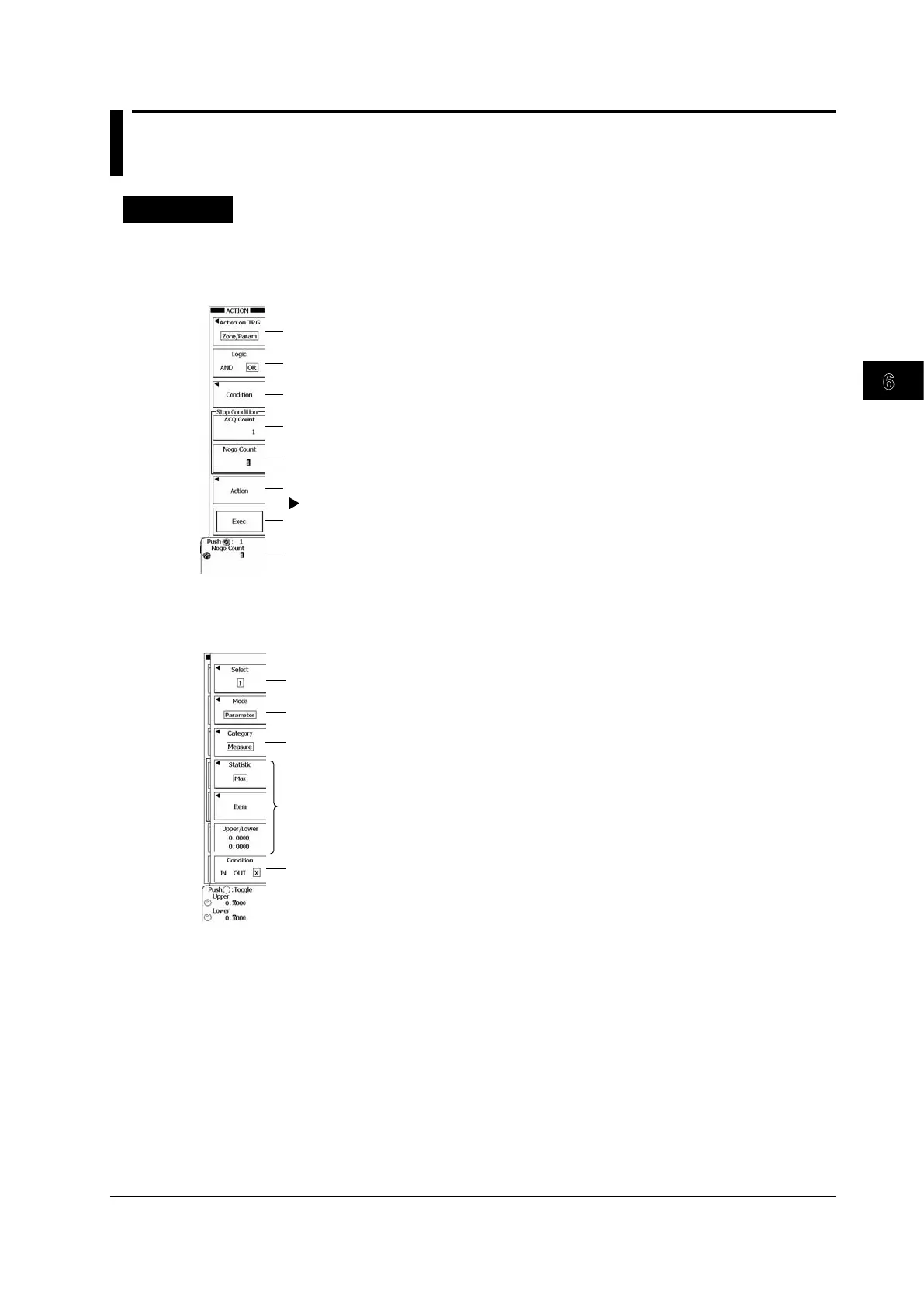

6.16 Performing GO/NO-GO Determination with
Parameters
Procedure
Action Go/Nogo Menu
Press SHIFT+MODE(ACTION GO/NO-GO), the Action on TRIG soft key, and then the Zone Param
soft key to display the following menu.
Press to configure the determination conditions.
Set the number of waveform acquisitions (using the jog shuttle).
Set the number of NO-GO determinations (using the jog shuttle).
Press to set the actions to perform when the conditions are met.
section 6.15.
Executes (Exec) or stops (Abort) GO/NO-GO determination.
Set the waveform acquisition count and the NO-GO determination count.
Set the GO/NO-GO determination type to Zone or Param.
Set the determination logic (AND, OR).
Setting Conditions for Determination (Condition)
Press the Condition soft key to display the following menu.
Set the determination condition number.
Set the determination mode to Parameter.
Set the reference condition (IN, OUT, X).
The setup menu varies depending on the category.
Set the category (Measure, FFT, XY).
