6-68
IM DLM6054-01EN
Explanation
The DL6000/DLM6000 determines whether the acquired waveform meets the reference conditions
(NO-GO result) or not (GO result). When the DL6000/DLM6000 produces a NO-GO result, it executes
the specified actions.
You can specify up to four determination conditions. You can also apply AND or OR logic to the four
determination conditions.
You can use the following types of parameters as determination conditions.
Waveform parameter values, FFT analysis items, and XY waveform areas
P-P
When the reference condition is set to OUT, a NO-GO judgment is made here.

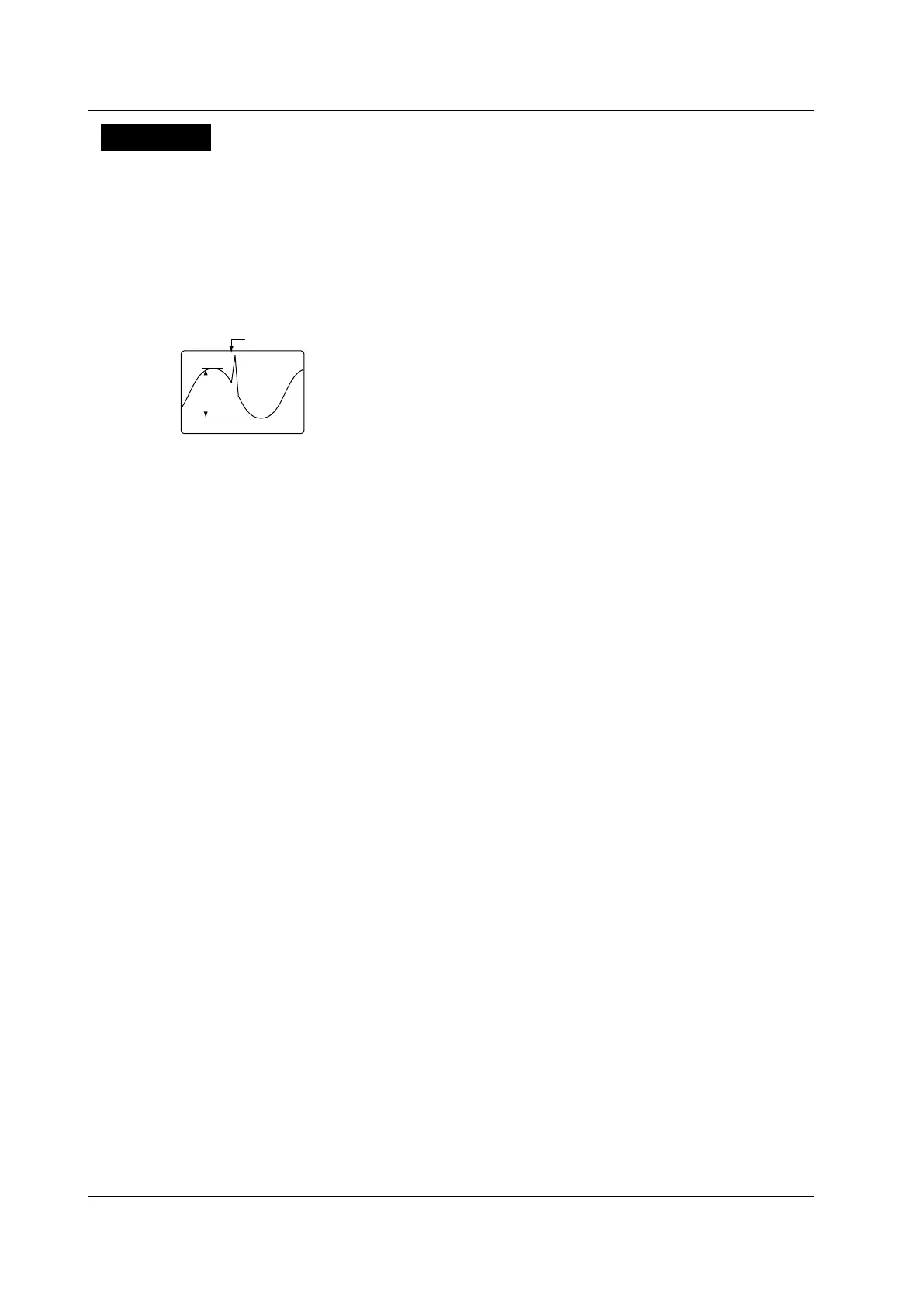

When the P-P Value Is Used for Determination
GO/NO-GO Determination Mode (Action on TRIG)
You can set the GO/NO-GO determination mode to one of the settings below.
• OFF: The DL6000/DLM6000 will acquire the number of signals specified by ACQ Count
and then stop.
• All Condition:
The DL6000/DLM6000 executes the specified actions whenever a trigger occurs
(see section 6.13 for details).
• Zone/Parameter (GoNogo):
Select this mode when you want to perform GO
/NO-GO determination using a
zone or parameter.
• Mask (GoNogo): Select this mode when you want to perform GO
/NO-GO determination using a
mask test or eye pattern (see section 6.17 for details).
Determination Logic (Logic)
You can set the determination logic for determination condition numbers 1 to 4.
• AND: The DL6000/DLM6000 executes the specified actions whenever all the determination
conditions are NO-GO.
• OR:
The DL6000/DLM6000 executes the specified actions whenever any of the determination
conditions are NO-GO.
Determination Condition Numbers (Select)
For determination conditions 1 to 4, set the determination source window (only for FFT and XY
parameters), the determination range (the parameter upper and lower limits), and the reference
condition.
6.16 Performing GO/NO-GO Determination with Parameters
To Next Page
