Configuring Enhanced Features (Enhanced)

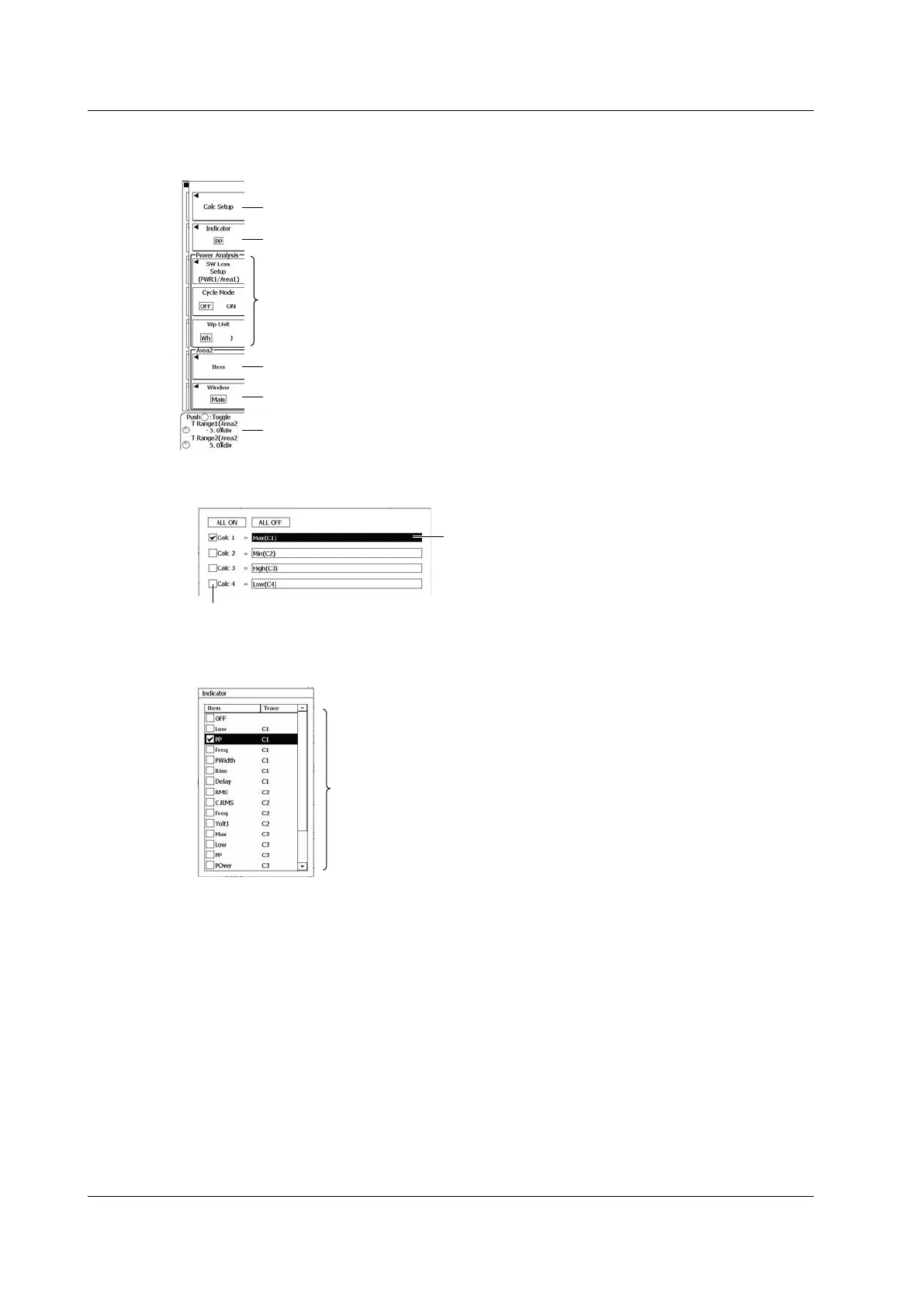

Press the Enhanced soft key to display the following menu.
Press to configure expressions.
Press to set the indicator feature.
Press to set the source waveform and items to measure for area 2.
Set the measurement source window for area 2 (Main, Zoom1, Zoom2).
Set the upper and lower limits of the measurement time range of area 2
(T Range1(Area2) and T Range2(Area2)).
Configure the optional power supply analysis feature. â–º IM DLM6054-61EN
manual*
* Only when the power supply analysis feature is enabled on a model with
the power supply analysis option installed
Configuring Calculations (Calc Setup)
Press the Calc Setup soft key to display the following menu.
Define expressions using functions, arithmetic operators,
and measurement items.
Set the expressions that you want to use.
Configuring the Indicator Feature (Indicator)
Press the Indicator soft key to display the following menu.
Select the measurement item whose location you want to indicate.
(Select OFF to disable this feature.)
10.2 Automatically Measuring Waveform Parameters
