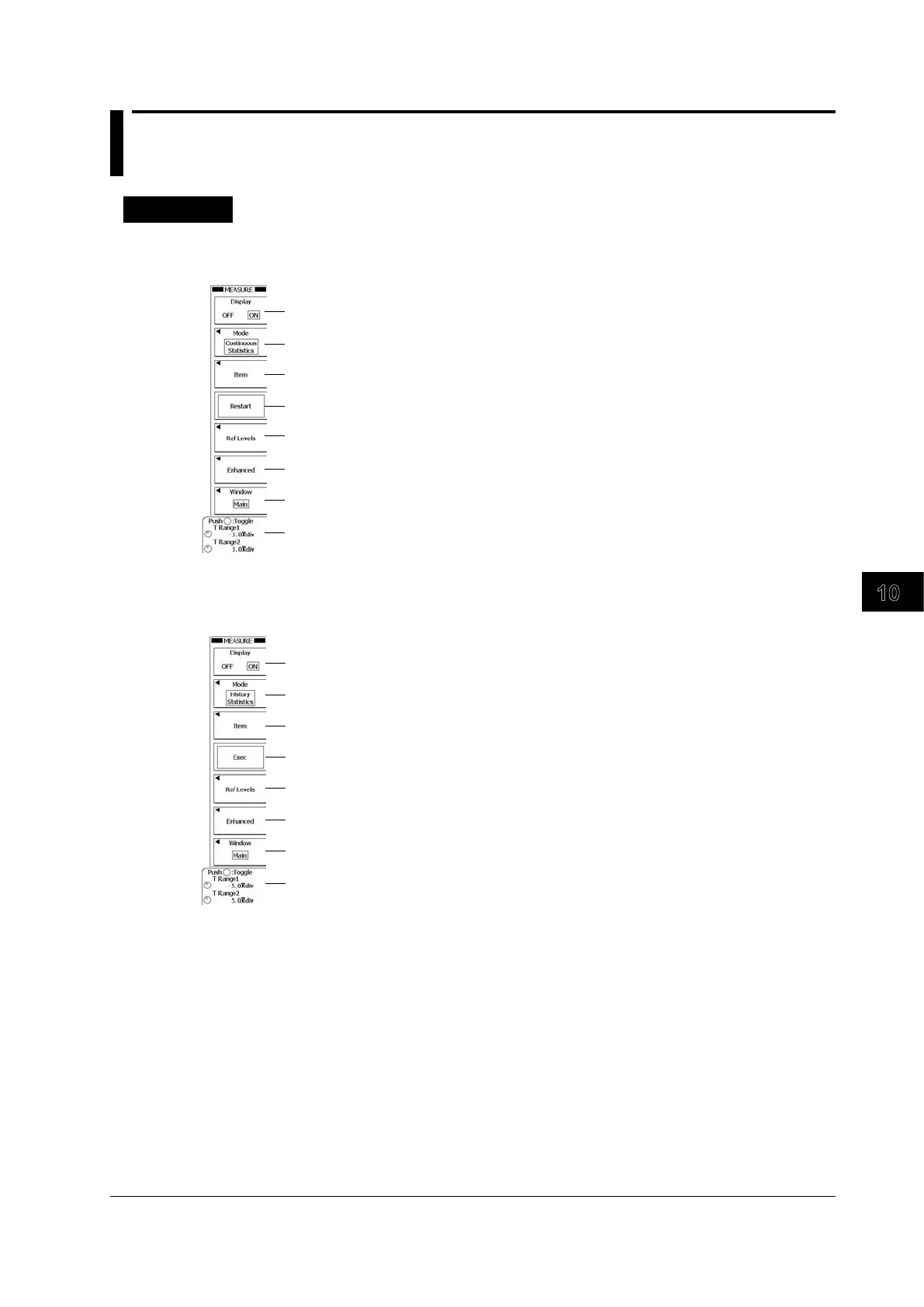

10.3 Performing Statistical Processing on Measured
Waveform Parameter Values
Procedure
MEASURE Continuous Statistics Menu
Press MEASURE, and then the Continuous Statistics soft key to display the following menu.
Turns automated measurement on and off
Set the measurement mode to Continuous Statistics.
Press to set the source waveform and measurement items. ► section 10.2
Restarts statistical processing
Press to configure the enhanced features. ► section 10.2
Set the measurement source window (Main, Zoom1, Zoom2). ► section 10.2
Set the upper and lower limits of the measurement time range (T Range1 and T Range2).
► section 10.2
Press to configure the time measurement reference levels. ► section 10.2
MEASURE History Statistics Menu
Press MEASURE, and then the History Statistics soft key to display the following menu.
Turns automated measurement on and off
Set the measurement mode to History Statistics.
Press to set the source waveform and measurement items. ► section 10.2
Executes statistical processing
Press to configure the enhanced features. ► section 10.2
Set the measurement source window (Main, Zoom1, Zoom2). ► section 10.2
Set the upper and lower limits of the measurement time range (T Range1 and T Range2).
► section 10.2
Press to configure the time measurement reference levels. ► section 10.2
