MEASURE Cycle Statistics Menu

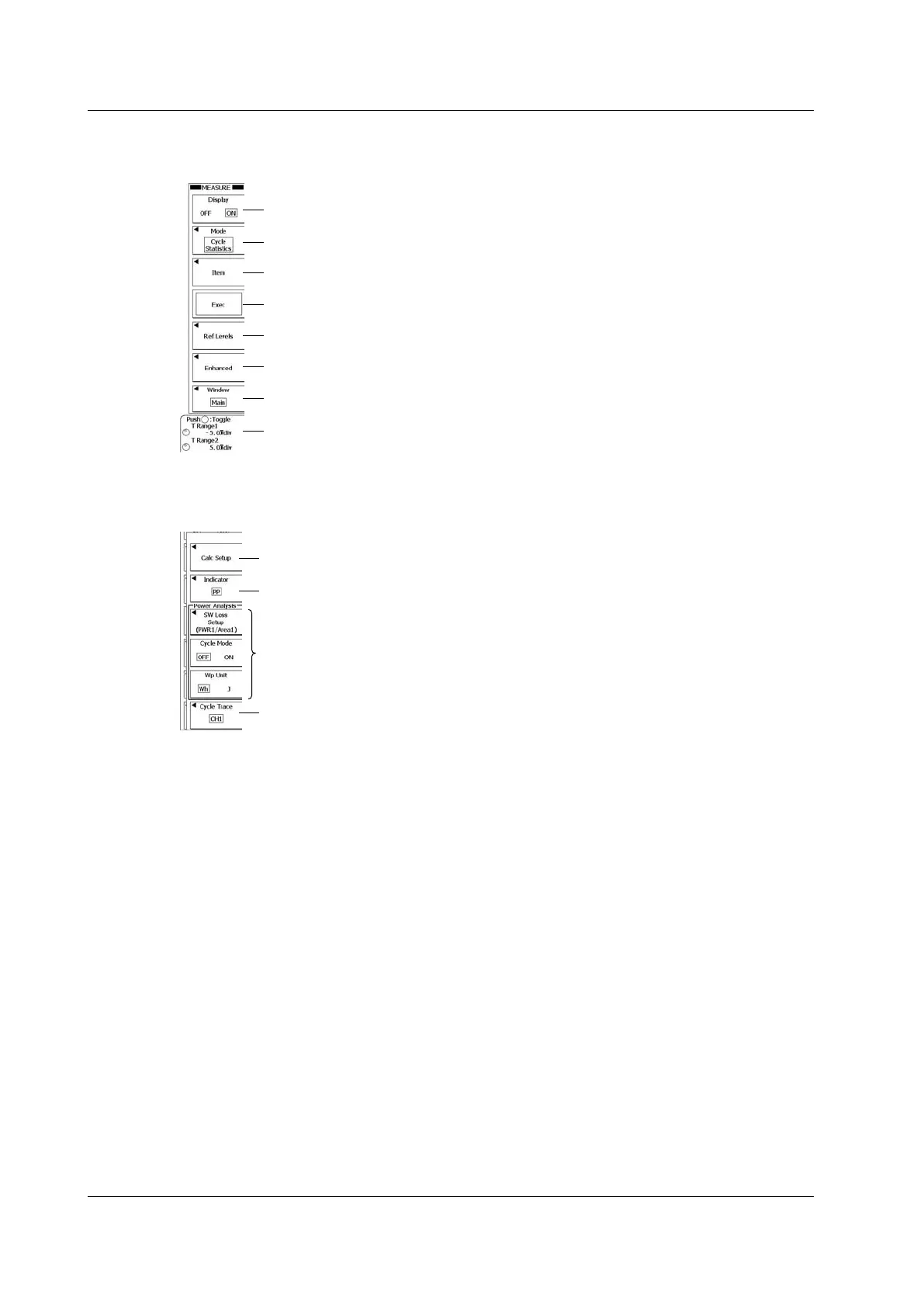

Press MEASURE, and then the Cycle Statistics soft key to display the following menu.
Turns automated measurement on and off
Set the measurement mode to Cycle Statistics.
Press to set the source waveform and measurement items. ► section 10.2
Executes statistical processing
Press to configure the enhanced features.
Set the measurement source window (Main, Zoom1, Zoom2). ► section 10.2
Set the upper and lower limits of the measurement time range (T Range1 and T Range2).
► section 10.2
Press to configure the time measurement reference levels. ► section 10.2
Configuring Enhanced Features (Enhanced)
Press the Enhanced soft key to display the following menu.
Press to configure expressions. ► section 10.2
Press to configure the indicator feature. ► section 10.2
Set the source waveform to use to determine the period
(CH1–CH4, M1–M4, Logic).*
* You can set the reference waveform to a bit from A0 to A7, B0 to B7, C0 to C7, or D0 to D7.
(On 16-bit models, you can select from bits A0 to A7 and C0 to C7.)
Configure the optional power supply analysis feature. ► IM DLM6054-61EN
manual*
* Only when the power supply analysis feature is enabled on a model with
the power supply analysis option installed
