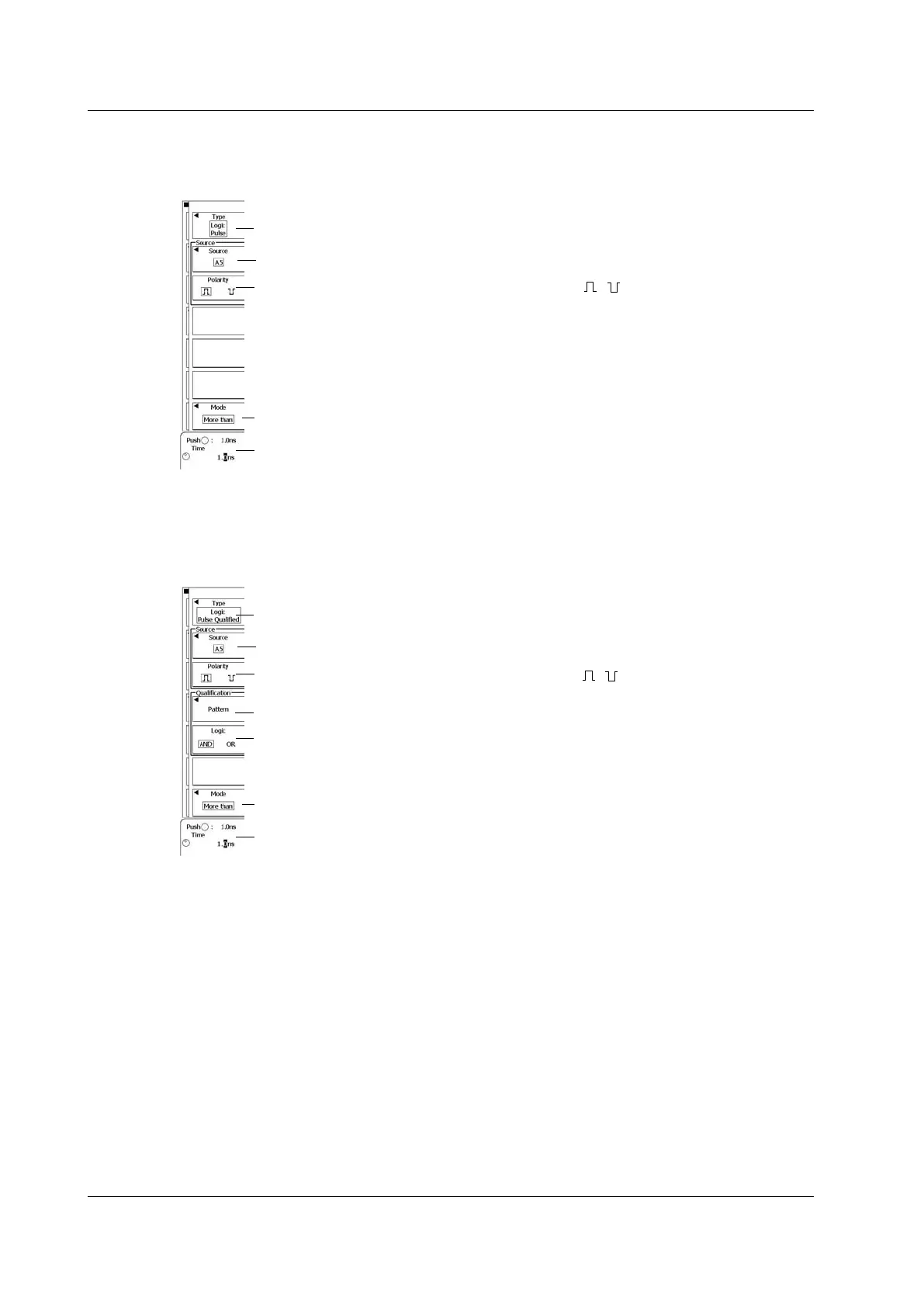

Searching for Pulse Widths on a Logic Signal (Logic Pulse)
Press the Setup soft key, the Type soft key, the Width soft key, and then the Logic Pulse soft key to
display the following menu.
Set the reference time.
Set the search type to Logic Pulse.
Set the kind of pulse to compare to the specified time ( , ).
► section 6.7
Set the waveform to search (A0–D7).
► section 6.7
Set the time width mode.
► section 6.7
Using Conditions to Limit a Pulse Width Search on a Logic Signal
(Logic Pulse Qualified)
Press the Setup soft key, the Type soft key, the Width soft key, and then the Logic Pulse Qualified
soft key to display the following menu.
Set the reference time.
Set the search type to Logic Pulse Qualified.
Set the kind of pulse to compare to the specified time ( , ).
Set the waveform to search (A0–D7).
Set the time width mode.
► section 6.8
Press to configure the qualifications.
Set the logic (AND, OR).
10.9 Searching Waveforms
