Searching for State Widths on a Logic Signal (Logic Pulse State)

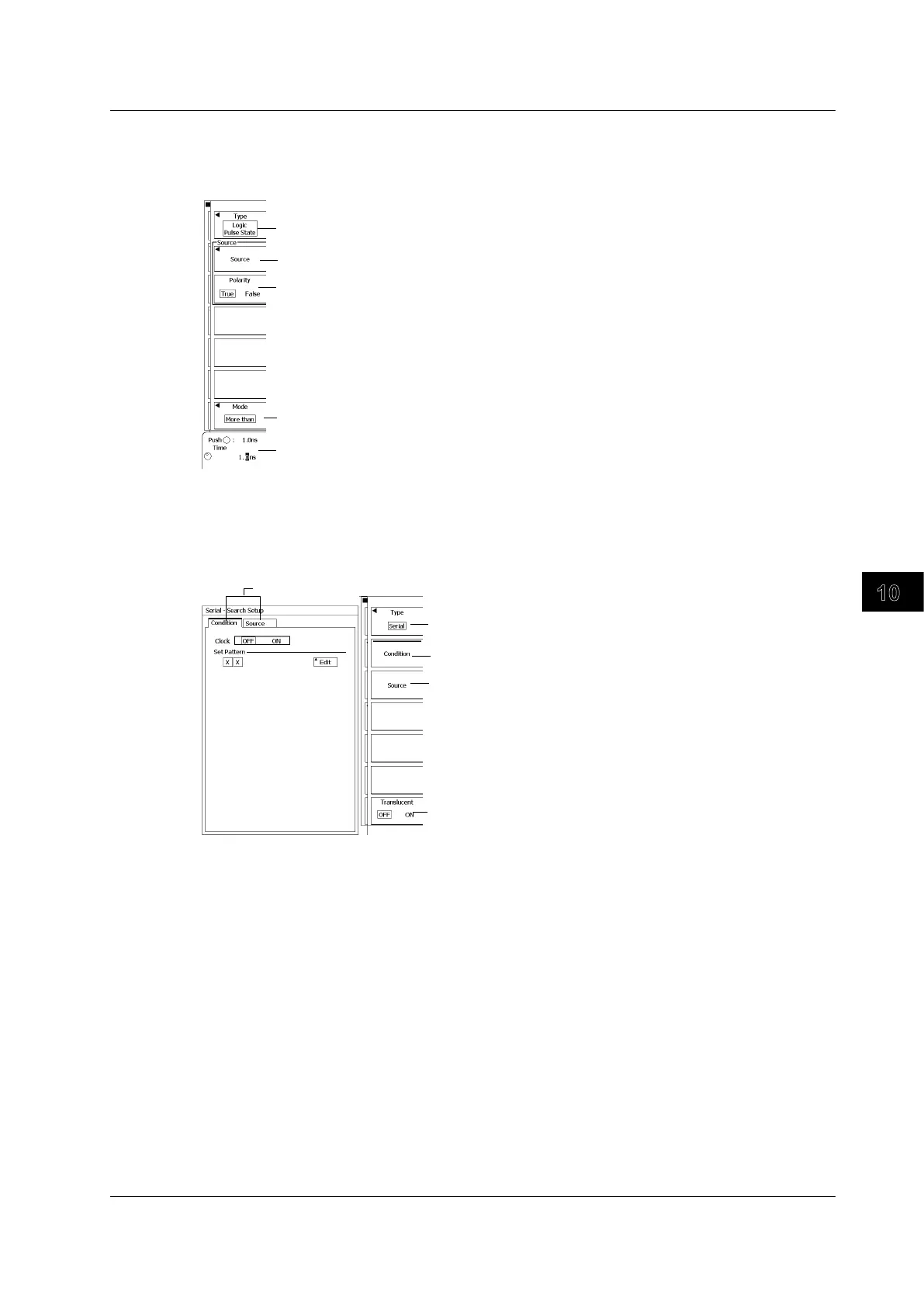

Press the Setup soft key, the Type soft key, the Width soft key, and then the Logic Pulse State soft
key to display the following menu.
Set the reference time.
Set the search type to Logic Pulse State.
Set the comparison method.
True: The time for which the state conditions are
met is compared with the reference time.
False: The time for which the state conditions are
not met is compared with the reference time.
â–º section 6.9
Press to configure the state conditions.
â–º section 6.9
Set the time width mode.
â–º section 6.9
Searching on a Serial Bus Signal (Serial)
Press the Setup soft key, the Type soft key, the Width soft key, and then the Serial soft key to display
the following menu.
Set the search type to Serial.
Press to configure the waveform to search.
Press to configure the search conditions.
Turns translucent dialog box display on and off
Switch between configuring the search conditions and the waveform to search
(using the jog shuttle and the SET key).
