Setting Constants K1 to K8
18. Press the Constant soft key. A Constant dialog box opens.
19. Use jog shuttle & SELECT to set constants K1 to K8.
20. Press ESC. The Constant dialog box closes.

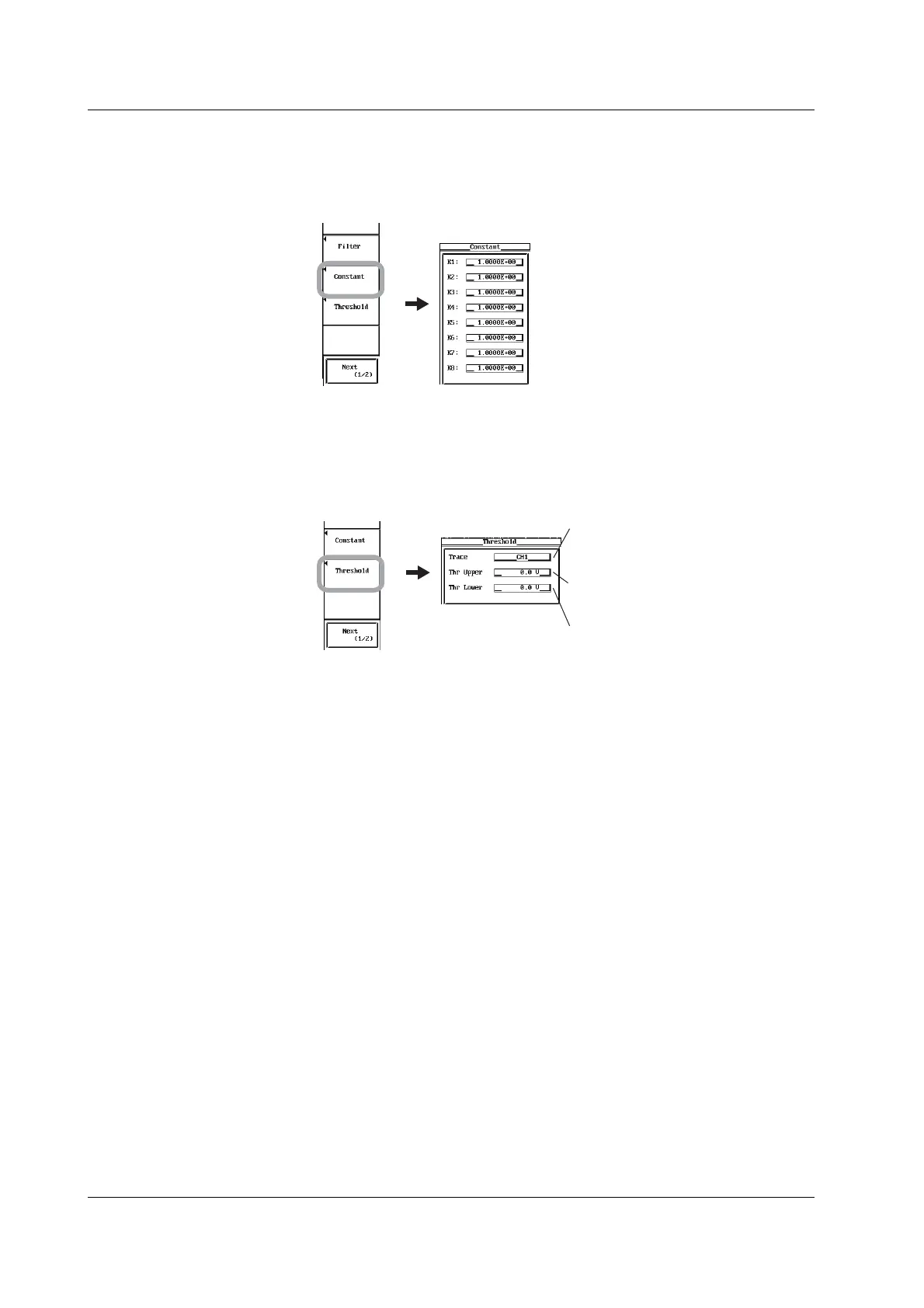

Set constants K1 to K8.
Setting the Threshold Level for Binary Computation
21. Press the Threshold soft key. The Threshold dialog box opens.
22. Use the jog shuttle and SELECT to set the waveform on which to set the
threshold level for binary computation and the threshold level.
23. Press ESC. The Threshold dialog box closes.
Select the waveform on which the
threshold levels for binary computation
is to be specified.
Set the level of waveform used to switch
from 0 to 1.
Set the level of waveform used to switch
from 1 to 0.
