YOKOGAWA DL7440 User Manual

1-7
IM 701450-01E
1
Names and Functions of Parts

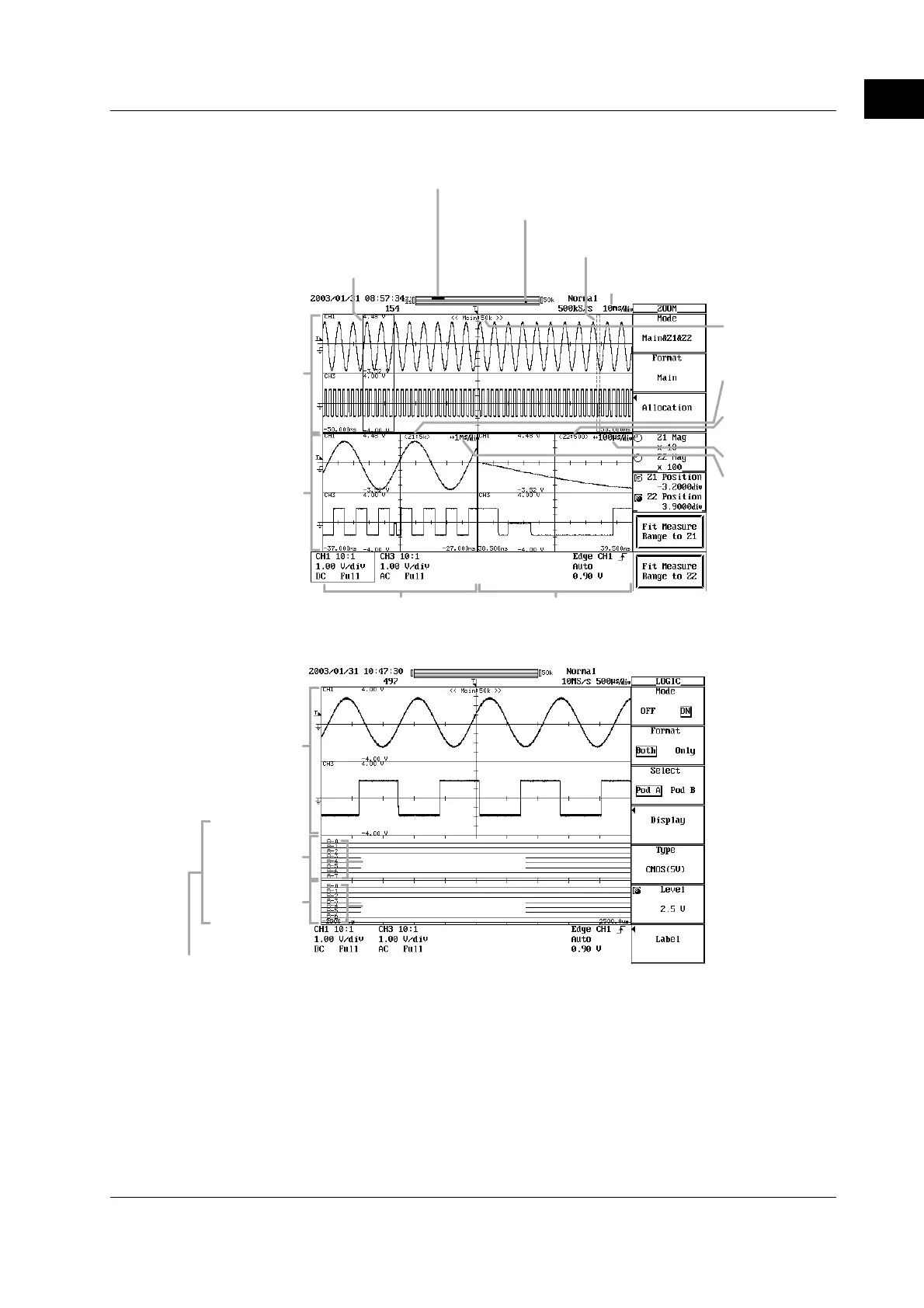

Display Example When Displaying Zoom Waveforms
T/div of the normal waveform
See section 5.12.
Zoom position of zoom waveform Z1 with
respect to the specified or display record length
Zoom position of zoom waveform Z2 with
respect to the specified or display record length
Zoom box Z2 indicating
the zoom range of Z2
Zoom box Z1 indicating the
zoom range of Z1
Main waveform
display frame
Zoom waveform
display frame
Display frame of Z1 Display frame of Z2
Display record
length of Z1
T/div of Z2
T/div of Z1
Display record
length of the
normal waveform
Display record
length of Z2
Display Example When Displaying Logic Waveforms
Main waveform
display frame
Logic waveform display frame
The logic waveforms can be displayed simultaneously with normal
waveforms as in this example or displayed over the entire screen.
Logic waveform
display frame of
Pod A
Logic waveform
display frame of
Pod B
Labels of Pod A bits 0 to 7
Labels of Pod B bits 0 to 7
1.3 Display
