10-13
IM 701450-01E
10
Analyzing and Searching Waveforms
Executing/Aborting the Search

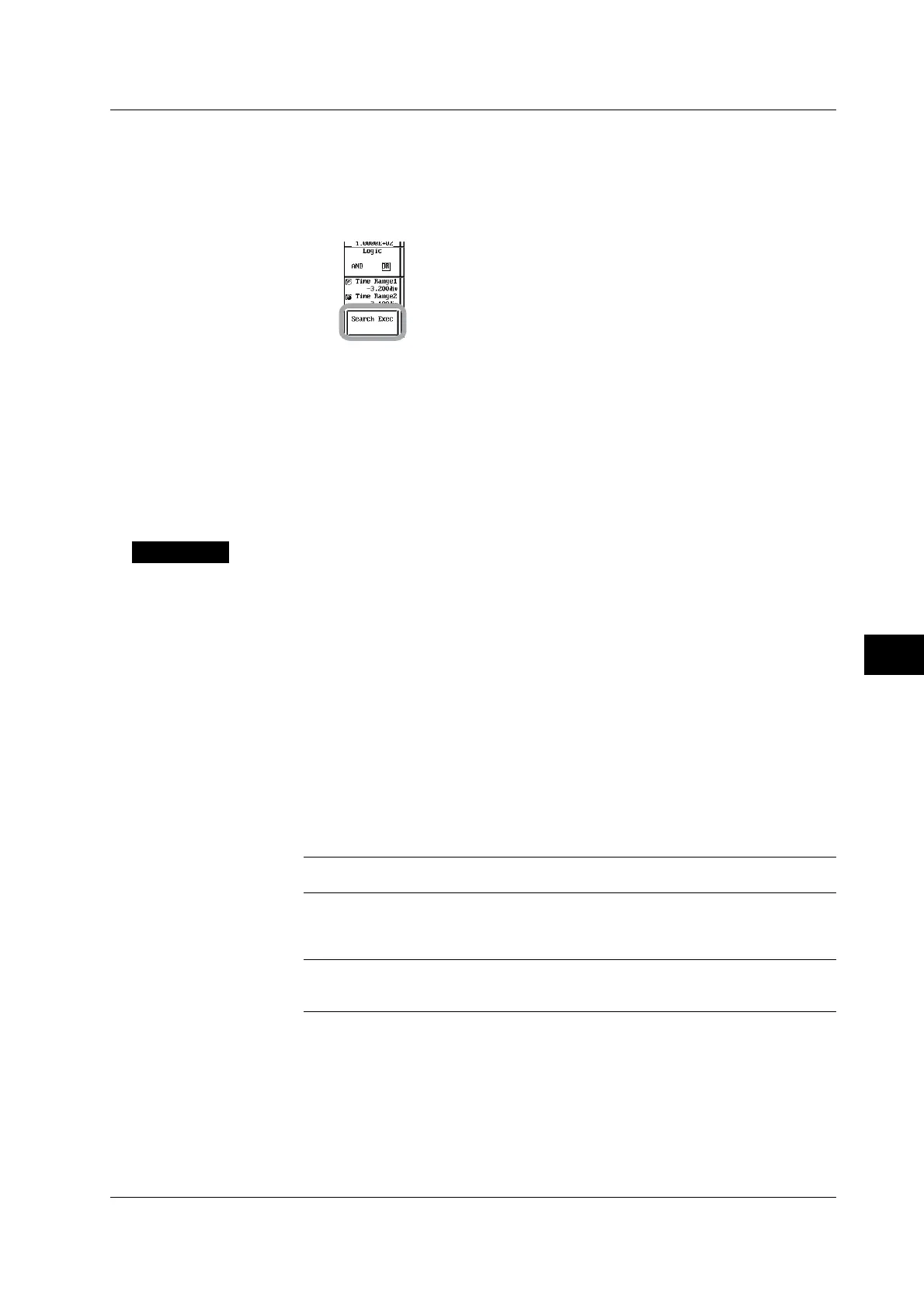

19. Press the Search Exec soft key. The search is executed, and the words
Search Exec change to Search Abort. To abort the search, press the Search
abort soft key. The search is aborted, and the words Search Abort change to
Search Exec.
Displaying the Searched Waveforms
20. Press the ESC to return to the HISTORY menu.
21. Display the waveform according to the procedure given in section 10.1.
The history map lists the record numbers and time stamps of the searched waveforms.
Resetting the Search Results
22. Set the Search Mode to OFF in the HISTORY menu, or turn OFF Param1 to
Param4 and execute the search. The search result is reset.
Explanation
This section explains the setup procedures for searching history waveforms that meet or
do not meet the specified search parameter conditions.
Search Parameter
You can register up to four search parameters, Param1 to Param4. For each search
parameter, you can set the search conditions below. You can also set whether to use
AND or OR logic of the search conditions of the four search parameters to perform the
search (see “Search Logic” described later).
• Condition of the search target waveform with respect to the search parameter
• Search target waveform and search measurement parameter
• Determination range of the measured value of the measurement search parameter
• Search range
Condition of the Search Target Waveform with Respect to the Search Parameter
You can select from the following.
OFF
Not searched.
IN
Searches for waveforms whose measured value of the search and measurement parameter
is within the determination range of the specified search parameter. Search is also made on
boundary values.
OUT
Searches for waveforms whose measured value of the search and measurement parameter
is outside the determination range of the specified search parameter.
10.3 Searching History Waveforms Using Waveform Parameters (History Search)
To Next Page
