YOKOGAWA DL7440 User Manual

10-34 IM 701450-01E
Selecting the Waveform to Be Measured
When X-Y Waveforms Are Not Displayed
4. Press the Trace soft key. The Trace menu appears.
5. Press the CH1 to CH8/4, Math1, or Math2 soft key to select the waveform to be
measured.
• On the DL7440, select CH1 to CH4, Math1, or Math2.
• On the DL7480, select CH1 to CH8, Math1, or Math2. CH7, CH8, Math1, and Math2
appear when you press the To Page 2 soft key.
When X-Y Waveforms Are Displayed
4. Press the Trace soft key to select XY1 or XY2.
Proceed to step 6.

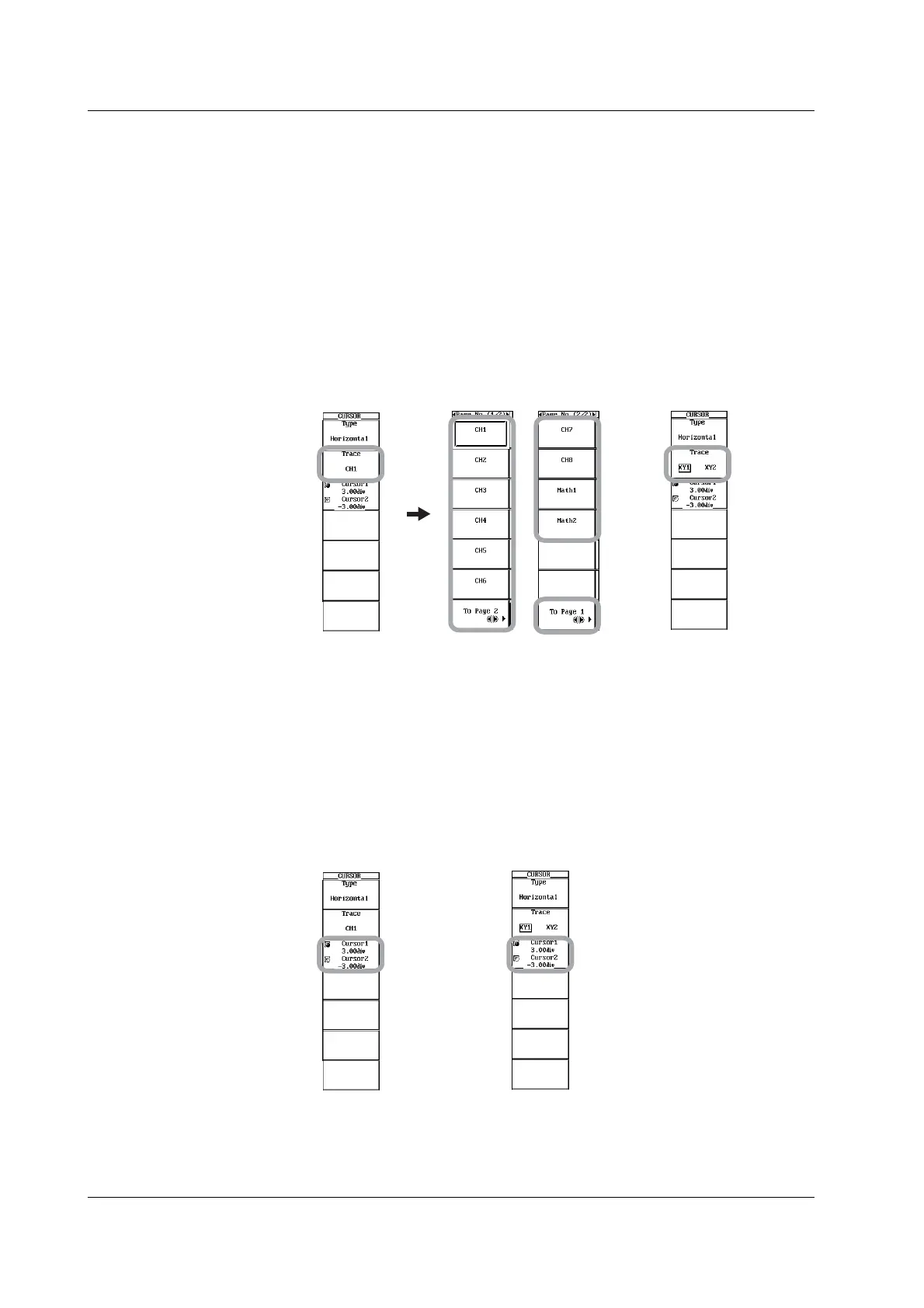

Trace menu on the DL7480
When X-Y waveforms
are not displayed
When X-Y waveforms
are displayed
Moving the Cursors
6. Press the Cursor1/Cursor2 soft key to set the jog shuttle control to Cursor1,
Cursor2, or both Cursor1 and Cursor2.
• Select Cursor1 to move Cursor1.
• Select Cursor2 to move Cursor2.
• If you select both Cursor1 and Cursor2, you can move Cursor1 and Cursor2 vertically
without changing the spacing between the two. The value of the digit being specified
by Cursor1 changes.
7. Turn the jog shuttle to move the cursor.
When X-Y waveforms are
not displayed
When X-Y waveforms are
displayed
10.5 Making Cursor Measurements
