10
Analyzing and Searching Waveforms

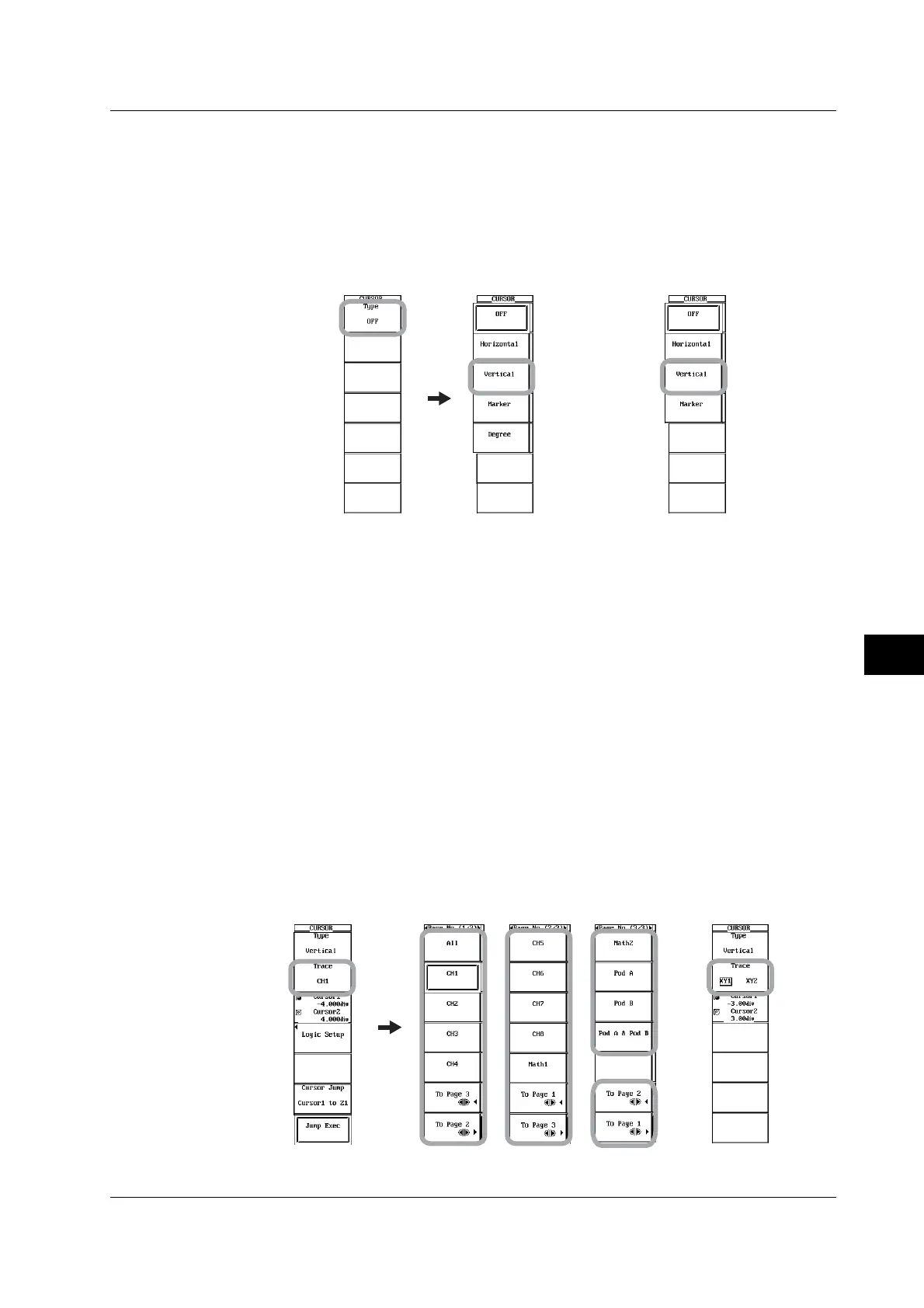

Measuring Waveforms Using Vertical Cursors
1. Press CURSOR. The CURSOR menu appears.
Selecting the Vertical Cursor
2. Press the Type soft key. The Type menu appears.
3. Press the Vertical soft key.
When X-Y waveforms are
not displayed
When X-Y waveforms are
displayed
Selecting the Waveform to Be Measured
When X-Y Waveforms Are Not Displayed
4. Press the Trace soft key. The Trace menu appears.
5. Press the All, CH1 to CH8(4), Math1, Math2, Pod A, Pod B, or Pod A & Pod B
soft key to select the waveform to be measured.
• On the DL7440, select All, CH1 to CH4, Math1, Math2, Pod A, Pod B, or Pod A & Pod
B. Math1, Math2, Pod A, Pod B, and Pod A & Pod B appear when you press the Next
(1/2) soft key.
• On the DL7480, Select All, CH1 to CH8, Math1, Math2, Pod A, Pod B, or Pod A & Pod
B. CH5, CH6, CH7, CH8, and Math1 appear when you press the To Page 2 soft key.
Math2, Pod A, Pod B, and Pod A & Pod B appear when you press the To Page 3 soft
key.
• If you select all, CH1 to CH8/4, Math1, or Math2, proceed to step 10.
• If you select Pod A, Pod B, or Pod A & Pod B, proceed to step 6.
When X-Y Waveforms Are Displayed
4. Press the Trace soft key to select XY1 or XY2.
Proceed to step 10.
Trace menu on the DL7480
When X-Y waveforms
are not displayed
When X-Y waveforms
are displayed
10.5 Making Cursor Measurements
