10-55
IM 701450-01E
10
Analyzing and Searching Waveforms
Performing Measurement per Cycle and Statistical Processing within the Measurement
Range

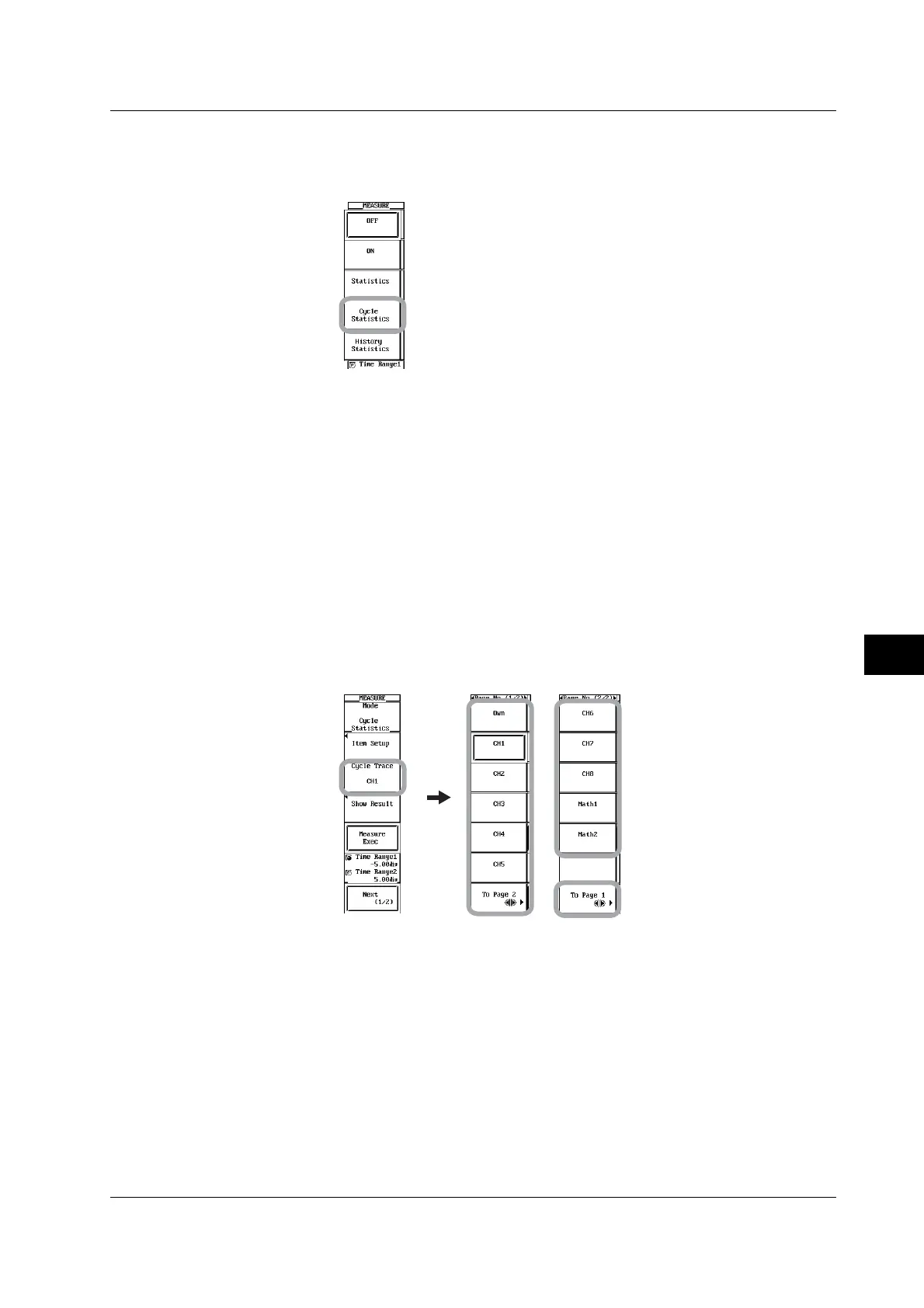

3. Press the Cycle Statistics soft key.
4. Perform the following setup procedures as necessary. For the operating
procedure, see section 10.6.
• Selecting the measurement parameters (steps 4 to 8 on page 10-46).
• Setting the measurement range (steps 20 and 21 on page 10-48).
• Setting distal, mesial, and proximal values (steps 22 to 31 on page 10-48).
• Setting high and low values (step 32 on page 10-49).
Selecting the Waveform Used to Determine the Cycle
5. Press the Cycle Trace soft key. The Cycle Trace menu appears.
6. Press the Own, CH1 to CH8(4), Math1, or Math2 soft key to select the
waveform used to determine the cycle.
• On the DL7440, you can select from Own, CH1 to CH4, Math1, and Math2.
• On the DL7480, you can select from Own, CH1 to CH8, Math1, and Math2. CH6, CH7,
CH8, Math1, and Math2 appear when you press the To Page 2 soft key.
Cycle Trace menu on the DL7480
10.7 Performing Statistical Processing of the Measured Values of Waveform Parameters
