Analyzing and Searching Waveforms
Setting the Measurement Range Area2 of the Second Measurement Parameter
13. Press the Time Range3/Time Range4 soft key to set the jog shuttle control to
Time Range3, Time Range4, or both Time Range3 and Time Range 4.
• If you select Time Range3, you can move Time Range3.
• If you select Time Range4, you can move Time Range4.
• If you select both Time Range3 and Time Range4, you can move Time Range3 and
Time Range4 horizontally without changing the spacing between the two. The value of
the digit being specified by Time Range3 changes.

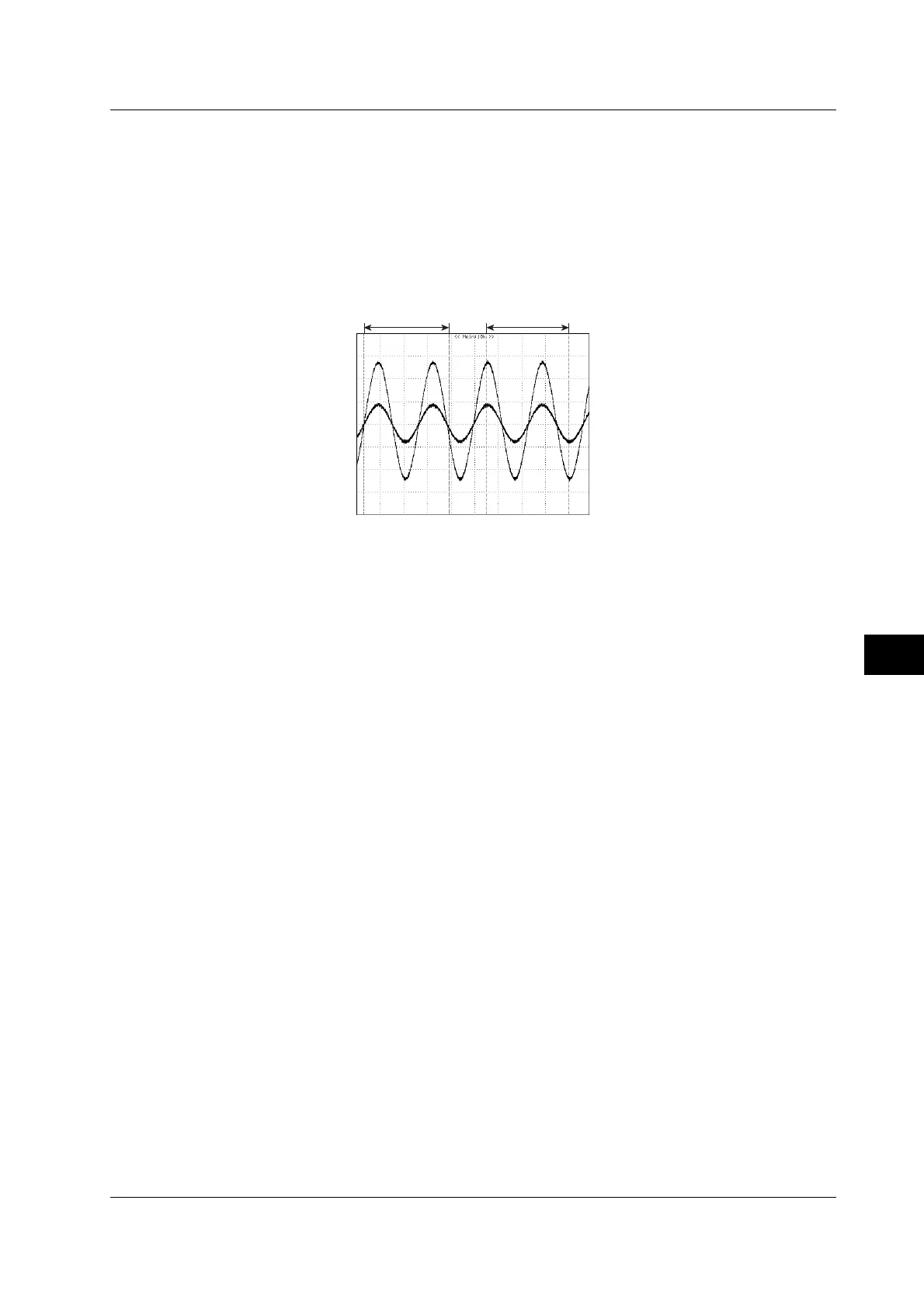

Measurement
range Area1
Measurement
range Area2
14. Turn the jog shuttle to set the measurement range Area2.
Setting the Distal, Mesial, and Proximal Values and High and Low Values
15. The procedure is the same as steps 22 to 32 on pages 10-48 and 10-49.
10.8 Performing Automated Measurements of Waveform Parameters on Dual Areas
