YOKOGAWA DL7440 User Manual

10-73
IM 701450-01E
10
Analyzing and Searching Waveforms
• Set the upper and lower limits used to determine the measured value (Upper
and Lower box).
• Select whether the measured value exiting the range defined by the upper
and lower limits (OUT) or entering the range (IN) (Condition box) makes the
condition true.
* On the DL7440, you can select from CH1 to CH4, Math1, and Math2. On the DL7480,
you can select from CH1 to CH8, Math1, and Math2.
6. Repeat step 5 to set determination parameters Param2 to Param4.
7. Use jog shuttle & SELECT to set the determination logic to AND or OR (Logic
box).
8. Use jog shuttle & SELECT to set the determination operation to Single or
Continue (Sequence box).
9. Use jog shuttle & SELECT to set the waveform acquisition count (ACQ Count
box).
10. Use jog shuttle & SELECT to set the DL7400 action when the condition is met
(Action box).
11. Press ESC. The Setup dialog box closes.

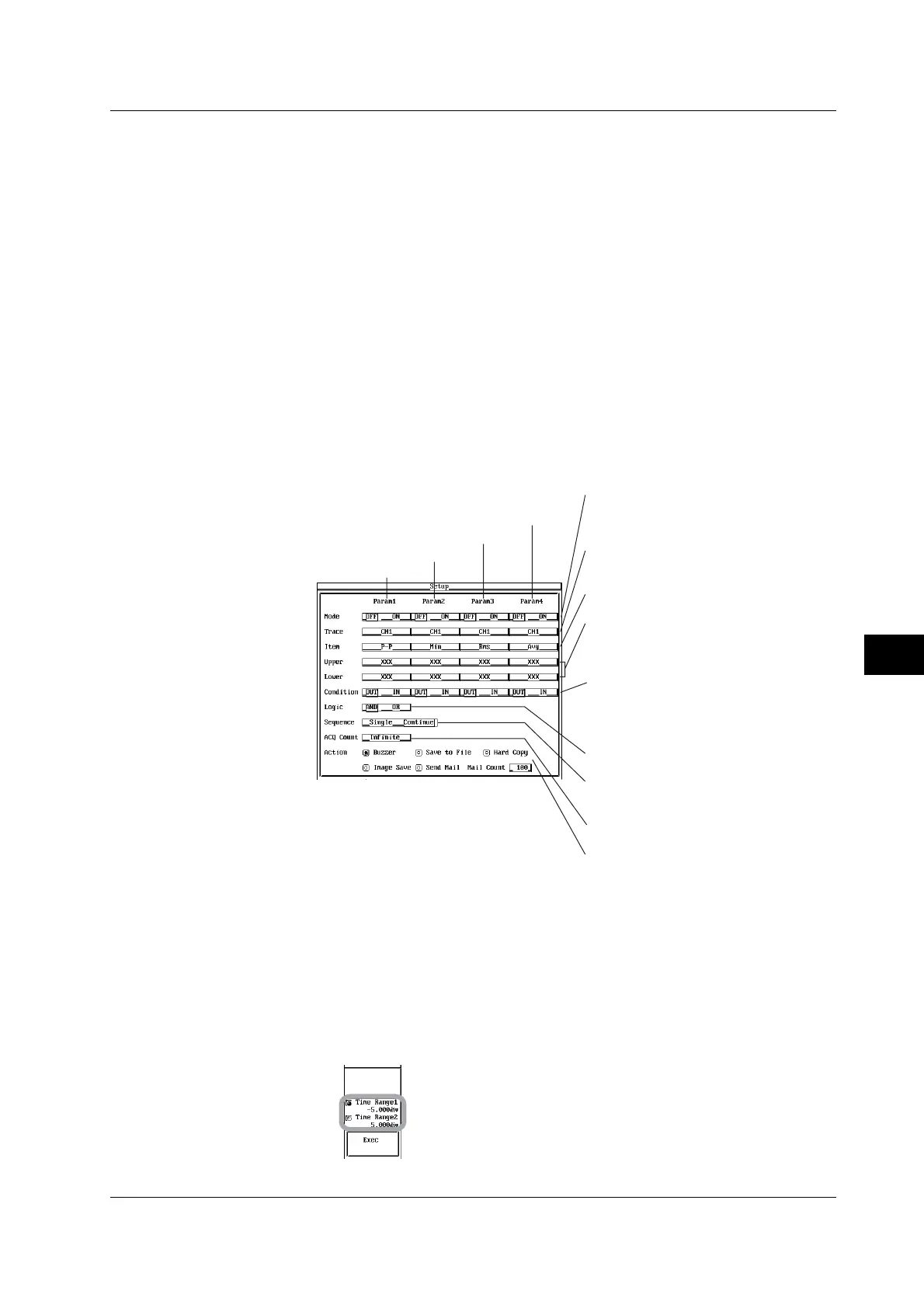

Determination parameter Param4
Determination parameter Param3
Determination parameter Param2
Determination parameter Param1
Select whether to perform determination
using the corresponding determination
parameter (ON/OFF).
Select the determination target waveform
from CH1 to CH8 (4), Math1, or Math2.
Select the measurement parameter.
Set the upper and lower limits used to
determine the true/false condition of the
measure values.
Select which condition when the measured
value exits the range defined by the upper
and lower limits (OUT) or when the waveform
enters the range (IN) is considered true.
Set the determination logic to AND or OR.
Set the determination operation to Single or
Continue.
Set the number of waveform acquisitions.
Set the action taken by the DL7400 when the
condition is met.
Setting the Determination Range
12. Press the Time Range1/Time Range2 soft key to set the jog shuttle control to
Time Range1, Time Range2, or both Time Range1 and Time Range 2.
• If you select Time Range1, you can move Time Range1.
• If you select Time Range2, you can move Time Range2.
• If you select both Time Range1 and Time Range2, you can move Time Range1 and
Time Range2 horizontally without changing the spacing between the two. The value of
the digit being specified by Time Range1 changes.
10.10 Performing GO/NO-GO Determination Using Measured Waveform Parameters
