10-74 IM 701450-01E
Executing/Aborting Determination
13. Press the Exec soft key. GO/NO-GO determination is executed. The Exec soft
key changes to the Abort soft key. To abort GO/NO-GO determination, press the
Abort soft key or press START/STOP. GO/NO-GO determination is aborted, and the
word Abort changes to Exec.

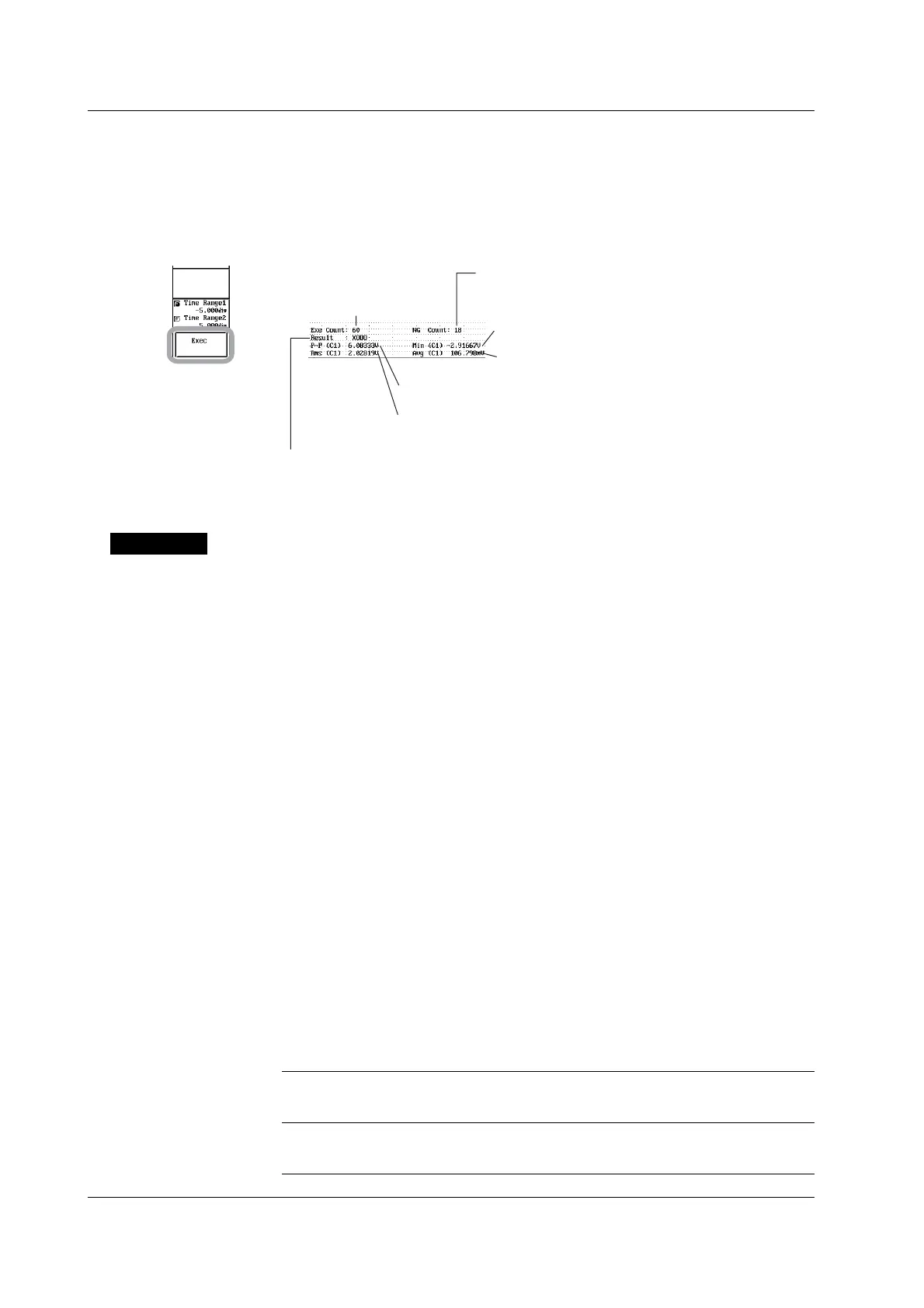

Determination display example
Determination count
Number of times the condition is met (NO-GO count)
When all the conditions including the determination
logic are met, it is counted as NG (NO-GO).
Determination target waveform, measurement parameter,
and measured value of determination parameter Param2
Determination target waveform, measurement parameter,
and measured value of determination parameter Param4
Measurement parameter, determination target waveform, and
measured value of determination parameter Param1
Measurement parameter, determination target waveform, and
measured value of determination parameter Param3
Displays the determination results of each determination parameter in the order
Param1 to Param4
(Displays the determination results of determination parameters whose Mode is ON)
O when the conditions of the determination parameter are not met
X when the conditions of the determination parameter are met
Explanation
This section explains the setup procedures for performing GO/NO-GO determination
based on whether the measured value of the waveform parameter (measurement
parameter) exits or enters the range specified by the upper and lower limits.
Determination Target Waveform
The waveform on which GO/NO-GO parameter determination is performed is CH1 to
CH8/4*, Math1, or Math2.
* On the DL7440, the waveform is CH1 to CH4, Math1, or Math2. On the DL7480, the
waveform is CH1 to CH8, Math1, or Math2.
Determination Parameter
• Up to four determination parameters, Param1 to Param4 can be specified. You can
select the determination parameter from the measurement parameters of automated
measurement of waveform parameters (including delay between channels).
• You can set the upper and lower limits used to determine the true/false condition of the
measured value of the determination parameter in the range of –9.9999E+30 to 9.9999E+30.
Determination Condition and DL7400 Action When the Condition Is Met
For each determination parameter, you can select the following items.
• Determination target waveform (see “Determination Target Waveform” described above.)
• Enable or disable determination (ON/OFF).
• Which condition when the measured value exits the range defined by the upper and
lower limits of the determination parameter (OUT) or when the measured value enters
the range (IN) is considered true.
Determination Logic
You can select the AND logic or OR logic of the determination conditions of the four
determination parameters in performing the search.
AND
Condition is considered to be true when all the determination conditions of Param1 to Param4
are met.
OR
Condition is considered to be true when any of the determination conditions of Param1 to
Param4 is met.
10.10 Performing GO/NO-GO Determination Using Measured Waveform Parameters
To Next Page
