12-40 IM 701450-01E
Listing the Thumbnails of Specified Data Format

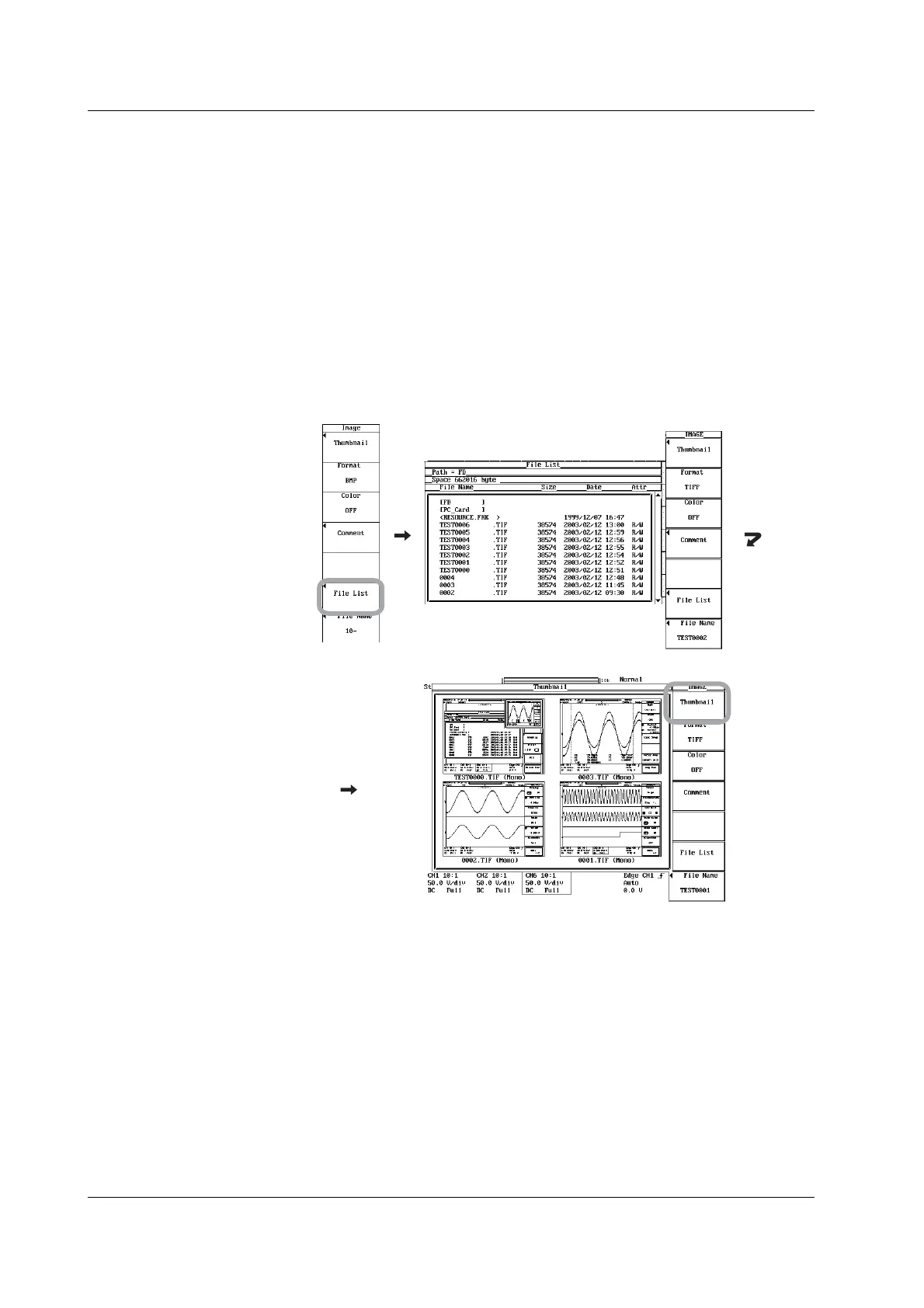

4. Press the File List soft key. The File List window appears.
5. Turn jog shuttle to select the directory containing the thumbnails you wish to
display.
6. Press ESC to close the File List window.
7. Press the Thumbnail soft key. The thumbnails of the screen image data having
the format specified in step 3 are displayed (4 thumbnails (2 × 2) in the
waveform display area).
8. If there are more than 5 thumbnails, you can scroll the screen using the jog
shuttle. To scroll the files upward, turn the jog shuttle counter-clockwise. To
scroll the files downward, turn the jog shuttle clockwise. The files scroll two files
at a time.
9. To clear the list of thumbnails, press ESC.
12.13 Displaying Thumbnails of the Saved Screen Image Data
To Next Page
