13-22 IM 701450-01E
Preparations on the PC
1. Power up the PC and log on. If the PC is running Windows NT, Windows 2000,
or Windows XP, log on as an administrator. If you do not log on as an
administrator, you may not be able to install files that are required for using the
Web server function (see the next page).

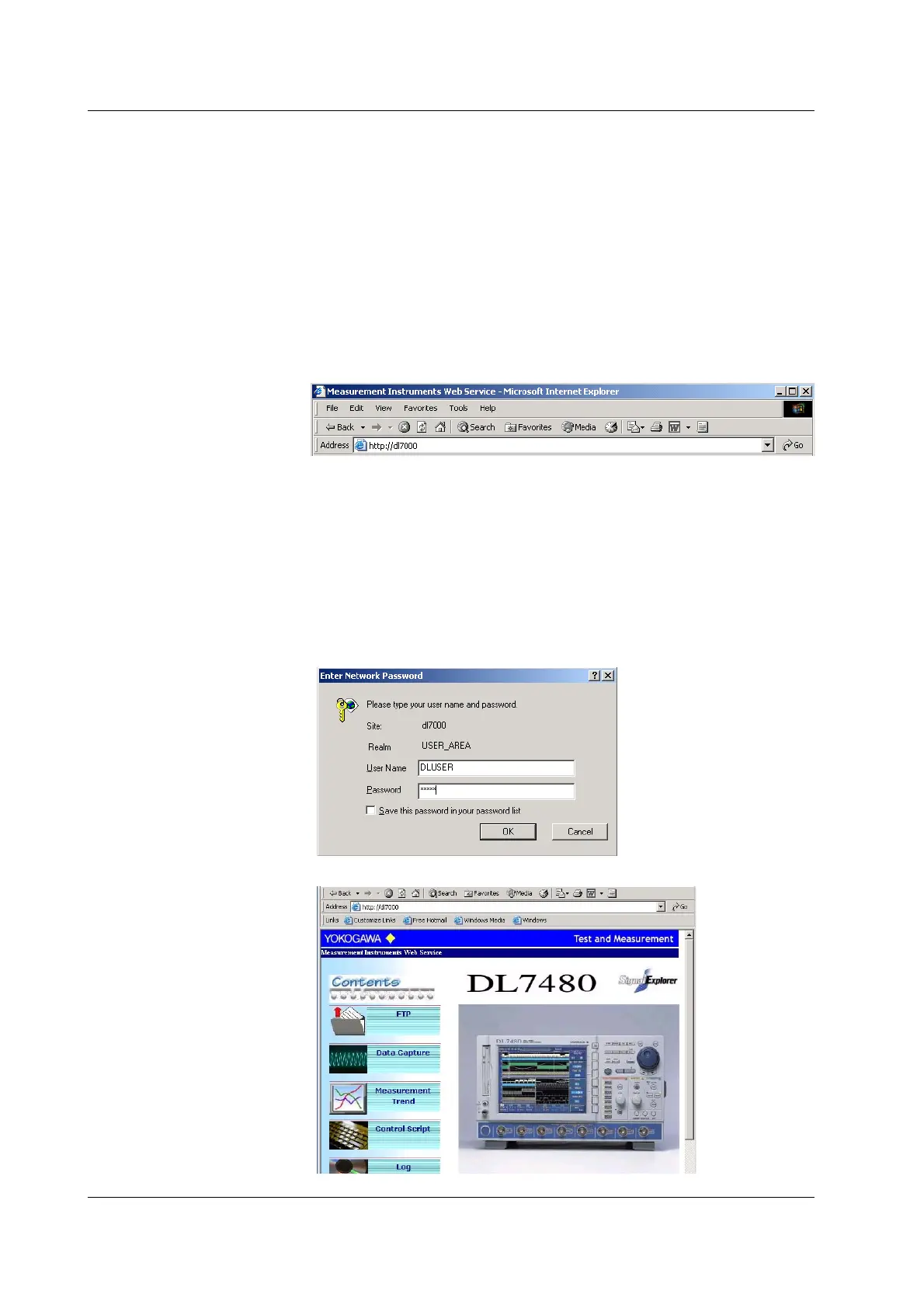

Logging into the Web Server (DL7400)
2. Start Internet Explorer.
3. Enter the IP address of the DL7400 (for example, 192.168.0.101) or the host
name of the DL7400 (for example, dl7000) if a DNS server is available on the
network.
Enter the IP address http://192.168.0.101/
Enter the host name http://dl7000/
4. Press the ENTER key on the PC keyboard. A network password entry dialog
box opens.
5. Enter the user name and password.
• Enter the user account (see section 13.6) used to access the DL7400. In the
example below, DLUSER and ***** (the password is not displayed) are
entered for the user name and password, respectively.
• If the user name of the user account is set to “anonymous” (default setting),
the password is not required.
6. Click OK. If the login to the DL7400 Web server is successful, the Web server
window appears.
Web Server Window
13.7 Using the Web Server Function
To Next Page
