13-25
IM 701450-01E
13
Ethernet Communications (Optional)
12.
Click
Custom Level

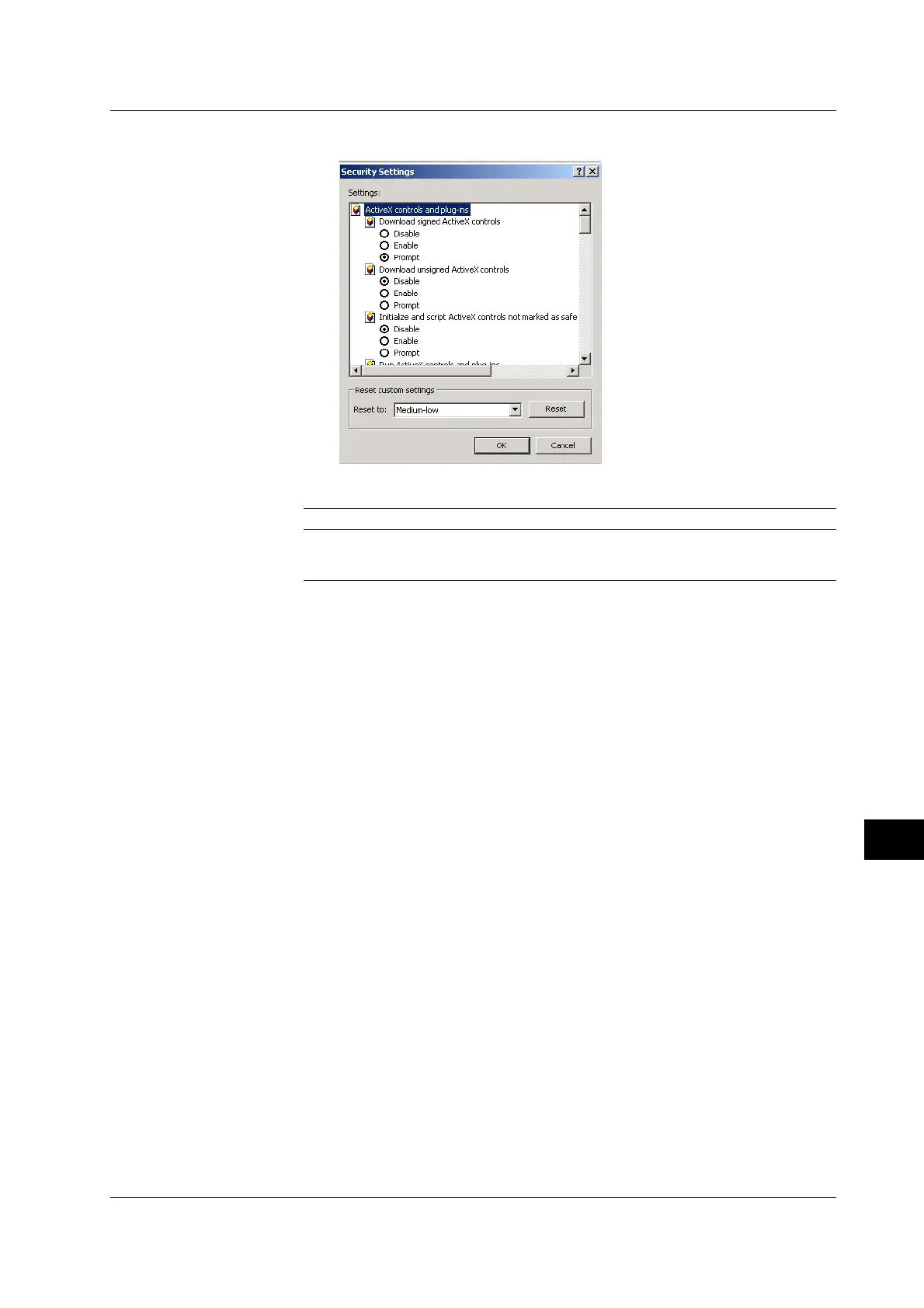

. The Security Settings dialog box opens.
13.
Enter the security settings as shown in the following table.
Item
Security Level
Run ActiveX controls and plug-ins
Enable
Script ActiveX controls marked safe for scripting
Enable
Download signed ActiveX controls
Prompt
14.
Click
OK
.
13.7 Using the Web Server Function
