13-39
IM 701450-01E
13
Ethernet Communications (Optional)
Displaying Instrument Information
Before using this function, check that the communication interface of the DL7400 is set
to Network (see page 13-21).

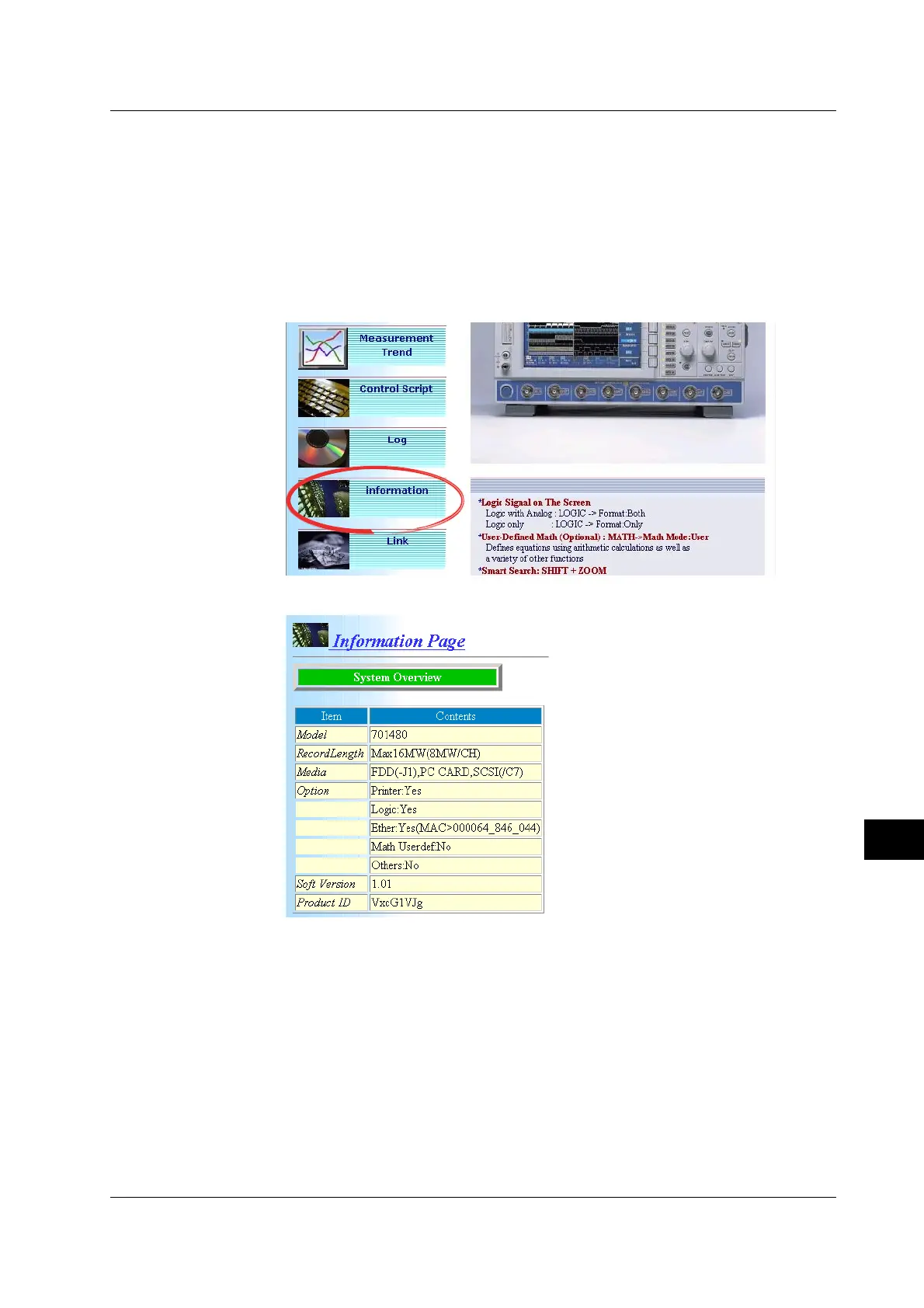

Click the Information icon on the Web server window. The Information window that
displays the DL7400 model (Model), the maximum record length available (Record
Length), the storage media type (Media), the presence of options (Option), ROM version
(firmware version, software version, and product ID), and other information appears.
Web Server Window
Information Window
13.7 Using the Web Server Function
To Next Page
