Log Display Example

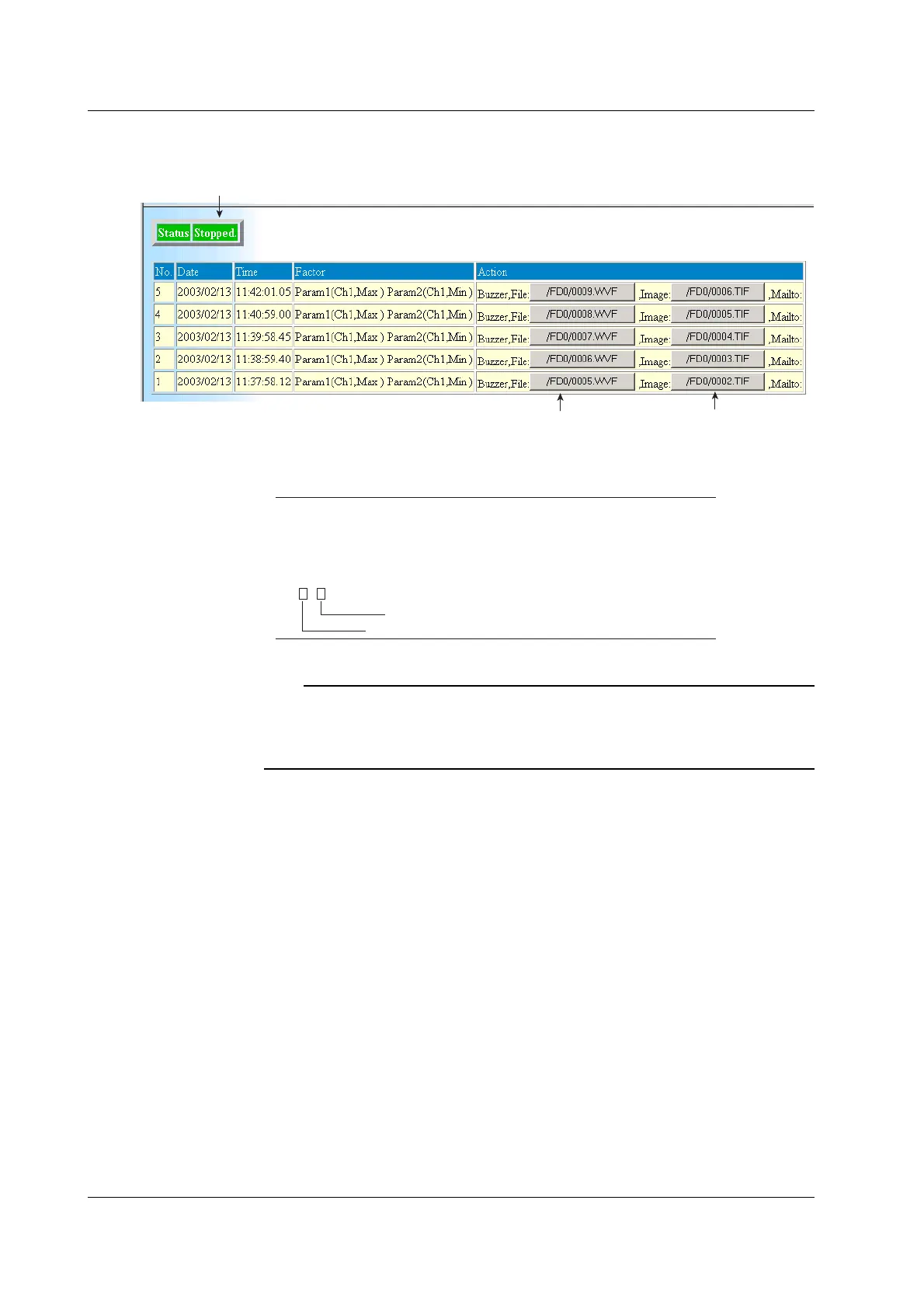

The following figure shows an example displaying the log of GO/NO-GO determination.
Displays “Executing...” while GO/NO-GO determination is in progress or when action-on-trigger is in execution.
If screen image data or waveform data files are being saved in the GO/NO-GO determination or
action-on-trigger, the files can be saved on the PC from the Log display window.
The drive is indicated in the log as follows.
CA0 PC Card
FD0 Floppy disk
ZP0 Zip disk
SC5 SCSI device with the ID number set to 5*
SC5-1 Partition 1 of a SCSI device whose ID number is 5*
ND0 Network drive (when the Ethernet interface option is installed)
US - USB strage
Partition number (or LUN (Logical Unit Number))
Address number
* When a SCSI device whose ID number is 5 is connected.
Note
• When the DL7400 is printing or operating files (file operation from the front panel key or file
transfer using the FTP server function), files cannot be saved on the PC. In addition, other
Web server functions cannot be used while saving files.
• Files on the network drive (NetWork) cannot be saved to the PC.
