3/35 Sample Loader TS Guide 9140234B-June 1997
VERIFICATION PROCEDURES
VP - 8.1 Needle Sensors Check/Adjustment
3 - 124
3
Search
Book TOC
Go Back

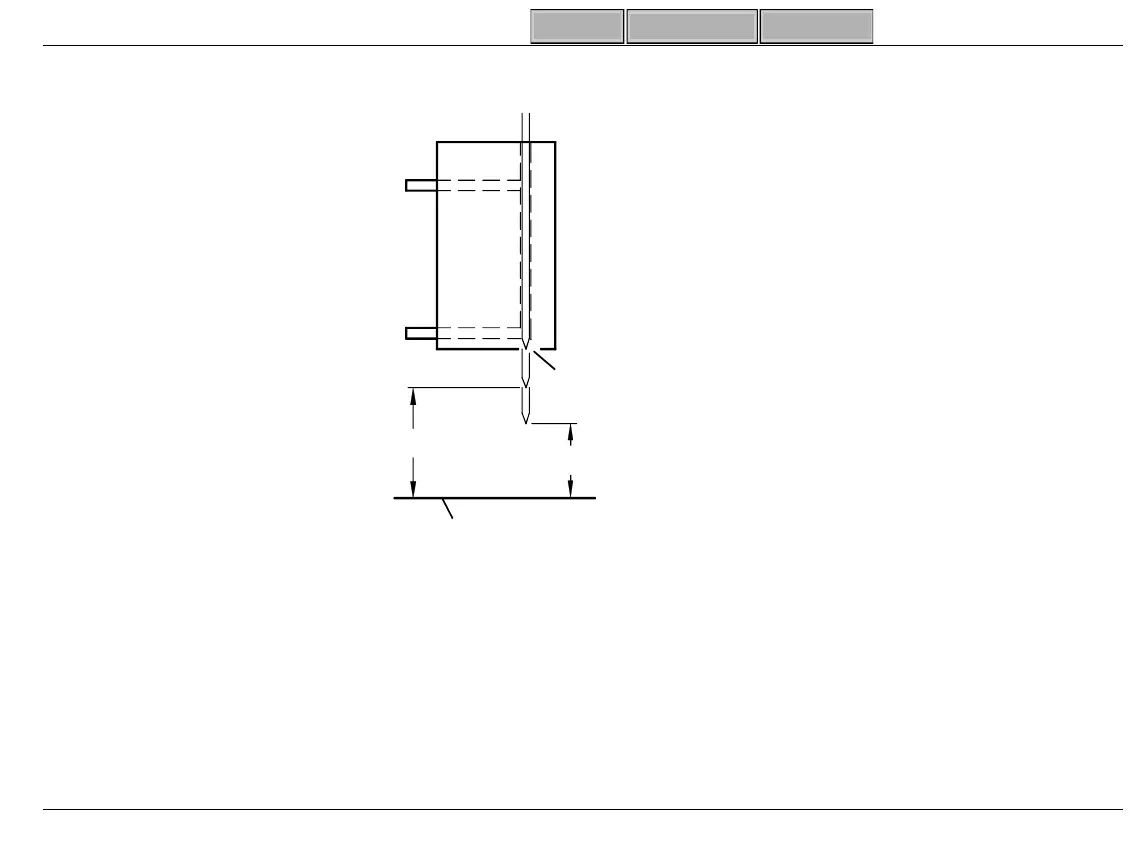

Figure 3-66 Sample Needle Home and Limit Clearances
9. Press (
N
↓
) key to move Needle to the maximum DOWN position.
10.Verify distance between needle tip and Platen floor (Fi
g
ure 3-66).
11.If check fails, adjust sensors.
--- END ---
F and G Home =
Flush or Recessed
to .040 in.
F
Limit = 0.5" (12.7mm)
G Limit=
1.0"-1.1"
(25.4mm-27.9mm)
Floor of Platen
SL-109B
F and G
LOADER
