This task uses a step signal to stimulate the control system. The Time Markers
measure the critical time domain characteristics of the control system. Delay time and
settling time are relative to the rising edge of the input signal. Selecting an accurate
start time is critical to computing accurate values.

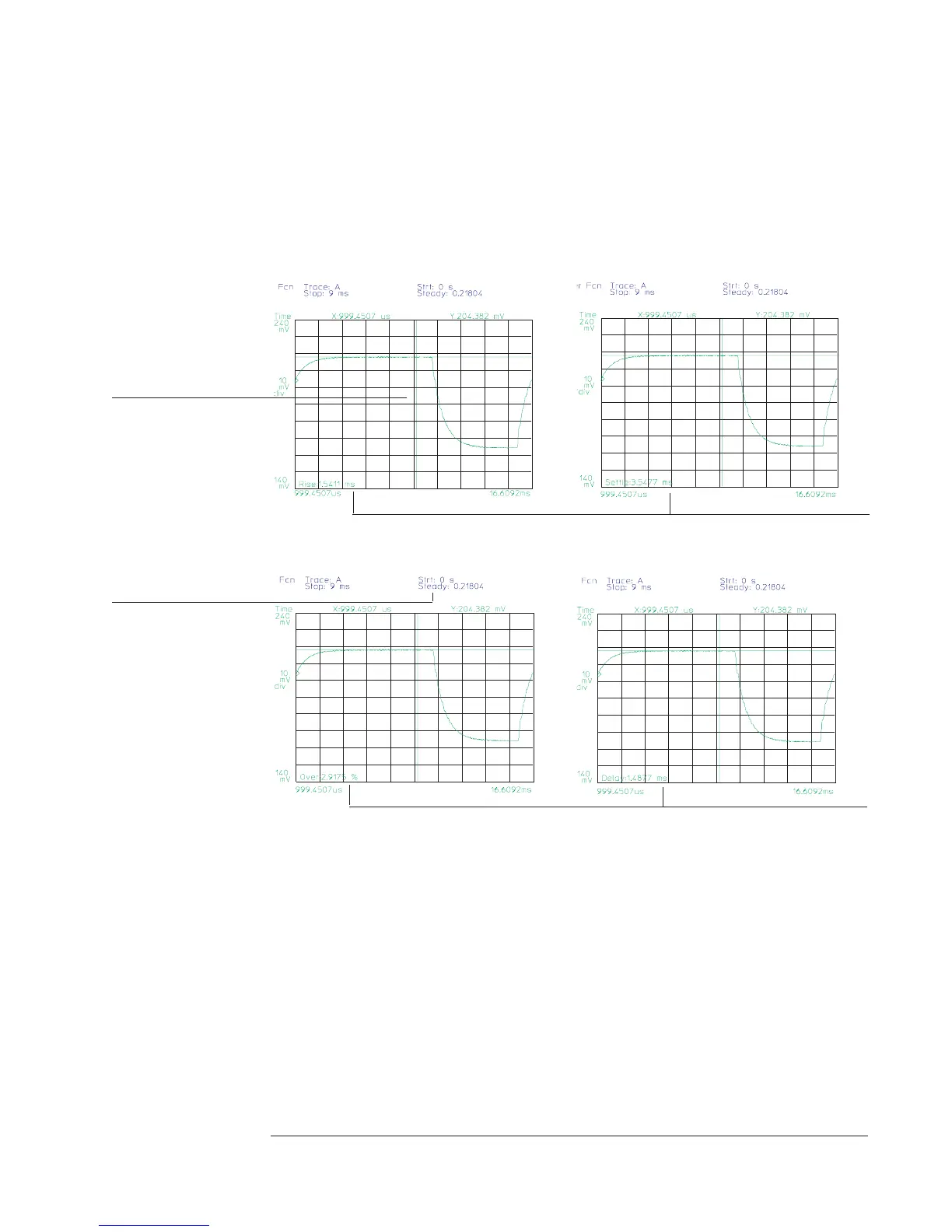

Steady-state line on
display
Steady-state value
Time parameter value
location
Time parameter value
location
