To enable global screen elements
1 If you want to display the tachometer readout, press [
Disp Format
][
MORE
], then press
[
TACH DISP ON OFF
] to highlight ON.
2 If you want to display X- and Y-axis annotation, press [
Disp Format
][
MORE
][
MORE
],
then press [
ANNOTATN ON OFF
] to highlight ON.
The tachometer readout shows you the frequency of the signal connected to the TACH
input on the analyzer’s rear panel. It is always on for order-mode measurements and
measurements that use rpm-step arming, regardless of the [
TACH DISP ON OFF
] setting.

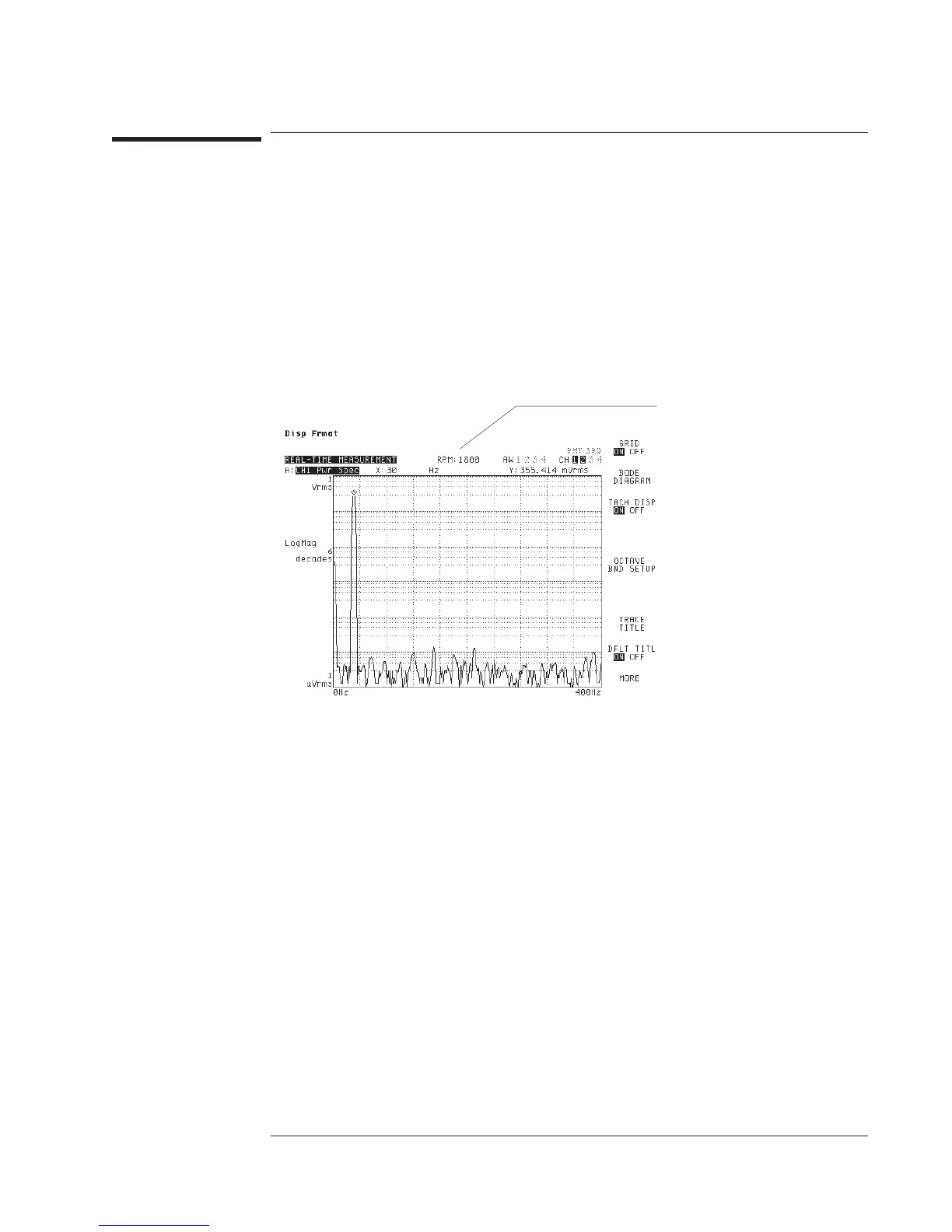

The shaded area shows the location of the X-
and Y-axis annotation.
Tachometer readout.
Agilent 35670A
Operator's Guide Formatting the Display
9-3
