To delete a limit segment
1 Activate the trace whose limit segment you want to delete.
2 Press [
Analys
][
LIMIT TEST
].
3 If you want to delete a segment from the upper limit, press [
DEFINE UPPER LIM
].
4 If you want to delete a segment from the lower limit[
DEFINE LOWER LIM
].
5 Press [
MOVE MKR HORIZNTAL
], then turn the knob to align the limit marker with the
segment you want to delete.
6 Press [
DELETE SEGMENT
].
After you finish drawing a limit, you may sometimes decide that a particular segment
should be redrawn. To do this, you can delete the segment as described in this task,
and then redraw the segment as described in “To draw a limit.” If you decide that the
entire limit should be redrawn, you can press [
DELETE ALL
][
CONFIRM DELETE
]in
step 6, and then redraw all the segments.

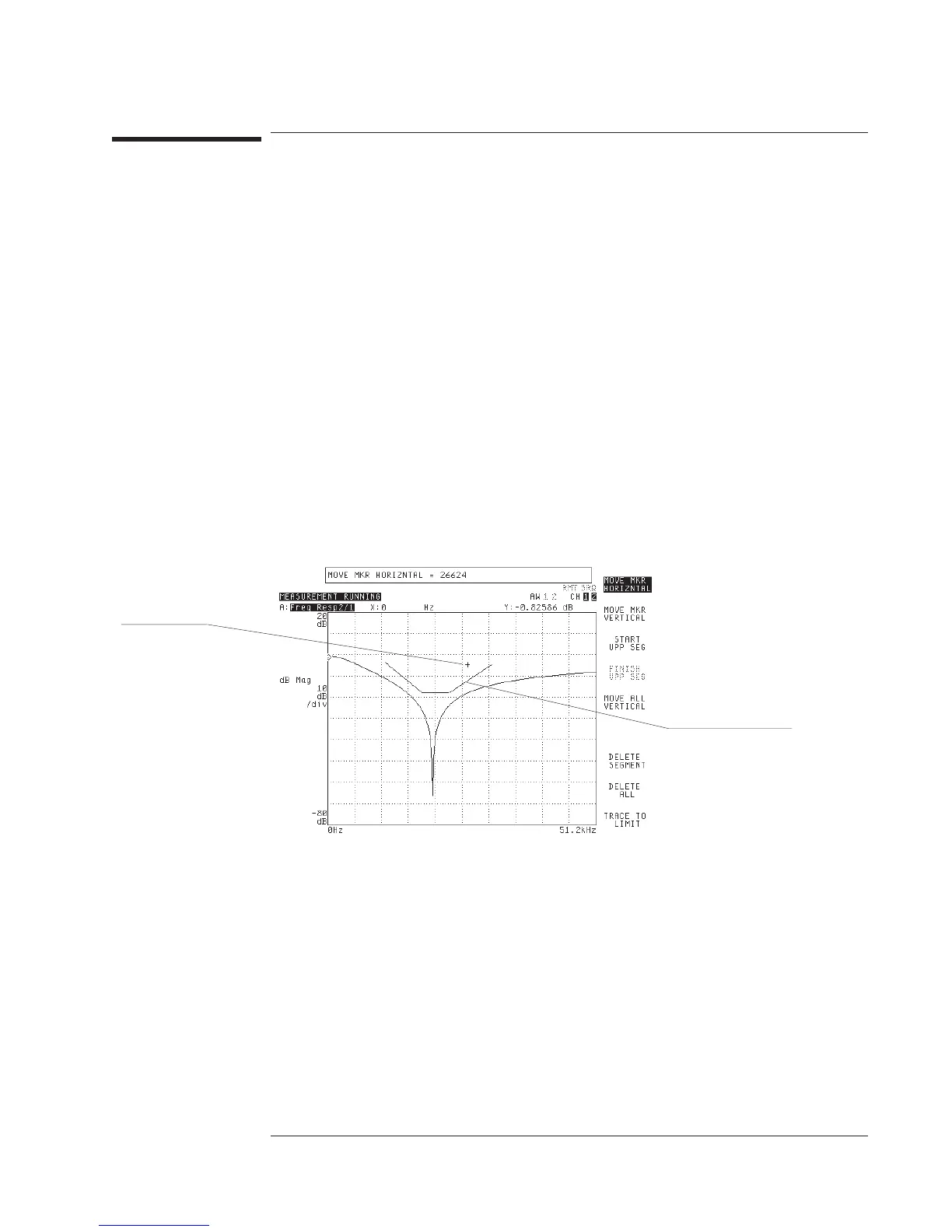

Limit marker.
This segment will be
deleted.
Agilent 35670A
Operator's Guide Limit Testing
17-3
