To preview the time record
The Agilent 35670A’s preview lets you examine each time record and decide whether
or not to include the data in an averaged measurement. This task performs a driving
point measurement with manual preview.
1 Initialize the analyzer.
Press [
Preset
][
DO PRESET
].
Press [
Meas Data
][
FREQ RESP 2/1
].
Press [
Active Trace
][
B
].
Press [
Meas Data
].
Press [
CHANNEL 1 2 3 4
] to highlight 1.
Press [
TIME CHANNEL 1
].

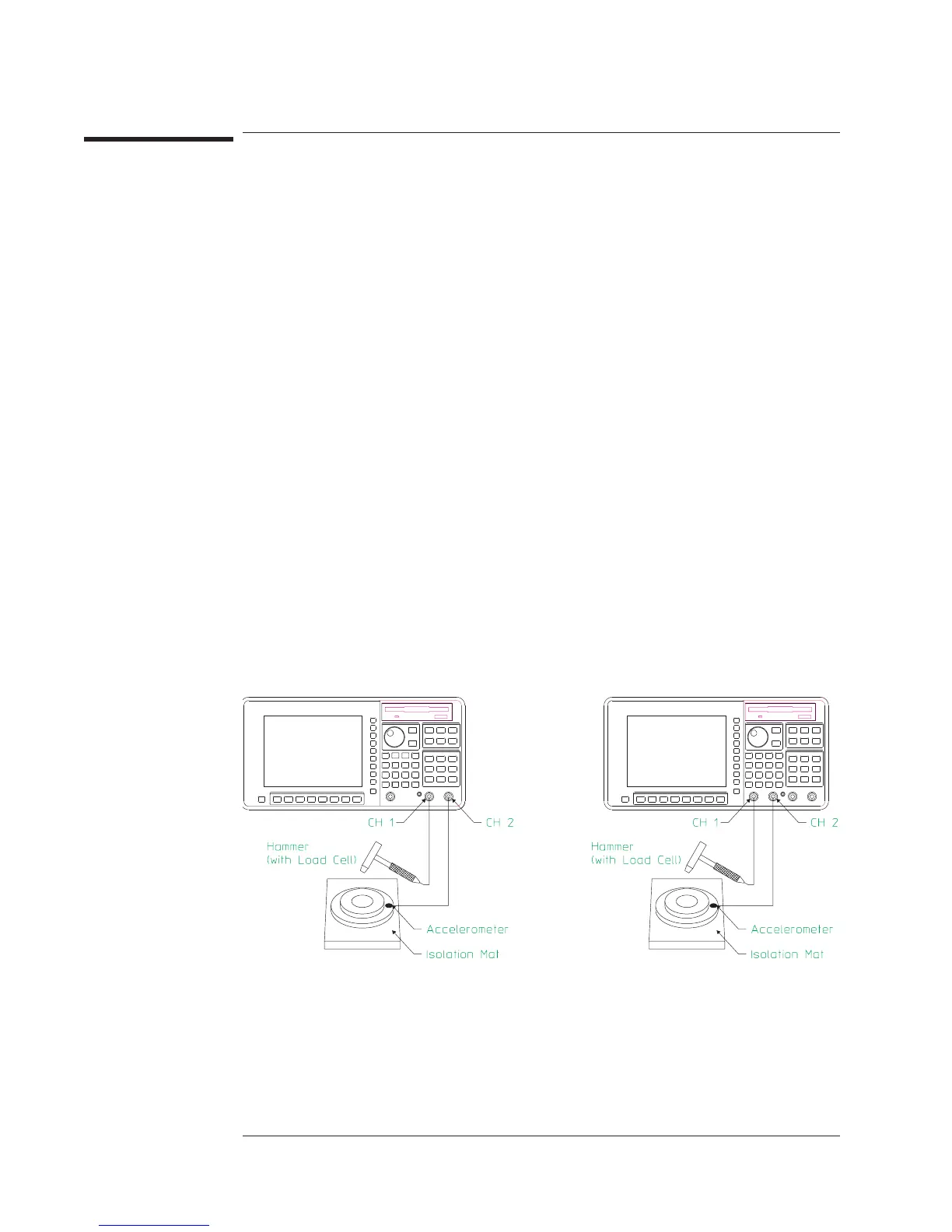

2 Connect the device-under-test (DUT) as shown in the illustration below.
3 Specify the measurement parameters.
Press [
Freq
][
START
] <number> <unit>, then press [
STOP
] <number> <unit>.
Press [
Input
].
Press [
CHANNEL 1 2 3 4
] to highlight 1.
Press [
CH1 FIXED RANGE
] <number> <unit>.
Press [
CHANNEL 1 2 3 4
] to highlight 2.
Press [
CH2 FIXED RANGE
] <number> <unit>.
Press [
Window
][
FORCE EXPO
].
Press [
FORC EXPO SETUP
].
Press [
CHANNEL 1 FORC EXPO
] to highlight FORC.
Press [
FORCE WIDTH
] <number> <unit>.
Press [
CHANNEL 2 FORC EXPO
] to highlight EXPO.
Press [
EXPO DECAY
] <number> <unit>.
Option AY6
Agilent 35670A
Measuring Structures Operator's Guide
2-14
