To view unwrapped phase of a driving point measurement
1 Measure a driving point measurement.
2 Press [
Active Trace
][
B
].
Press [
Trace Coord
][
UNWRAPPED PHASE
].
3 Press [
Scale
][
AUTOSCALE ON OFF
] to highlight ON.

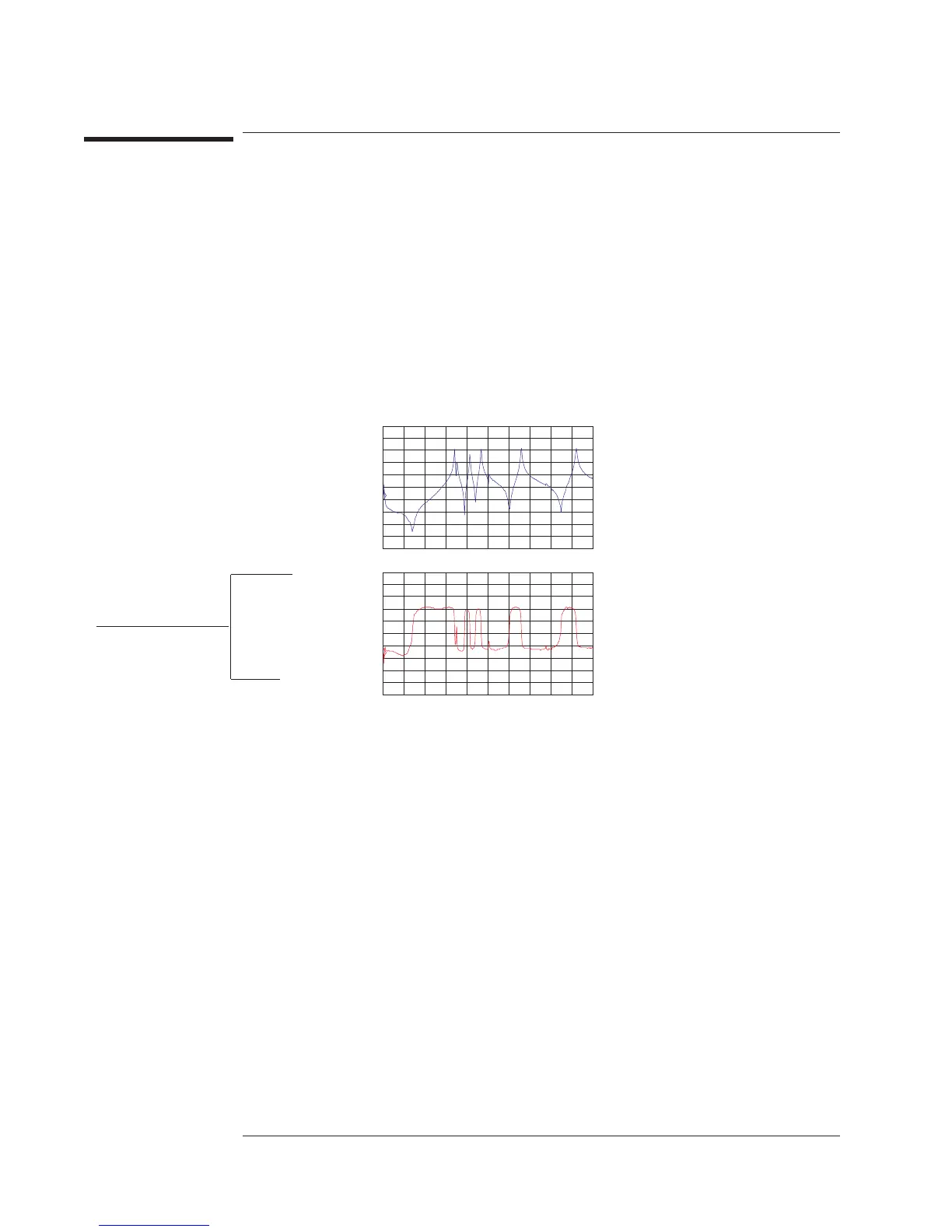

0Hz 3.2kHzAVG: 10
A: Freq Resp2/1 X:0 Hz Y:3.49835dB
60
dB
-40
dB
dBMag
10
dB
/div
X:0 Hz Y:-180 deg
B: Freq Resp2/1
150
deg
-350
deg
Phase
50
deg
/div
0Hz 3.2kHzAVG: 10
Trac Coord
[FFT]
A: dBMag B: Phase
C: Real D: Real
Values indicate
unwrapped phase.
Agilent 35670A
Measuring Structures Operator's Guide
2-12
