To match Y-axis scaling of another trace
1 Activate the trace (or traces) you want to scale.
2 Press [
Scale
][
MATCHYSCALE
].
3 Press the [
TO TRACE x
] corresponding to the trace whose Y-axis scaling you want to
use in the active trace(s).
This is a convenient way to set the same Y-axis scaling for multiple traces. Remember
that the analyzer changes the scale only if the coordinate systems are compatible.

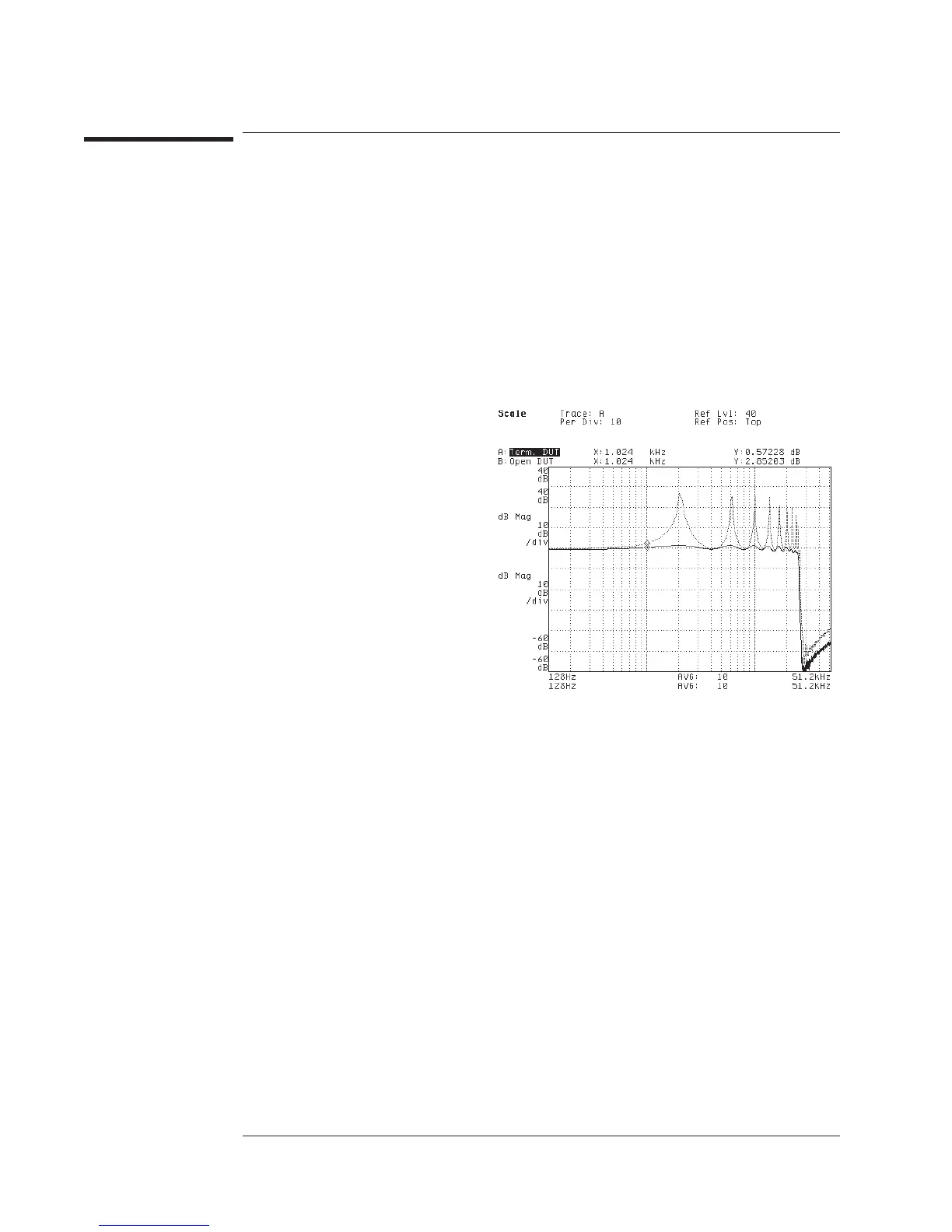

Comparing these two traces is more difficult with a
mismatched Y-axis.
Matching the Y-axes makes it easier to compare these
two traces.
Agilent 35670A
Scaling the Display Operator's Guide
10-6
