To enable Y-axis autoscaling
1 Activate the trace you want to scale.
2 Press [
Scale
], then press [
AUTOSCALE ON OFF
] to highlight ON.
When autoscaling is on, the analyzer rescales the Y-axis each time a trace is updated
to optimize the display of that trace. Note that autoscaling changes the values of
several softkeys: [
TOP REFERENCE
], [
CENTER REFERENCE
], [
BOTTOM REFERENCE
],
and [
Y PER DIV (DECADES)
]. For more information, see “To scale the Y-axis with
Reference and Y Per Div softkeys.”

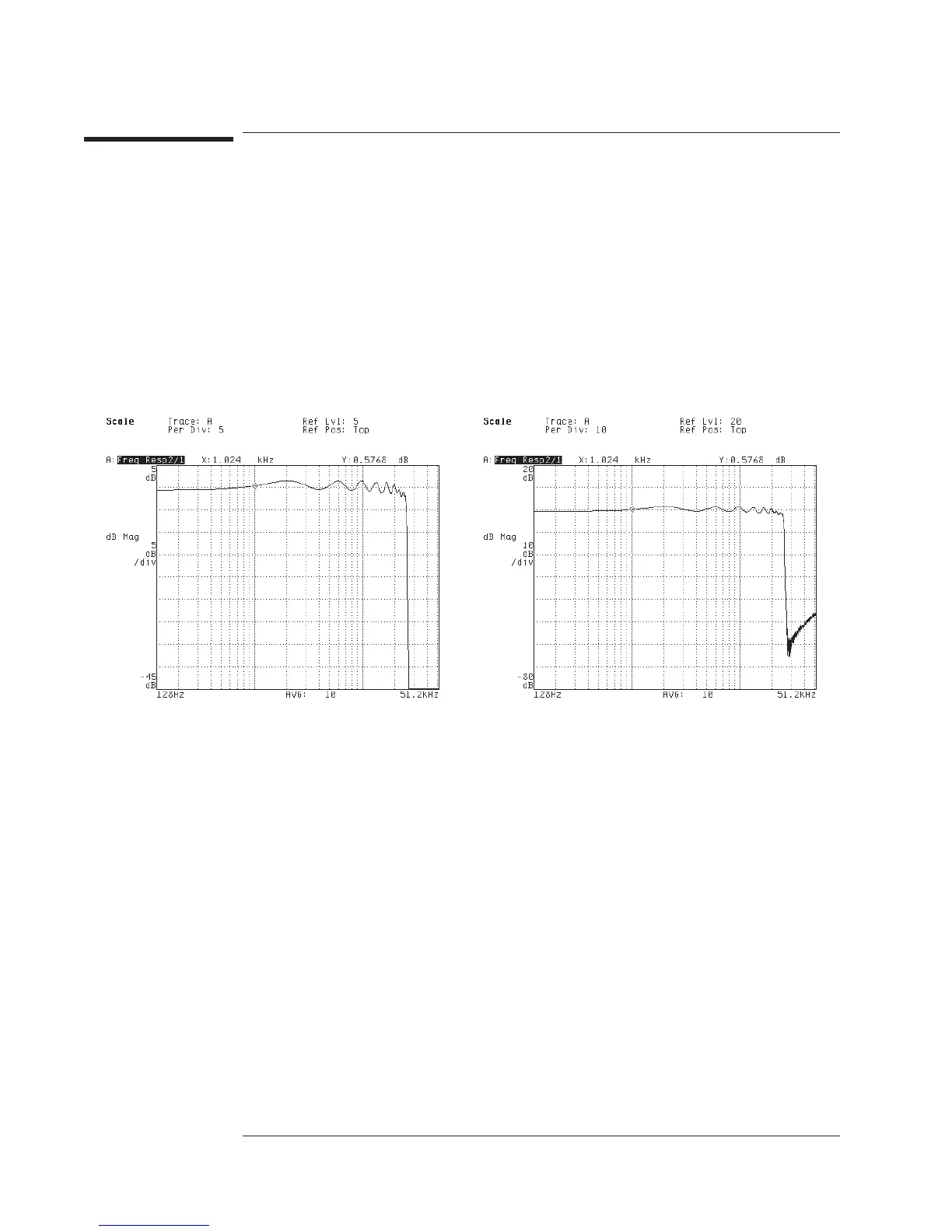

Before autoscaling.
After autoscaling.
