To measure an order track
This task shows you how to use calibrated transducers to measure order tracks. Before
you complete this task, however, you may want to measure order spectra to help you
identify the orders you want to track. Both of these order-mode measurements are
possible only if your analyzer is equipped with Option 1D0.
1 Initialize the analyzer.
Press [
Preset
][
DO PRESET
].
Set up your tachometer parameters, as described in “To characterize a tachometer
signal, ” but ignore that task’s instruction to preset the analyzer.
Calibrate your transducers, as described in “To calibrate a transducer,” but ignore that
task’s instruction to preset the analyzer.
Press [
Inst Mode
][
ORDER ANALYSIS
].
Press [
CHANNELS 1 2
] (or [
CHANNELS 1 2 4
]) to highlight the number of channels you
want activated.
Press [
Freq
], then press [
TRACK ON OFF
] to highlight ON.

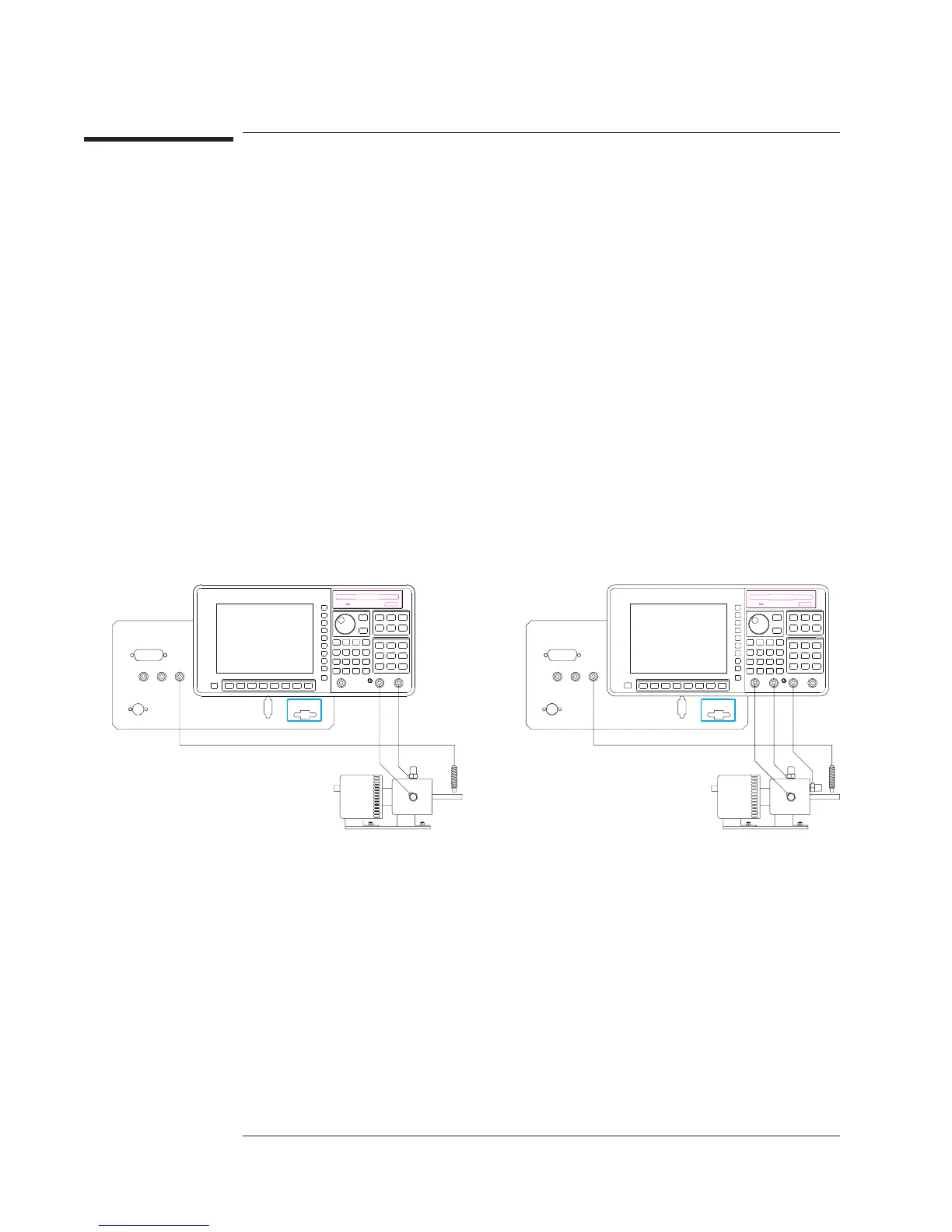

2 Secure each calibrated transducer to the device-under-test (DUT).
Option AY6
Agilent 35670A
Measuring Rotating Machinery Operator's Guide
1-14
