Agilent Technologies 35670A

To arrange traces on the screen
1 Press [
Disp Format
].
2 If you want to display a single trace, press [
SINGLE
].
3 If you want to display two traces at once, press one of the following softkeys:
[
SINGLE FRNT/BACK
], [
UPPER/LOWER
], or [
UPPER/BIG LOWER
].
4 If you want to display all four traces at once, press one of the following softkeys:
[
UPPR/LOWR FRNT/BACK
]or[
QUAD
].
When you select one of the two-trace formats, the selection you make under
[
Active Trace
] determines not only which traces are active, but also which pair of
traces is displayed. If you press [
A
], [
B
], or [
AB
], the analyzer displays traces A and
B. If you press [
C
], [
D
], or [
CD
] it displays traces C and D.
When you select [
SINGLE FRNT/BACK
], the selected pair of traces is displayed in the
same trace area. Each element of the trace annotation is stacked: A on top, B on the
bottom; or C on top, D on the bottom. When you select [
UPPR/LOWR FRNT/BACK
],
traces A and B are displayed in the upper trace area, and traces C and D are displayed
in the lower trace area. Annotation in each area is stacked.

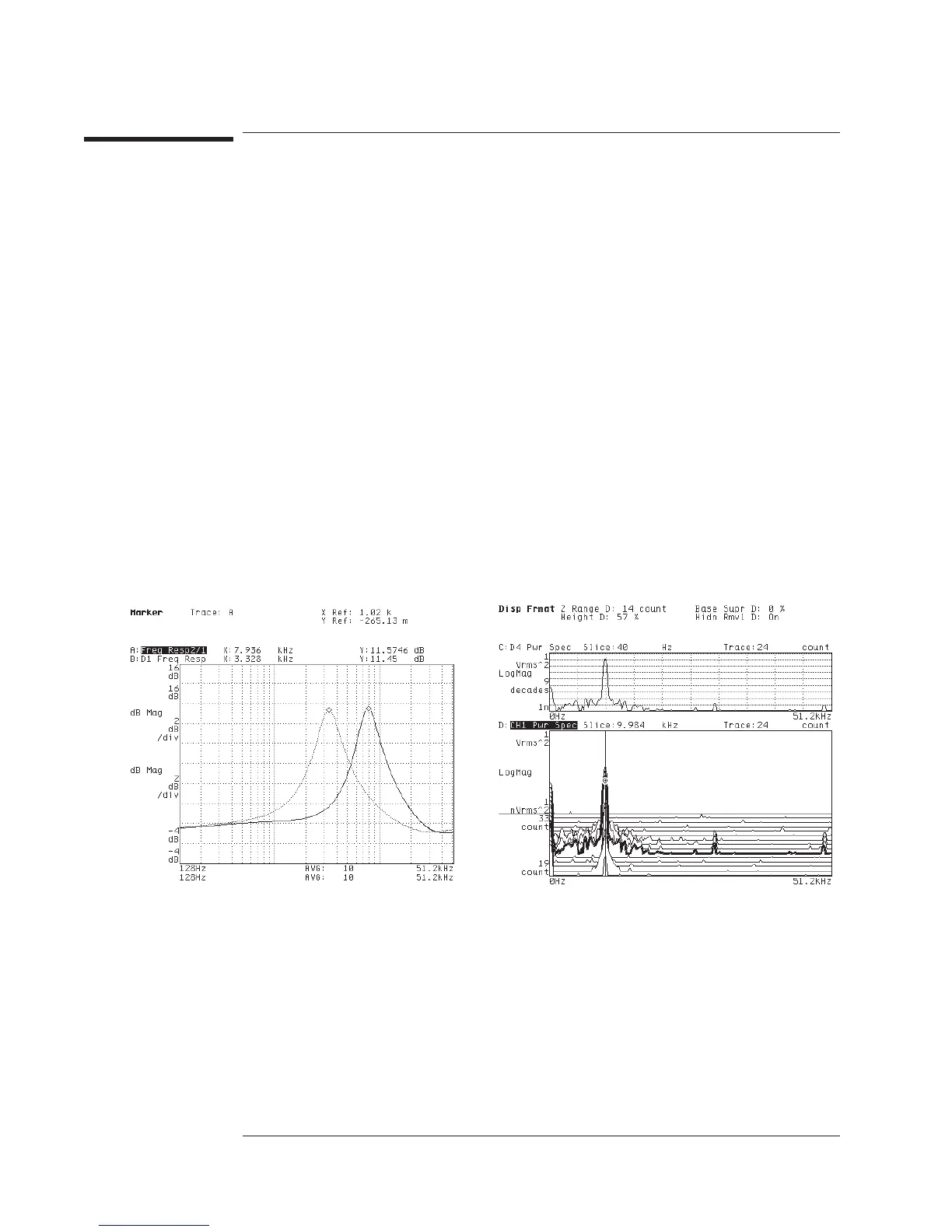

[SINGLE FRNT/BACK] is good for comparing two traces.
[UPPER/BIG LOWER] is good for waterfall displays.
Agilent 35670A
Formatting the Display Operator's Guide
9-2
