To create a ramp signal
This task builds a ramp waveform.
1 Initialize the analyzer.
Press [
Preset
][
DO PRESET
].

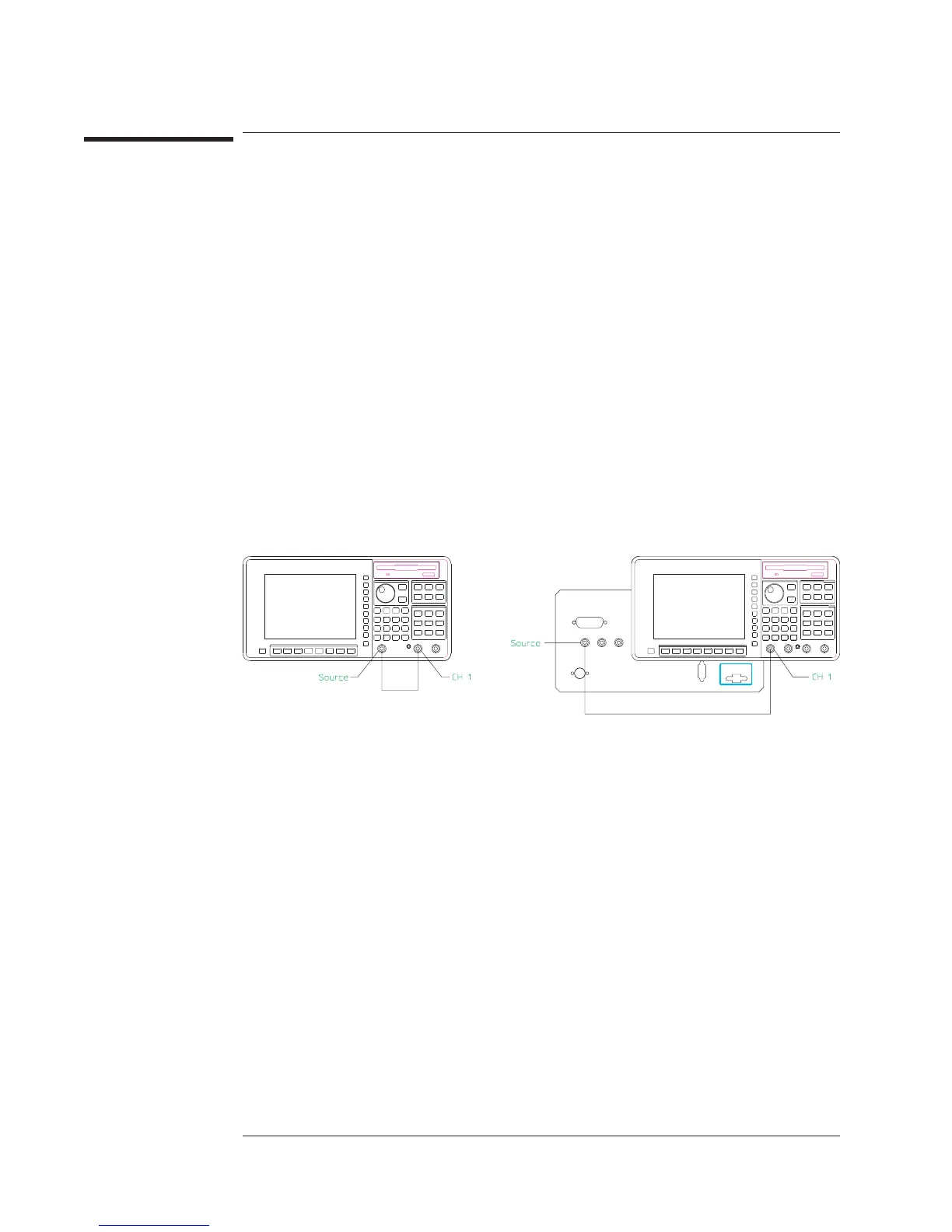

2 Connect the source to the Channel 1 input as shown in the illustration.
Press [
Source
][
LEVEL
] <number> <unit>.
Press [
SOURCE ON OFF
] to highlight ON.
3 Display a waveform.
Press [
Freq
][
RECORD LENGTH
], then press [
1
][
5
][
mS
].
Press [
Meas Data
][
TIME CHANNEL 1
].
Press [
Pause-Cont
].
Press [
Save/Recall
][
SAVE DATA
][
SAVE TRACE
][
INTO D1
].
Agilent 35670A
The Arbitrary Source Option 1D4 Operator's Guide
6-6
