To recall a trace
1 Press [
Save/Recall
], then press [
CATALOG ON OFF
] to highlight ON.
2 Turn the knob to highlight the trace file you want to recall.
3 If you want to recall a trace with its original scaling, press [
RECALL DATA
]
[
RCL TRACE AND SCALE
].
4 If you want to recall a trace but retain the scaling of the data register you will use,
press [
RECALL DATA
][
RCL TRACE
].
5 Press the [
FROM FILE INTO Dx
] softkey corresponding to the data register you want to
use, then press [
ENTER
].
6 Press [
Active Trace
], then press the softkey corresponding to the trace you want to
replace: [
A
], [
B
], [
C
], or [
D
].
7 Press [
MEAS DATA
][
MORE CHOICES
][
DATA REGISTER
], then press the [
Dx
]softkey
corresponding to the data register you specified in step 5.
A trace that is recalled from a file is always recalled into a data register. Steps 4 and 5
allow you to view the recalled trace by selecting the contents of that register for
display. If a trace was saved to a data register instead of a file, you only need to
complete steps 6 and 7 to “recall” that trace.
Although you can recall a trace file into any data register, it is best not to recall into
D6-D8 if you use the optional curve fit and synthesis features. These registers are
used during curve fitting and synthesis operations.

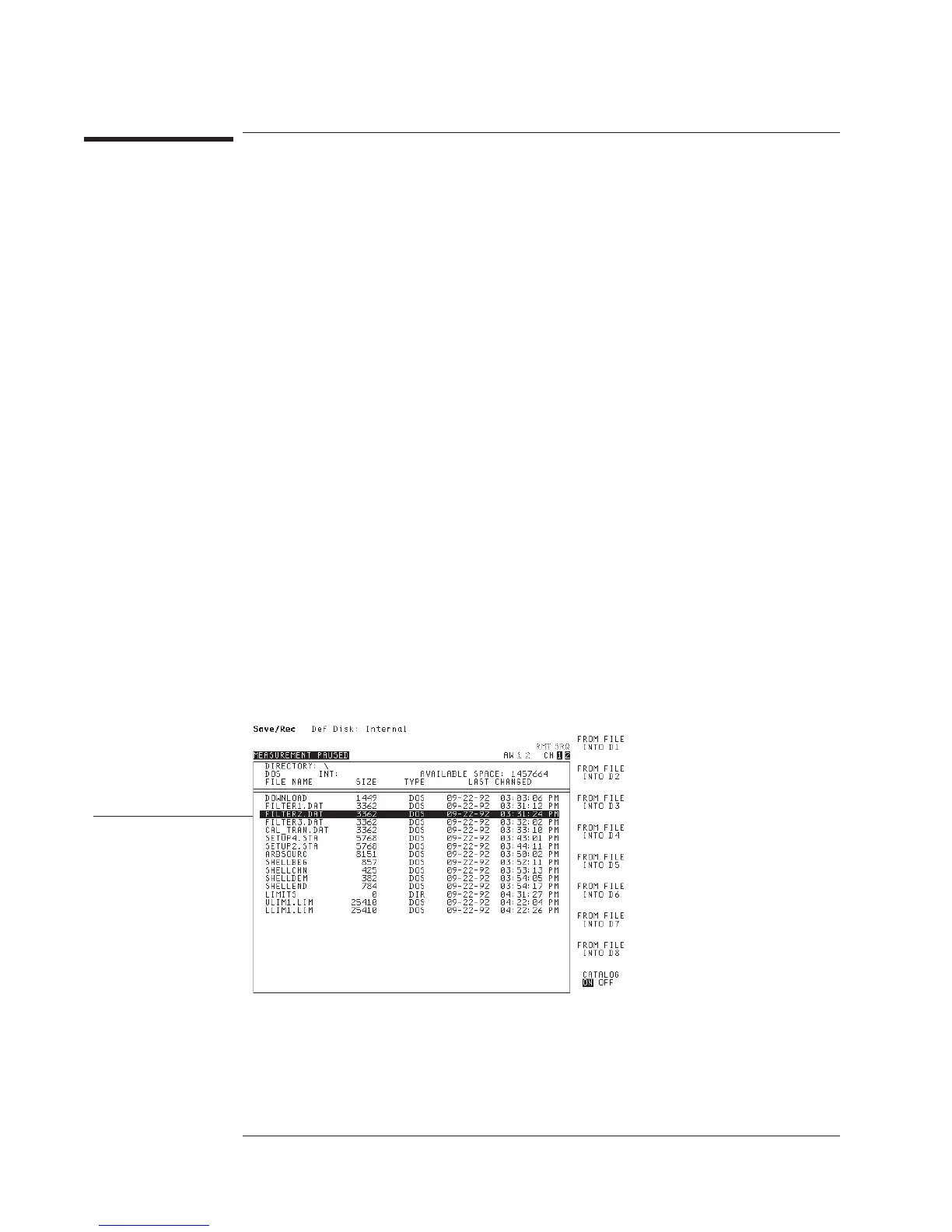

The analyzer recalls the
highlighted trace file into the
specified data register.
Agilent 35670A
Managing Files and Disks Operator's Guide
13-10
