Agilent Technologies 35670A User Manual

To create a profiled chirp waveform
This task builds a profiled chirp waveform by using the analyzer’s mathematics
capability.
1 Initialize the analyzer.
Press [
Preset
][
DO PRESET
].

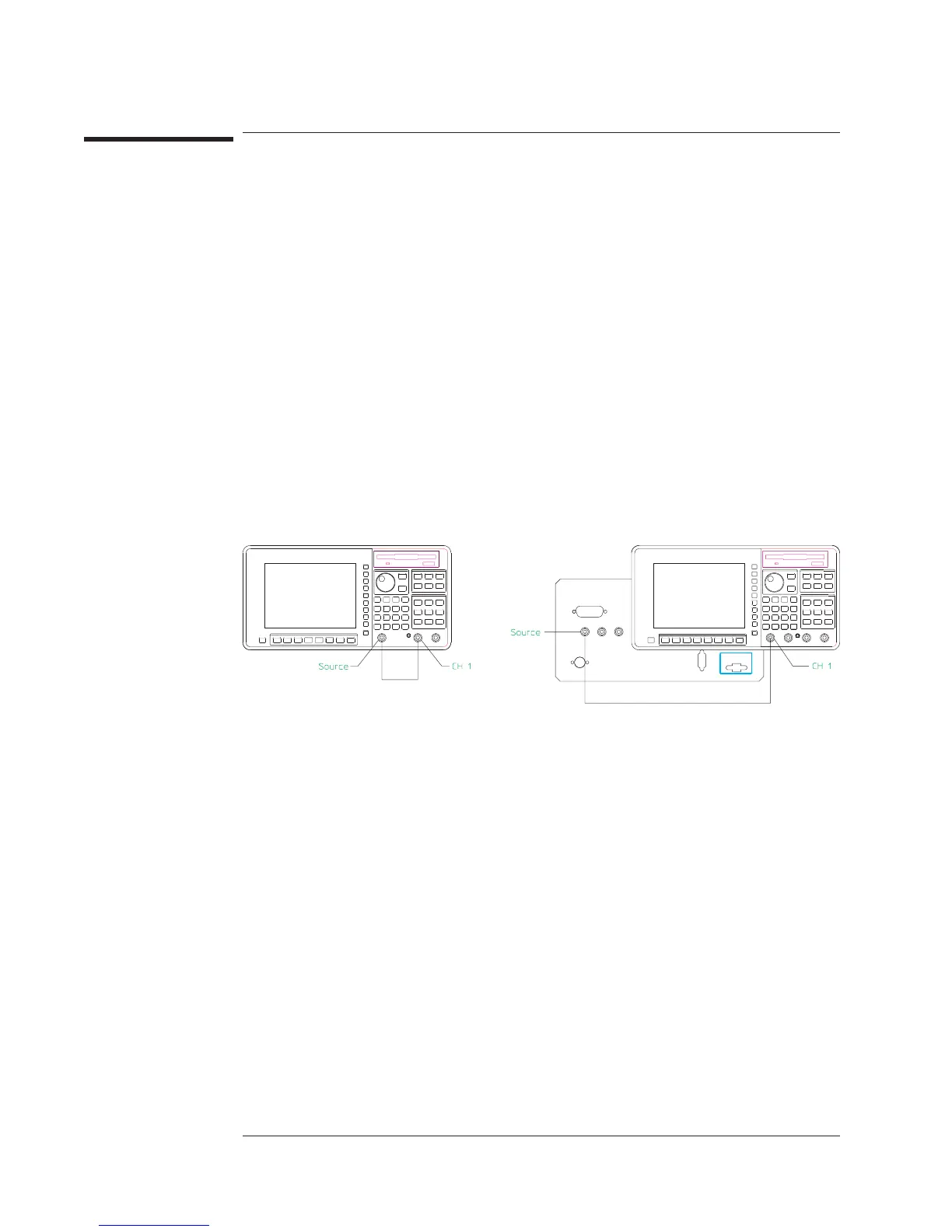

2 Connect the source to the Channel 1 input as shown in the illustration.
3 Build a ramp signal and store it in data register D1. See the previous task.
4 Display a periodic chirp waveform.
Press [
Meas Data
][
TIME CHANNEL 1
].
press [
Source
][
PERIODIC CHIRP
][
LEVEL
][
1
][
Vpk
].
Press [
SOURCE ON OFF
] to highlight ON.
Agilent 35670A
The Arbitrary Source Option 1D4 Operator's Guide
6-8
