210 Chapter 4

Calibration

Power Calibration

Preparing to control the power meter

When acquiring power calibration data, the power meter is controlled via GPIB from the

E5070B/E5071B.

To control the power meter from the E5070B/E5071B, connect the USB port of the

E5070B/E5071B and the GPIB connector of the power meter through the USB/GPIB

interface as shown in

Figure 4-61 and set the GPIB address of the connected power meter

with the E5070B/E5071B.

NOTE The USB/GPIB interface must be ready to use. For more information, see “Setting the

GPIB” on page 426.

Setting GPIB address of the power meter

Use the following procedure to set the GPIB address of the power meter:

Step 1. Press .

Step 2. Press Misc Setup.

Step 3. Press GPIB Setup.

Step 4. Press Power Meter Address.

Step 5. Enter the GPIB address of the power meter you are using.

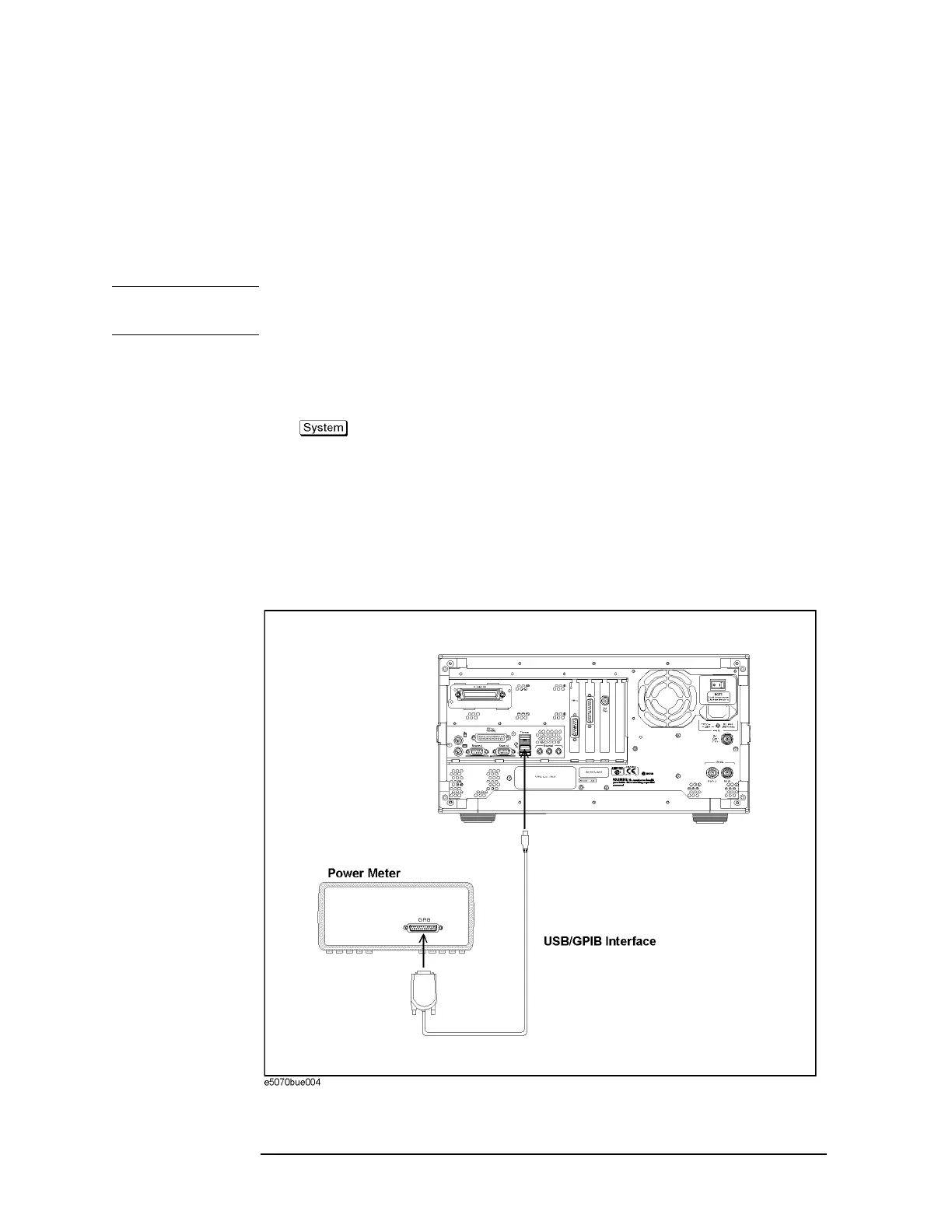

Figure 4-61 Connection between power meter and E5070B/E5071B
