240 Chapter 4

Calibration

Scalar-Mixer Calibration

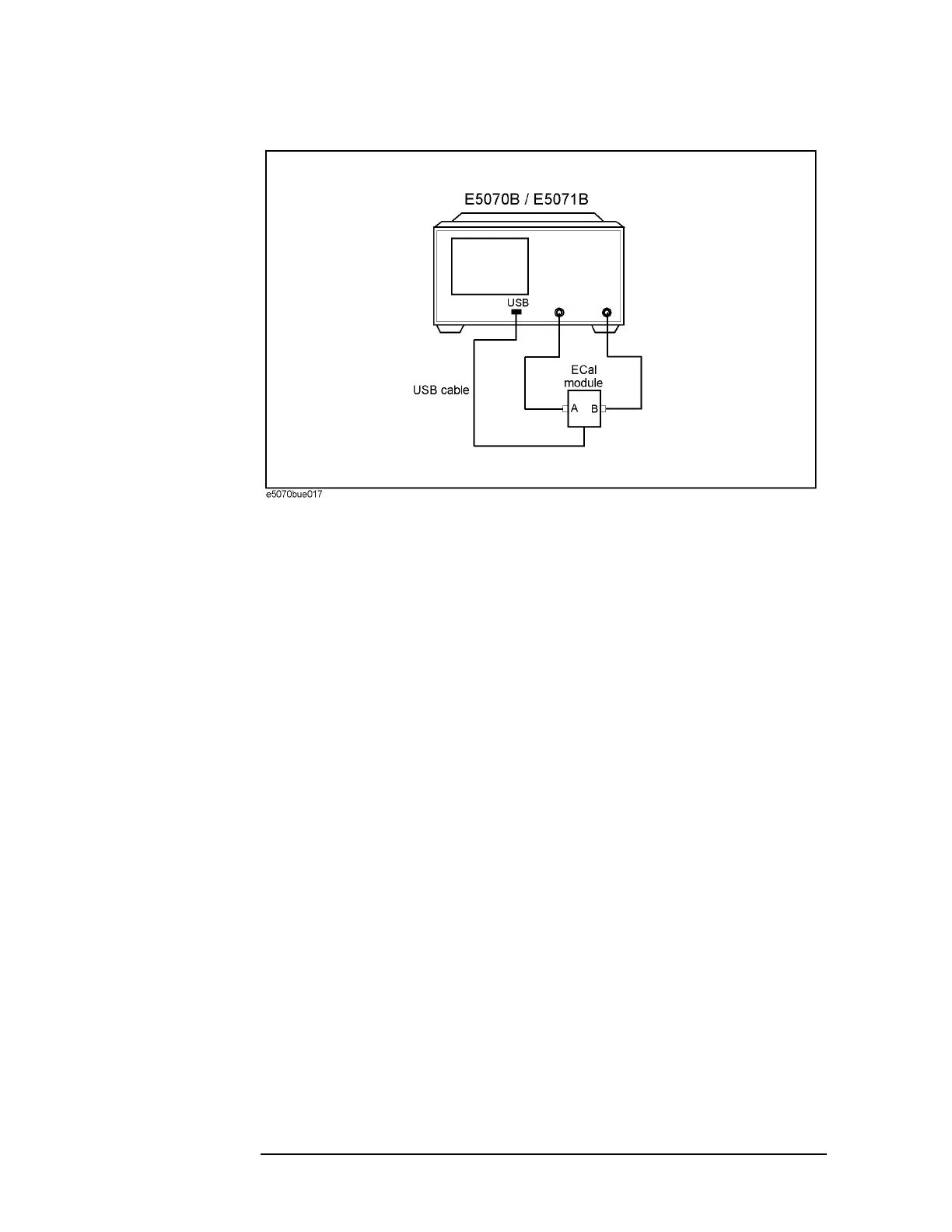

Figure 4-79 Connection of ECal Module

Step 10. The above steps allow the calibration coefficient to be calculated, turning on the error

correction function automatically.
